Initial Filling Of Battery - AR54.10-P-0001Z
Model All (Light transporter)

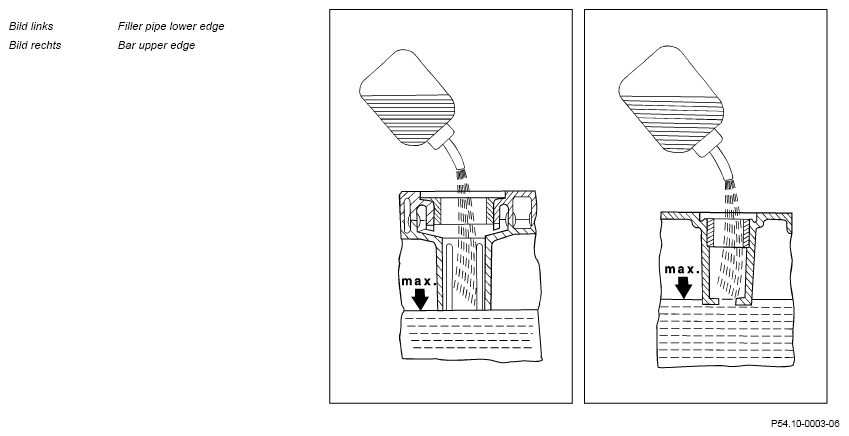

Maximum fluid level
| Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Topical note | Notes on battery | AH54.10-P-0001-01A | |
| Filling | |||
| 1 | Fill battery acid with a filling device up to inner fluid level marking. |
