Retrofit Mirror Glass For Blind Spot Assist - AN54.71-S-1001-06E

Model 447

With Code J0V (Pre-installation for Blind Spot Assist)

The following steps are shown on the left side of the vehicle and must be accomplished analogously on the right side of the vehicle.

Courtesy of MERCEDES-BENZ USA

Shown on model 447.8

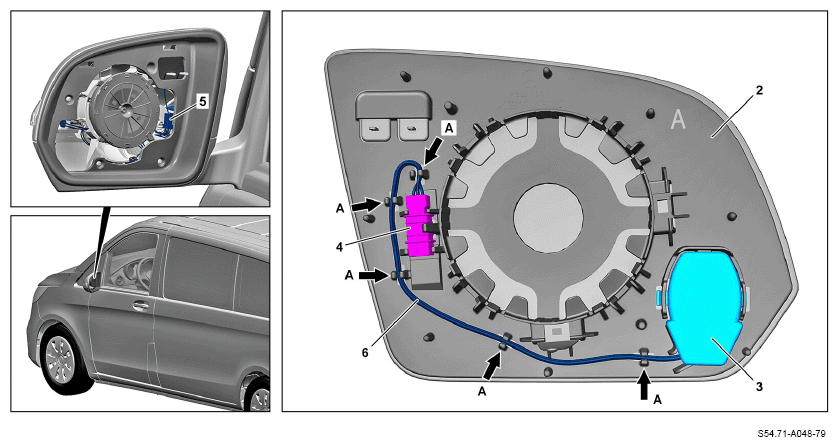

1. Attach Blind Spot Assist warning lamp (3) and electrical plug (4) at mirror glass (2).

   Check Blind Spot Assist warning lamp (3) and electrical plug (4) for tight seating.

2. Install electric line (6) of Blind Spot Assist warning lamp (3) in retaining clamps (arrows A) at mirror glass (2).
3. Disconnect electrical plug (5) from factory-installed subharness in outside mirror housing.
4. Connect electrical plug (5) of factory-installed subharness with electrical plug (4) of Blind Spot Assist warning lamp (3).

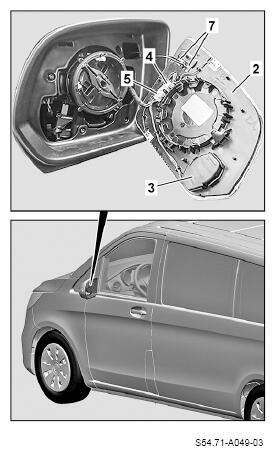

5. Connect electrical plugs (7) at mirror glass (2).
6. Install mirror glass (2) in outside mirror housing.

   Carefully clip in mirror glass (2).

   Otherwise, the mirror glass (2) may be damaged.

   Check mirror glass (2) for tight seating.
