Retrofit Backup Camera Control Unit - AN54.65-S-0030-01E

Model 447

With Code W65 (Tailgate)

Model 447.8

With Code W68 (EASY-PACK-tailgate)

The camera cover (KAB) control unit (N144) is used to control the reversing camera.

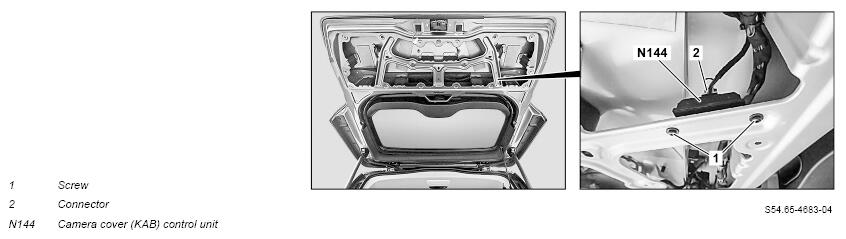

1. Install camera cover (KAB) control unit (N144) in liftgate as shown and secure using screws/bolts (1).
2. Attach connector (2) of liftgate electrical wiring harness to camera cover (KAB) control unit (N144).

   Shown on Model 447.8 With Code W68 (Electrically actuated liftgate)

Courtesy of MERCEDES-BENZ USA
