Onboard Logic Unit (OLU), Detailed Information - GF54.21-S-0031C

Model 447

with code JO3 (OLU Connect Unit)

with code XM7 (MOPF II)

Courtesy of MERCEDES-BENZ USA

Overview of Onboard Logic Unit (OLU), shown on model 447.8

Topology of Onboard Logic Unit (OLU), shown on model 447.8

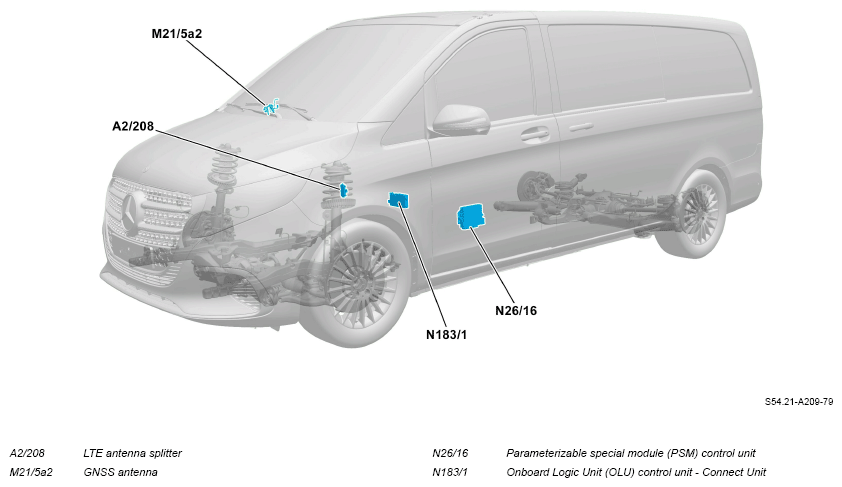

Fig 1: Onboard Logic Unit (OLU) Components Location - Model 447 With Code JO3, XM7

Courtesy of MERCEDES-BENZ USA

Overview

This document contains information on:

General
Function

General

The Onboard Logic Unit (OLU) control unit - Connect Unit (N183/1) serves as a vehicle interface for the customer, and therefore enables them to use their own software in the vehicle, for example.

The Onboard Logic Unit (OLU) control unit - Connect Unit (N183/1) is located in the seat box of the front passenger seat.

Function

The Onboard Logic Unit (OLU) control unit - Connect Unit (N183/1) abstracts vehicle functions to a higher abstraction interface and is connected to the actual vehicle via various interfaces.

The Onboard Logic Unit (OLU) control unit - Connect Unit (N183/1) is connected with the parameterizable special module (PSM) control unit (N26/16) via the CAN for multifunctions (CAN K).

The parameterizable special module (PSM) control unit (N26/16) is networked via 4 different connections with the vehicle architecture:

Body manufacturer CAN (CAN ABH)
Interior CAN (CAN B)
User interface CAN 2 (CAN HMI2)
CAN for multifunctions (CAN K)

Via the connection to the parameterizable special module (PSM) control unit (N26/16), any required information on the vehicle status can therefore be procured from the Onboard Logic Unit (OLU) control unit - Connect Unit (N183/1).

The Onboard Logic Unit (OLU) control unit - Connect Unit (N183/1) can communicate "Over the Air" with other components that are not part of the vehicle (e.g. smartphones).

For this purpose, the Onboard Logic Unit (OLU) control unit - Connect Unit (N183/1) is connected to the LTE antenna splitter (A2/208) and to the GNSS antenna (M21/5a2) via direct lines.

Detailed information
Overall network (GVN), detailed information	Model 447 with code XM7 (Facelift II) except code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except code ME4 (Electric motor 145 kW)	GF00.19-S-0020-01B
	Model 447 with code M7E (Electric motor 150 kW/battery 60 kWh (usable)) with code M8E (Electric motor 85 kW/battery 60 kWh (usable)) with code ME4 (Electric motor 145 kW) with code XM7 (Facelift II)	GF00.19-S-0020-01C
