DC/DC Converter Control Unit, Component Description - GF54.10-S-3006C

Model 447

With Code M56 (48V technology)

With Code XM7 (MOPF II)

Except Code M7E (Electric motor 150 kW/battery 60 kWh (usable))

Except Code M8E (Electric motor 85 kW/battery 60 kWh (usable))

Except Code ME4 (Electric motor 145 kW)

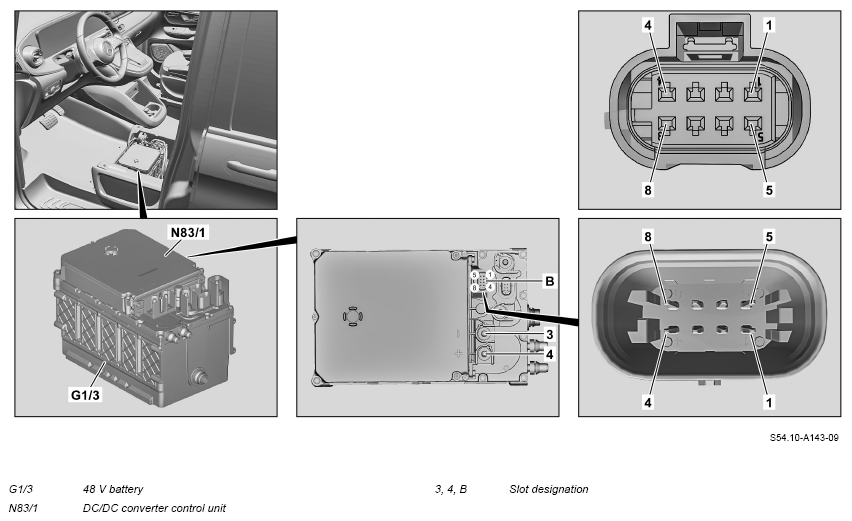

Fig 1: DC/DC Converter Control Unit Components Location - Model 447 With Code M56, XM7, Except Codes M7E, M8E, ME4

Courtesy of MERCEDES-BENZ USA

48 V battery

The numbers on the pins indicate the pin numbering of the slots.

Overview

This document contains information on:

General
Function
- Networking

General

The DC/DC converter control unit (N83/1) is seated in the seat box under the drivers seat

The DC/DC converter control unit (N83/1) and the 48 V battery (G1/3) are connected to each other and together form the battery module for 48 V battery.

Function

The DC/DC converter control unit (N83/1) converts the 48 V voltage of the 48 V battery (G1/3) into 12 V in order to be able to supply the 12 V on-board electrical system.

If the 48 V battery (G1/3) has to be charged, it can be charged via the 12 V battery. Here, the 12 V battery is connected to an external charging source and the DC/DC converter control unit (N83/1) converts the 12 V voltage of the 12 V battery (G1/3) into 48 V in order to be able to supply the 48 V battery.

The signals from the following component parts are sent or received by the DC/DC converter control unit (N83/1) over direct lines:

Input factors over a direct line	Initial parameters over a direct line
Terminal 30t	-
Terminal 30c	-
Terminal 30	-
Terminal 31	-
Terminal 30t	-

The signals from the following component parts are sent or received by the DC/DC converter control unit (N83/1) via the interior CAN (CAN B):

The signals from the following component parts are sent or received by the DC/DC converter control unit (N83/1) via the Local Interconnect Network (LIN):

Incoming signals via the Local Interconnect Network (LIN) from:	Outgoing signals via the Local Interconnect Network (LIN) to:
48 V battery (G1/3)	48 V battery (G1/3)

The signals from the following component parts are sent or received by the DC/DC converter control unit (N83/1) via the battery sensor LIN (LIN B15):

Incoming signals via the battery sensor LIN (LIN B15) from:	Outgoing signals via the battery sensor LIN (LIN B15) to:
Battery sensor (B95)	Battery sensor (B95)
Signal acquisition and actuation module (SAM) control unit (N10/1)	Signal acquisition and actuation module (SAM) control unit (N10/1)

Networking

Power supply

The DC/DC converter control unit (N83/1) is supplied with voltage by the firewall fuse and relay module (K40/11) via "terminal 30t" and by the pre-fuse box (F1) via "terminal 30".

In the event of an accident, "terminal 30c" is also issued by the pyrofuse (F39/1) to the 48 V battery (G1/3).

Ground connection

The ground connection "terminal 31" is made via a ground line to the auxiliary battery ground point (W10/4).

Incoming signals via the interior CAN (CAN B) from:	Outgoing signals via interior CAN (CAN B) to:
Signal acquisition and actuation module (SAM) control unit (N10/1)	Signal acquisition and actuation module (SAM) control unit (N10/1)
Left 1st rear seat row seat adjustment control unit with memory (N25/20) (with code U90 (Luxury seat, 1st seat row at left), U91 (Luxury seat, 1st seat row at right))	Left 1st rear seat row seat adjustment control unit with memory (N25/20) (with code U90 (Luxury seat, 1st seat row at left), U91 (Luxury seat, 1st seat row at right))
Right 1st rear seat row seat adjustment control unit with memory (N25/21) (with code U90 (Luxury seat, 1st seat row at left), U91 (Luxury seat, 1st seat row at right))	Right 1st rear seat row seat adjustment control unit with memory (N25/21) (with code U90 (Luxury seat, 1st seat row at left), U91 (Luxury seat, 1st seat row at right))
Parameterizable special module (PSM) control unit (N26/16) (with code ED5 (Parameterizable special module), JO3 (OLU Connect Unit), ZK0 (Electrohydraulic pop-up roof), ZK7 (MARCO POLO equipment line))	Parameterizable special module (PSM) control unit (N26/16) (with code ED5 (Parameterizable special module), JO3 (OLU Connect Unit), ZK0 (Electrohydraulic pop-up roof), ZK7 (MARCO POLO equipment line))
Trailer recognition control unit (AAG) (N28/1) (with code E57 (Electrical system for trailer socket), Q22 (Trailer coupling, non-removable ball head), Q50 (Trailer coupling, removable ball head))	Trailer recognition control unit (AAG) (N28/1) (with code E57 (Electrical system for trailer socket), Q22 (Trailer coupling, non-removable ball head), Q50 (Trailer coupling, removable ball head))
Driver seat adjustment control unit with memory (N32/5) (with code SF1 (Electrically adjustable driver's seat))	Driver seat adjustment control unit with memory (N32/5) (with code SF1 (Electrically adjustable driver's seat))
Front passenger seat adjustment control unit with memory (N32/6) (with code SF2 (Electrically adjustable front passenger seat))	Front passenger seat adjustment control unit with memory (N32/6) (with code SF2 (Electrically adjustable front passenger seat))
Seat heating/ventilation control unit, rear seat, 1st seat row, left (N32/12) (with code H05 (Seat climate control in the rear, 1st seat row))	Seat heating/ventilation control unit, rear seat, 1st seat row, left (N32/12) (with code H05 (Seat climate control in the rear, 1st seat row))
Seat heating/ventilation control unit, rear seat, 1st seat row, right (N3213) (with code H05 (Seat climate control in the rear, 1st seat row))	Seat heating/ventilation control unit, rear seat, 1st seat row, right (N3213) (with code H05 (Seat climate control in the rear, 1st seat row))
Seat heating/ventilation control unit, rear seat, 2nd seat row, left (N32/14) (with code H07 (Seat climate control in the rear, 2nd seat row))	Seat heating/ventilation control unit, rear seat, 2nd seat row, left (N32/14) (with code H07 (Seat climate control in the rear, 2nd seat row))
Seat heating/ventilation control unit, rear seat, 2nd seat row, right (N32/15) (with code H07 (Seat climate control in the rear, 2nd seat row))	Seat heating/ventilation control unit, rear seat, 2nd seat row, right (N32/15) (with code H07 (Seat climate control in the rear, 2nd seat row))
Left front door control unit (N69/3)	Left front door control unit (N69/3)
Right front door control unit (N69/4)	Right front door control unit (N69/4)
Right sliding door (E-LSTR) control unit (N69/6) (with code T55 (Electrical actuation for right sliding door))	Right sliding door (E-LSTR) control unit (N69/6) (with code T55 (Electrical actuation for right sliding door))
Left sliding door control unit (E-LSTL) (N69/7) (with code T56 (Electrical actuation for left sliding door))	Left sliding door control unit (E-LSTL) (N69/7) (with code T56 (Electrical actuation for left sliding door))
Overhead control panel (OCP) control unit (N70) (with code LC4 (Comfort overhead control panel) and D34 (Panoramic sliding sunroof), FY1 (Anti-Theft Protection Package))	Overhead control panel (OCP) control unit (N70) (with code LC4 (Comfort overhead control panel) and D34 (Panoramic sliding sunroof), FY1 (Anti-Theft Protection Package)) Electronic ignition lock (EZS) control unit (N73/8) Electronic ignition lock (EZS) control unit (N73/8)
Ambient lighting control unit (N162/1) (with code LE3 (Ambient lighting, 64 colors, cockpit + rear passenger compartment), LE4 (Ambient lighting in cockpit with 64 colors), LE5 (Ambient lighting, 64 colors, Marco Polo complete))	Ambient lighting control unit (N162/1) (with code LE3 (Ambient lighting, 64 colors, cockpit + rear passenger compartment), LE4 (Ambient lighting in cockpit with 64 colors), LE5 (Ambient lighting, 64 colors, Marco Polo complete))
Rear seat monitoring control unit (N191) (model 447.8, without code ZK7 (MARCO POLO equipment line))	Rear seat monitoring control unit (N191) (model 447.8, without code ZK7 (MARCO POLO equipment line))
