Assignment Of Pre-Fuse Box In Vehicle Interior - GF54.15-S-1256-37TRA
Model 447
Except Code XM0 (Facelift)
Model 448

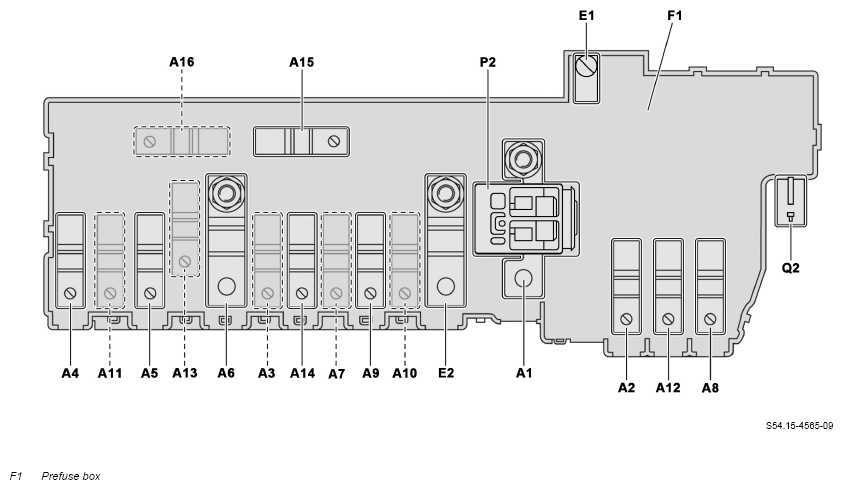

View from front
Model 447
| Connection | Fuse | Clamping device | Wire identification | Assignment | Restrictive validity | Rating in amperes (A) |
|---|---|---|---|---|---|---|
| A1 | Pyrofuse A1 (F1fA1) | 30 | 59.0 BK | Starter (M1) | - | - |
| A2 | Pre-fuse A2 (F1fA2) | 30 | 10.0 RDBK | Glow output stage (N14/8) | With ENGINE 651 | 100 |
| A2 | Pre-fuse A2 (F1fA2) | 30 | 10.0 RDBK | Glow output stage (N14/9) | with ENGINE 622 | 100 |
| A3 | - | 30 | - | Not assigned | - | - |
| A4 | Pre-fuse A4 (F1fA4) | 30 | 6.0 RD | Rear socket relay (K127) | With code ES3 (12V socket for left and right rear seat rows) or with code ZK7 (MARCO POLO equipment line) | 50 |
| A4 | - | 30 | - | Not assigned | Without code ES3 (12V sockets for right and left rear seat rows) and without code ZK7 (MARCO POLO equipment line) | - |
| A5 | Pre-fuse A5 (F1fA5) | 30 | - | Not assigned | with ENGINE 622 | - |
| A5 | - | 30 | - | Not assigned | With engine 651, with engine 274 | - |
| A6 | Pre-fuse A6 (F1fA6) | 30 | 35.0 RD | Firewall fuse and relay module (K40/11) | - | 250 |
| A7 | Pre-fuse A7 (F1fA7) | 30 | 16.0 RD | Engine compartment fuse and relay module (K40/10) | - | 150 |
| A8 | Pre-fuse A8 (F1fA8) | 30 | 16.0 RD | Fuse and relay module, front passenger footwell (K40/12) | With CODE ED5 (Parameterizable special module) or with code EK1 (Terminal strip for electrical connection) or with code JD1 (Tachograph with digital technology) or with code JV6 (Tachograph preinstallation) or with code T55 (Electr. actuation for right sliding door) or with code ZK2 (Taxi version with emergency alarm system) or with code ZK3 (Taxi version without emergency alarm system) or with code ZK7 (MARCO POLO equipment line) or with code ZM7 (Rental car package with emergency alarm system) or with code ZM8 (Rental car package) | 150 |
| A9 | - | 30 | - | Not assigned | - | - |
| A10 | Pre-fuse A10 (F1fA10) | 30 | 10.0 RD | Electric fan (M91) | - | 100 |
| A11 | Pre-fuse A11 (F1fA11) | 30 | 12.0 RD | Electric power steering (ES) control unit (N68) | - | 100 |
| A12 | Pre-fuse A12 (F1fA12) | 30 | 16.0 RD | Battery cutoff relay (K57) | With code E36 (Additional cutoff relay with battery) or with code ZH6 (Marco Polo ACTIVITY) or with code ZK7 (MARCO POLO equipment line) | 150 |
| A13 | Pre-fuse A13 (F1fA13) | 30 | 10.0 RD | Signal acquisition and actuation module (SAM) control unit (N10/1) via pre-fuse box circuit 30 connector sleeve (Z4/6) | - | 40 |
| A14 | - | 30 | - | Not assigned | - | - |
| A15 | - | 30 | - | Not assigned | - | - |
| A16 | - | 30 | - | Not assigned | - | - |
| E1 | - | 30 | 50.0 BK | On-board electrical system battery (G1) | - | - |
| E2 | Pre-fuse E2 (F1fE2) | 30 | 85.0 BK | Alternator (G2) | - | 350 |
| P2Pin 1 | - | - | 0.5 GN | Supplemental Restraint System (SRS) control unit (N2/18) | with ENGINE 622 | - |
| P2Pin 1 | - | - | 0.5 GN | Supplemental Restraint System (SRS) control unit (N2/18) | With ENGINE 651 | - |
| P2Pin 2 | - | - | 0.5 VT | Supplemental Restraint System (SRS) control unit (N2/18) | with ENGINE 622 | - |
| P2Pin 2 | - | - | 0.5 VT | Supplemental Restraint System (SRS) control unit (N2/18) | With ENGINE 651 | - |
| Q2Pin 1 | - | - | 0.5 WH | Signal acquisition and actuation module (SAM) control unit (N10/1) | With CODE MJ8 (ECO start/stop function) | - |
| Q2Pin 1 | - | - | - | Not assigned | Without code MJ8 (ECO start-stop function) | - |
| Q2Pin 2 | - | 31 | 0.5 BN | Right vehicle interior firewall ground point (W43/2) | With CODE MJ8 (ECO start/stop function) | - |
| Q2Pin 2 | - | - | - | Not assigned | Without code MJ8 (ECO start-stop function) | - |
Model 448
| Connection | Fuse | Clamping device | Wire identification | Assignment | Restrictive validity | Rating in amperes (A) |
|---|---|---|---|---|---|---|
| A1 | Pyrofuse A1 (F1fA1) | 30 | 59.0 BK | Starter (M1) | - | - |
| A2 | - | - | - | Not assigned | - | - |
| A3 | - | - | - | Not assigned | - | - |
| A4 | Pre-fuse A4 (F1fA4) | 30 | 6.0 RD | Rear socket relay (K127) | With code ES3 (12V sockets for rear left and right seat rows) | 50 |
| A5 | - | - | - | Not assigned | - | - |
| A6 | Pre-fuse A6 (F1fA6) | 30 | 35.0 RD | Firewall fuse and relay module (K40/11) | - | 250 |
| A7 | Pre-fuse A7 (F1fA7) | 30 | 16.0 RD | Engine compartment fuse and relay module (K40/10) | - | 150 |
| A8 | Pre-fuse A8 (F1fA8) | 30 | 16.0 RD | Fuse and relay module, front passenger footwell (K40/12) | With code ED5 (Parameterizable special module) or with code EK1 (Terminal strip for electrical connection) or with code T55 (Electr. actuation for right sliding door) or with code W68 (Electrically operated liftgate) | 150 |
| A9 | - | - | - | Not assigned | - | - |
| A10 | Pre-fuse A10 (F1fA10) | 30 | 10.0 RD | Electric fan (M91) | - | 100 |
| A11 | Pre-fuse A11 (F1fA11) | 30 | 12.0 RD | Electric power steering (ES) control unit (N68) | - | 100 |
| A12 | - | - | - | - | - | - |
| A13 | Pre-fuse A13 (F1fA13) | 30 | 10.0 RD | Signal acquisition and actuation module (SAM) control unit (N10/1) via pre-fuse box circuit 30 connector sleeve (Z4/6) | - | 40 |
| A14 | - | - | - | Not assigned | - | - |
| A15 | - | - | - | Not assigned | - | - |
| A16 | - | - | - | Not assigned | - | - |
| E1 | - | 30 | 50.0 BK | On-board electrical system battery (G1) | - | - |
| E2 | Pre-fuse E2 (F1fE2) | 30 | 50.0 BK | Alternator (G2) | - | 350 |
| P2Pin 1 | - | - | 0.5 GN | Supplemental Restraint System (SRS) control unit (N2/18) | - | - |
| P2Pin 2 | - | - | 0.5 VT | Supplemental Restraint System (SRS) control unit (N2/18) | - | - |
| Q2Pin 1 | - | - | 0.5 WH | Signal acquisition and actuation module (SAM) control unit (N10/1) | With CODE MJ8 (ECO start/stop function) | - |
| Q2Pin 2 | - | 31 | 0.5 BN | Right vehicle interior firewall ground point (W43/2) | With CODE MJ8 (ECO start/stop function) | - |
