(DC/DC Converter Control Unit, Component Description - GF54.10-S-3006B)
Model 447
With Code M7E (Electric motor 150 kW/battery 60 kWh (usable))
With Code M8E (Electric motor 85 kW/battery 60 kWh (usable))
With Code ME4 (Electric motor 145 kW)
With Code XM7 (MOPF II)

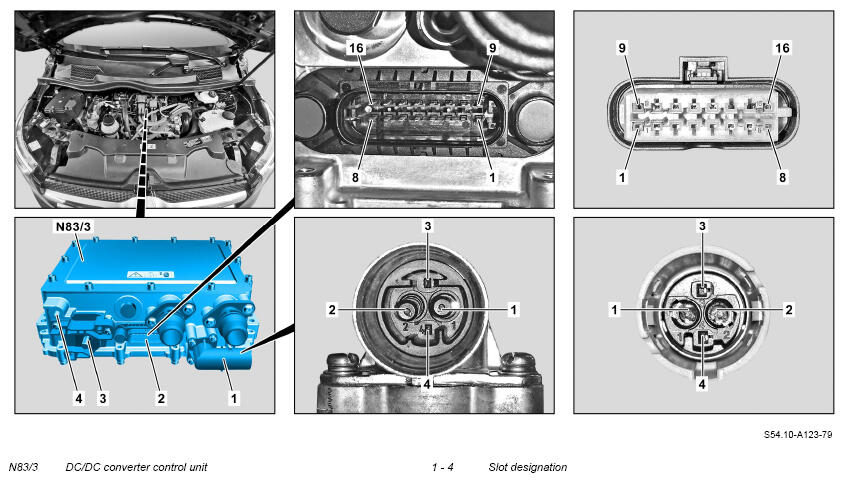

The numbers on the pins indicate the pin numbering of the slots.
Overview
This document contains information on:
- General
- Function
- Tasks
- Networking
- Ground connection
- Power supply
General
The DC/DC converter control unit (N83/3) is installed as a separate component part in the vehicle and is located in the engine compartment above the electric machine (A79/1).
The DC/DC converter control unit (N83/3) is part of the low-temperature circuit of the cooling system for the electric drive (NT1)
Function
Tasks
The DC/DC converter control unit (N83/3) enables energy to be exchanged between the high-voltage on-board electrical system and the 12 V on-board electrical system, by transforming the high voltage direct voltage (primary voltage) into 12 V direct voltage (secondary voltage).
Networking
Input parameters are read in by the DC/DC converter control unit (N83/3) via the following connections:
- Direct line
- Hybrid CAN (CAN L)
The following input and output parameters are read in or output via direct lines by the DC/DC converter control unit (N83/3):
| Input parameters via direct line | Output parameters via direct line |
|---|---|
| Circuit 15 | - |
| - | Circuit 30 |
| Circuit 30c | - |
| Circuit 30t | - |
| Circuit 31 | - |
| Interlock circuit | Interlock circuit |
Input parameters and output parameters for the following control units are sent or received by the DC/DC converter control unit (N83/3):
| Input parameters via power connections (high voltage) | Output parameters via power connections (high voltage) |
|---|---|
| High-voltage power distributor (N116/11) | - |
The interlock circuit serves to protect people against inadvertent contact with high-voltage components. The interlock is an anticipatory contact which opens a little before the high-voltage connection when opening a high-voltage connection. All plugs are contact-protected. Seating of all connector couplings is monitored by an interlock circuit.
Input parameters and output parameters for the following control units are sent or received by the DC/DC converter control unit (N83/3) via hybrid CAN (CAN L):
| Input and output parameters via hybrid CAN (CAN L) | Additional information |
|---|---|
| Head unit (A26/17) | - |
| High-voltage battery (G1/29) | - |
| Sound generator control unit (N12/2) | - |
| DC charge-connection unit (N24/6) | - |
| AC charger for high-voltage battery (N83/11) | - |
| HERMES control unit (N112/9) | - |
| Drivetrain control unit (N127) | Contains signals of other control units that are connected via CAN. |
Ground connection
The "Circuit 31" ground connection is made via a ground line to the DC/DC converter ground point (W116).
Power supply
The DC/DC converter control unit (N83/3) is supplied with power via "Circuit 30t" and at ignition "ON" by "Circuit 15".
