Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01MEL

Model 167.188/189/388/389/989

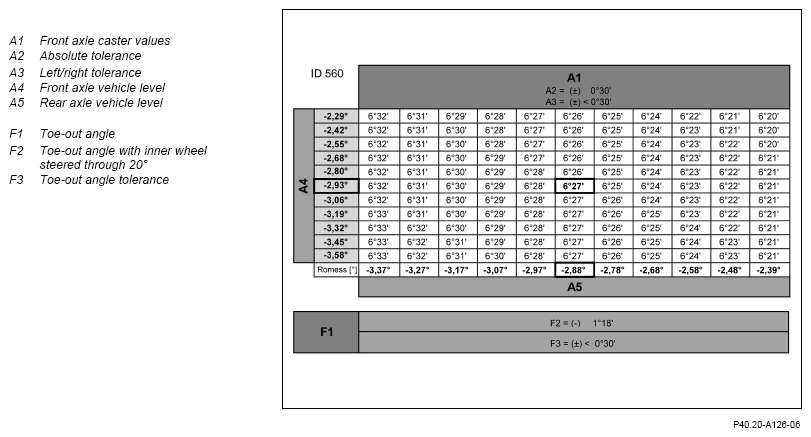

G14790899

Courtesy of MERCEDES-BENZ USA

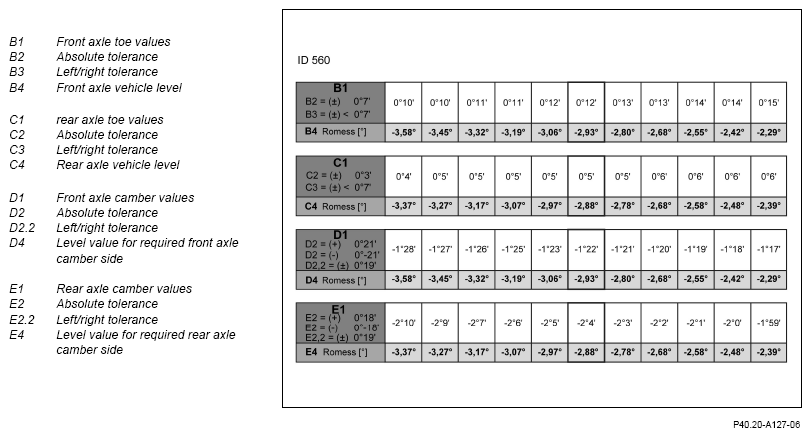

G14790900

Courtesy of MERCEDES-BENZ USA
