Remove/Install Front Stabilizer Bar Linkage - AR32.35-P-3330ME

Model 167

except code 489 (AIRMATIC Dual Control/semi-active air suspension)

except code 490 (Electrohydraulic suspension)

Model 167

with code 489 (AIRMATIC Dual Control/semi-active air suspension)

except code 490 (Electrohydraulic suspension)

Shown on right side of vehicle except code 489 (AIRMATIC) and except code 490 (Electrohydraulic suspension)

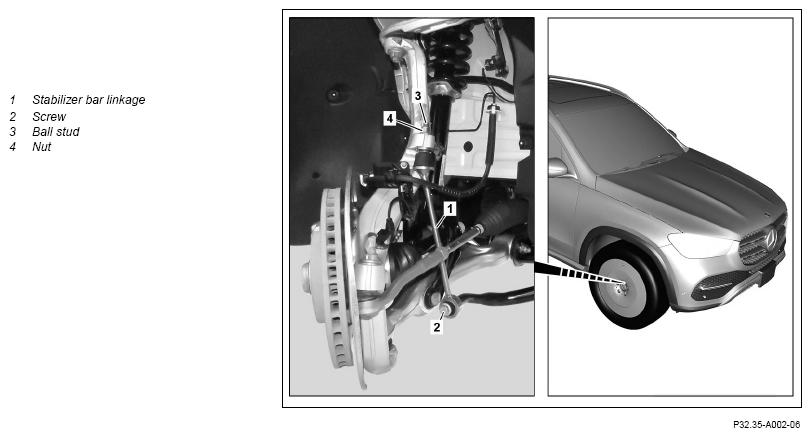

Fig 1: Front Stabilizer Bar Linkage Components Location - Model 167 With/Without Code 489 Except Code 490

Courtesy of MERCEDES-BENZ USA

Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on air suspension		AH32.22-P-1000-01T
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Remove front left or right wheel and tire assembly.		AR40.10-P-1102ME
2	Remove bolt (2).	Bolt, stabilizer rod to stabilizer	*BA32.35-P-1002-02D
3	Counterhold ball pin (3) and remove nut (4)	Nut, stabilizer rod to steering knuckle	*BA32.35-P-1003-02D
		Socket	Fig 2
4	Remove torsion bar linkage (1).
	Check
5	Check torsion bar linkage (1) for damage and wear.	If wear or damage is detected, ↓ replace torsion bar linkage (1).
6	Install in the reverse order.

Fig 2: Identifying Socket (221 589 03 09 00)

Courtesy of MERCEDES-BENZ USA
