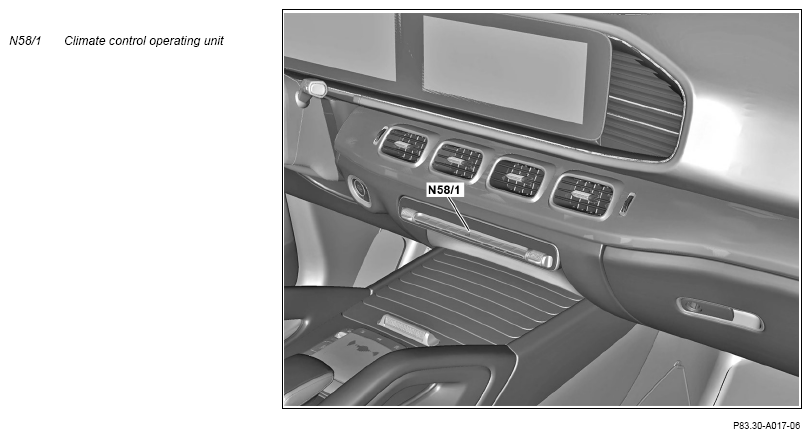

Remove/Install Front Climate Control Operating Unit - AR83.30-P-6630ME
Model 167
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove center air vents. | AR83.10-P-4509ME | |

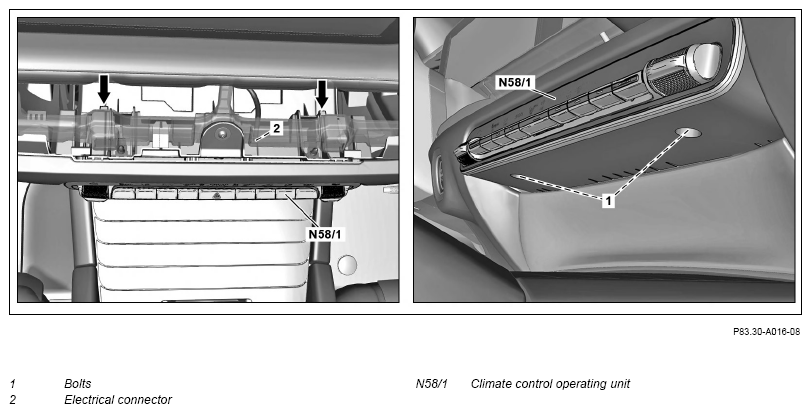

| 3 | Remove bolts (1). | ||
| 4 | Release catch tabs (arrows) of climate control operating unit (N58/1) and pull out climate control operating unit (N58/1) until the electrical connector (2) is accessible. | ||
| 5 | Release and disconnect electrical connector (2), then remove the climate control operating unit (N58/1). | ||
| 6 | Install in the reverse order |
