Rear Wall Installation - Ar64.10-P-5746-03MEX

Model 167.9

with code M036 (Maybach version)

The superordinate service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

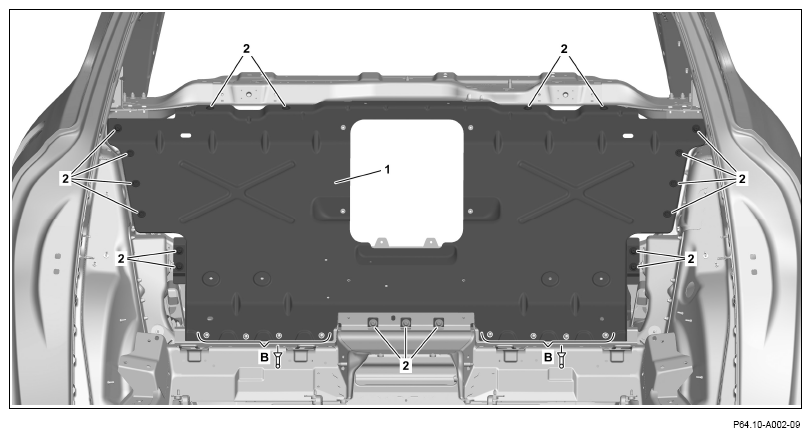

1. Install rear panel (1), fit, and fix in place.
2. Drill rivet holes on the rear panel (1) with a diameter of 6.7 mm from the rear through the existing holes in the body (areas A).
3. Remove rear wall (1).
4. Deburr rivet holes on rear wall (1) and body on both sides.
5. Remove drilling chips.
6. Coat insides of riveted joints with zinc dust paint.

   Courtesy of MERCEDES-BENZ USA

7. Install rear wall (1) and fix in place.
8. Rivet rear panel (1) with rivets with a diameter of 6.4 x 14 (areas B).
9. Screw in screws (2) on the rear panel (1).
