Remove/Install Glove Compartment - AR68.10-P-1400ME

Model 167

MODIFICATION NOTES

10.01.2019

Operation steps added.

Operation steps 6, 9, 10, 11.

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove bottom trim for instrument panel on front passenger side.		AR68.10-P-1502ME

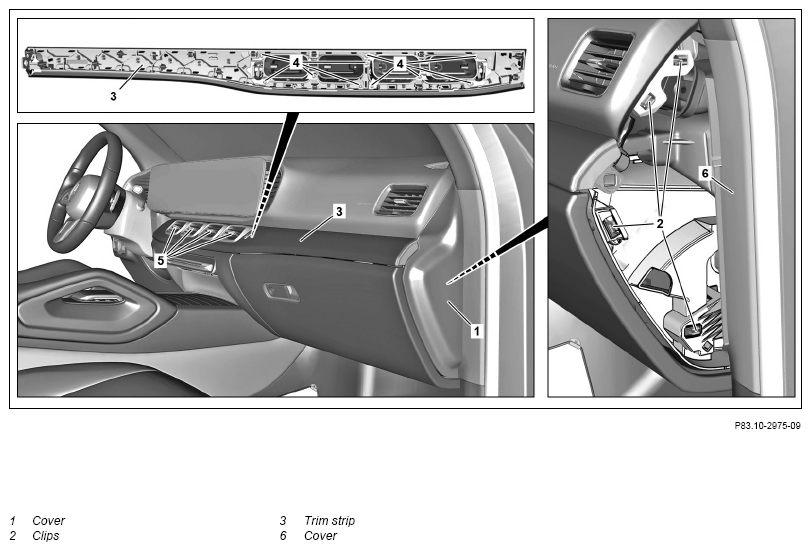

2	Remove cover (1).	Ensure that the clips (2) are seated correctly.
3.1	Remove trim strip (3) until the electrical connector of the ambient lighting is accessible and release and disconnect electrical connector.	Model 167 with code 876 (ambient lighting) The electrical connector is double-locked. Ensure that the clips are seated correctly.
3.2	Remove trim strip (3).	Model 167 except code 876 (ambient lighting) Ensure that the clips are seated correctly.
4	Remove the cover (6).

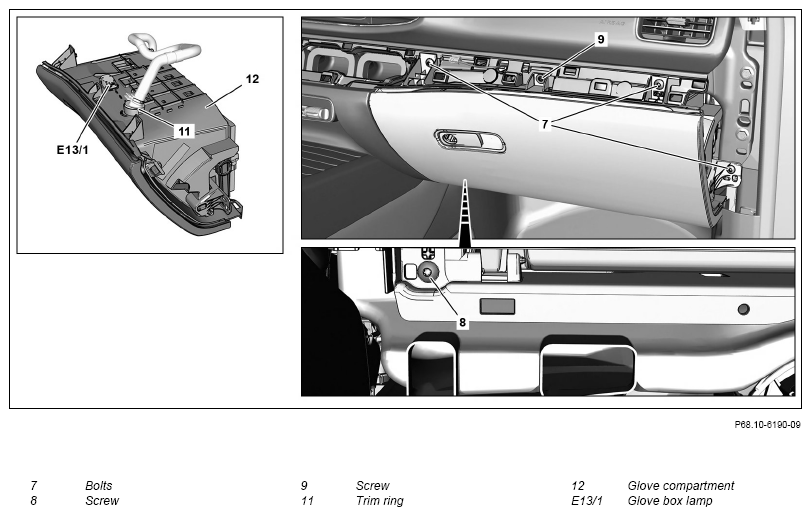

5	Remove screws (7, 8).
6	Remove TV card reader (A50/8).	Model 167 with code 865 (TV tuner)	AR82.85-P-7367ME
7	Remove screw (9) and lower glove compartment housing (12) until the electrical connector of the glove compartment lamp (E13/1) is accessible.	Ensure that the trim ring (11) and the connected air duct are seated correctly.
8	Release and disconnect electrical connector of the glove compartment lamp (E13/1).
9	Remove hose line from the fragrance system alternator (N59).	Model 167 with code P21 (Air quality package)
10	Release and disconnect electrical connector from fragrance system alternator (N59).	Model 167 with code P21 (Air quality package)
11	Release and disconnect electrical connector from glove compartment lamp switch (S17/9).
12	Remove glove compartment housing (12).
13	Install in the reverse order
