Remove/Install Door Sill Molding - AR68.30-P-4100ME
Model 167

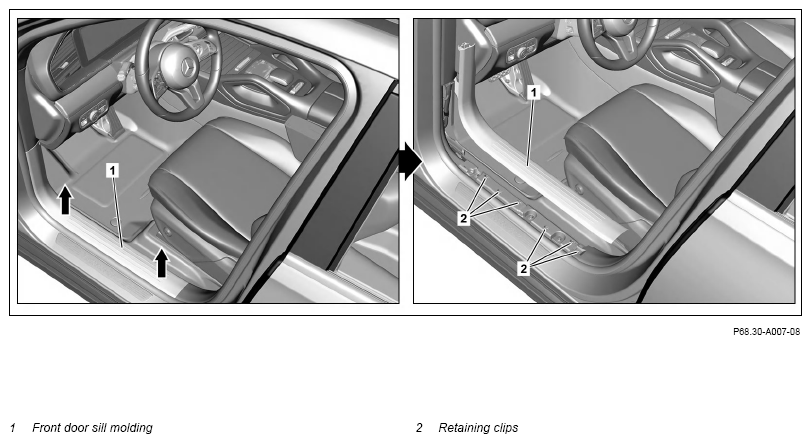

Shown on front left side of vehicle
Shown on left side of vehicle
| Remove/install front door sill (1) | |||
| 1 | Unclip front door sill (1) from the retaining clamps (2) (arrows) starting at the rear and working forward. | If the retaining clamps (2) are damaged: ↓ Replace the corresponding retaining clamps (2). |
Fig 1 |
| 2 | Remove front door sill (1). | ||
| 3 | Install in the reverse order. | ||
| Remove/install rear door sill (3) | |||
| 4 | Unclip rear door sill (3) from the retaining clamps (4) (arrows) starting at the front and working toward the rear. | If the retaining clamps (4) are damaged, ↓ Replace the corresponding retaining clamps (4). |
Fig 1 |
| 5 | Remove rear door sill (3). | ||
| 6 | Install in the reverse order. |
