Remove/Install Center Console - AR68.20-P-2000ME

Model 167

Courtesy of MERCEDES-BENZ USA

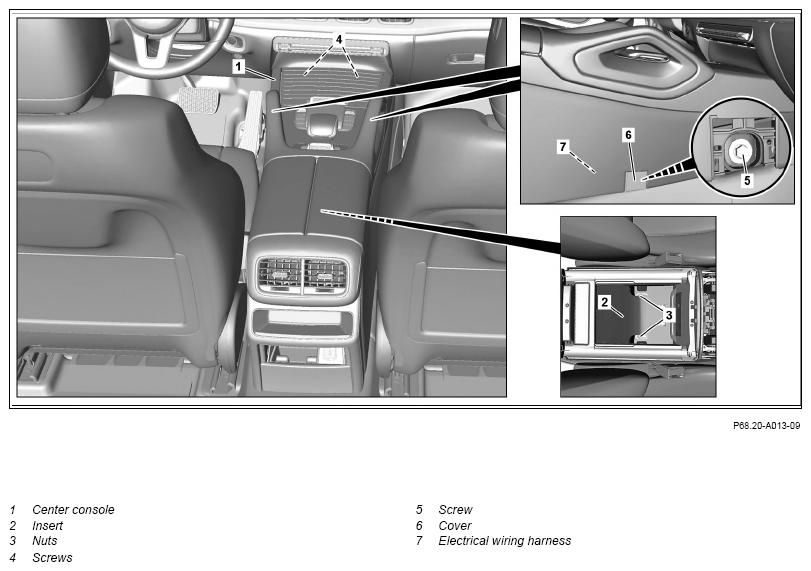

Shown on model 167.1 With Code 580 (air conditioning) and without code P08 (rear passenger compartment-comfort package)

	Remove/install
1	Remove armrest cap from the center console (1).		AR68.20-P-2370ME
2.1	Remove rear cover from center console (1).	Model 167.1/3 Model 167.9 except code 224 (Rear individual seat design) except code M036 (Maybach version) Model 167.9 with code 224 (Rear individual seat design) except code M036 (Maybach version) Model 167.9 with code M036 (Maybach version) except code 224 (Rear individual seat design)	AR68.20-P-2358ME
2.2	Remove rear center console and loosen from the center console (1).	Model 167.9 with code 224 (Rear individual seat design) with code M036 (Maybach version) Model 167.9 with code 224 (Rear individual seat design) with code M036 (Maybach version) with code U67 (230 V socket in rear passenger compartment) Model 167.9 with code 224 (Rear individual seat design) with code M036 (Maybach version) with code U80 (115 V socket) Do not remove the 115 V/230 V socket and do note separate the electrical connectors.	AR68.20-P-2020MEM
3	Fold up insert (2) in armrest stowage compartment.
4	Remove nuts (3).
5	Remove covers (6) and unscrew screws (5).
6	Remove stowage compartment in front center console (1).		AR68.20-P-0901ME
7	Remove screws (4).
8	Expose electrical wiring harness (7).	Ensure that the electrical wiring harness (7) is routed and padded correctly. To prevent noise development during vehicle operation.
9	Remove center console (1).	Helper required.
10	Install in the reverse order.
