Outer Longitudinal Member Shell On Entrance Replacement- Ar63.30-P-1102ME

Model 167

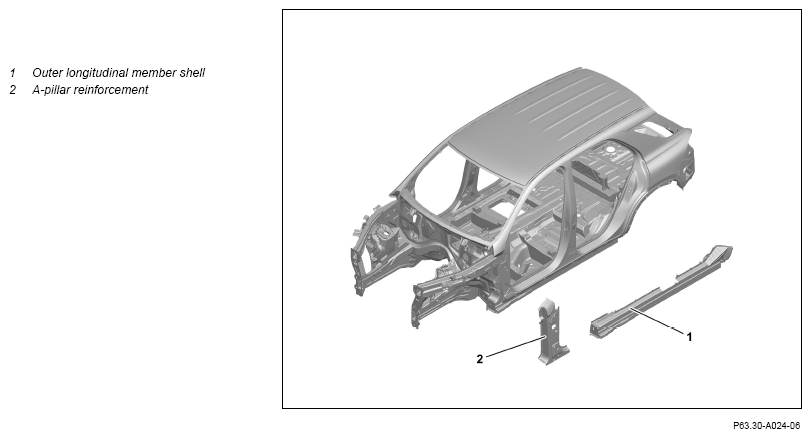

Shown on model 167.1

G14791620Courtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
Notice General information on body repair   AH60.00-P-0001-01KOA
Notice Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Notice Pretreatment of bonding surfaces   AH60.00-P-0008-01SX
  Notes on foam-protected insulation in body   AH60.00-P-0041-01A
  General information on MB materials   AH98.00-P-9409-03A
REMOVING Remove
1 Remove detachable parts in area of repair point.
2 Cover all detachable parts remaining in vehicle with spark protection blankets.
3 Remove multipiece side longitudinal member paneling.   AR63.30-P-1040ME
4 Remove rear fender in area of longitudinal member outer shell (1). Model 167
When replacing rear section or entire longitudinal member outer shell (1).
Model 167.1
AR63.50-P-1401ME
5 Set up straightening bench with straightening bench crossmembers and straightening set.
REFER TO SPECIAL TOOLS 000 588 01 23 00 Body straightening system   WS60.00-P-0023K
6 Place vehicle on straightening bench and fasten.
7 Remove longitudinal member outer shell (1) and A-pillar reinforcement (2).   AR63.30-P-1102-01ME
    1K-zinc dust paint *BR00.45-Z-1056-07A
INSTALLING Install
DANGER The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. AS00.00-Z-0007-01A
Notice Measures for preventing damage to components when performing electric welding and soldering work   AH60.00-P-0001-02A
  General information on riveting   AH60.00-P-0003-01N
8 Prepare longitudinal member outer shell (1) and A-pillar reinforcement (2).   AR63.30-P-1102-02ME
    1K-zinc dust paint *BR00.45-Z-1056-07A
9 Install longitudinal member outer shell (1) and A-pillar reinforcement (2).   AR63.30-P-1102-03ME
REFER TO SPECIAL TOOLS 000 588 01 23 00 Body straightening system   WS60.00-P-0023K
    1K-zinc dust paint *BR00.45-Z-1056-07A
    White sealing compound, 310 ml, DBL 6069.20 *BR00.45-Z-1003-01A
    Parts kit for 2-component adhesive for body *BR00.45-Z-1162-02A
    Blind rivet Y2 6.5 x 12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) *BR00.45-Z-1012-13A
    Blind rivet Y3 6.5 x 14.5 (clamping range 4 mm to 7 mm, draw-off strength min. 19 kN) *BR00.45-Z-1016-13A
10 Release vehicle from straightening bench, lift and remove straightening bench.
11 Clean weld joints and sheet metal flange.
12 Install rear fender in area of longitudinal member outer shell (1). Model 167
When replacing rear section or entire longitudinal member outer shell (1).
Model 167.1
AR63.50-P-1401ME
13 Install side longitudinal member paneling.   AR63.30-P-1040ME
14 Remove spark protection blankets.
15 Reinstall detachable parts in area of repair point.
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1003-01A White sealing compound, 310 ml, DBL 6069.20 A 001 989 63 20
BR00.45-Z-1012-13A Blind rivet Y2 6.5 x 12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) A 004 990 16 97
BR00.45-Z-1016-13A Blind rivet Y3 6.5 x 14.5 (clamping range 4 mm to 7 mm, draw-off strength min. 19 kN) A 004 990 17 97
BR00.45-Z-1056-07A 1K-zinc dust paint A 000 986 28 00
BR00.45-Z-1162-02A Parts kit for 2-component adhesive for body A 012 989 17 71
