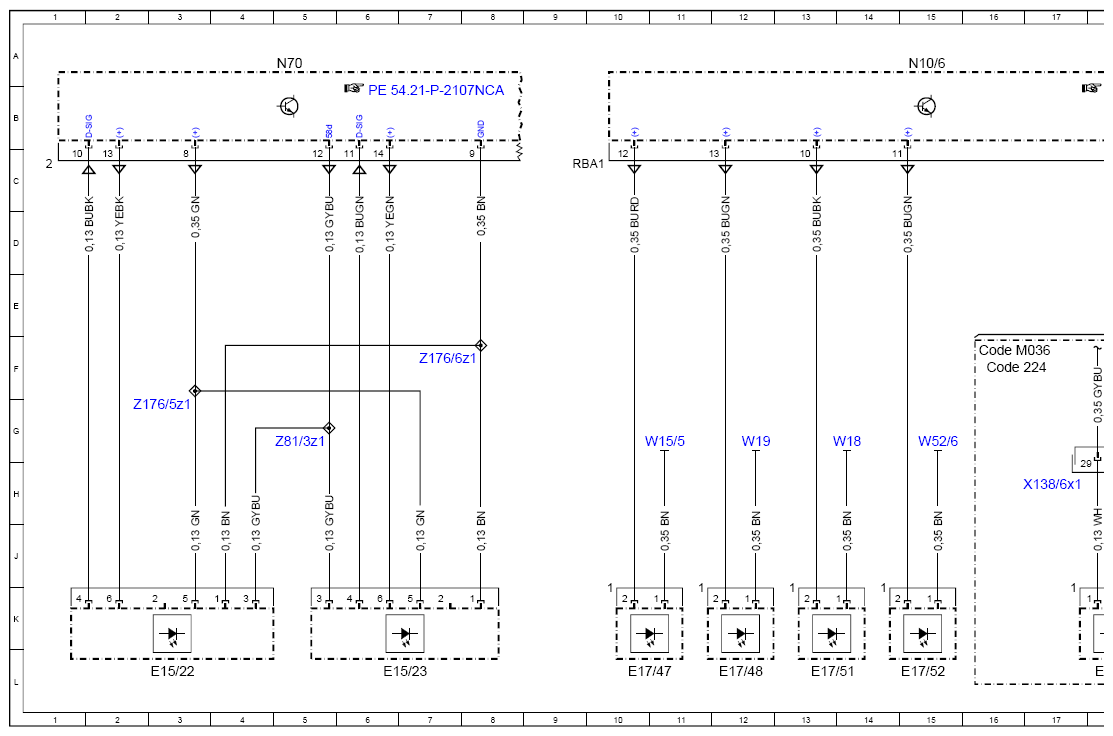

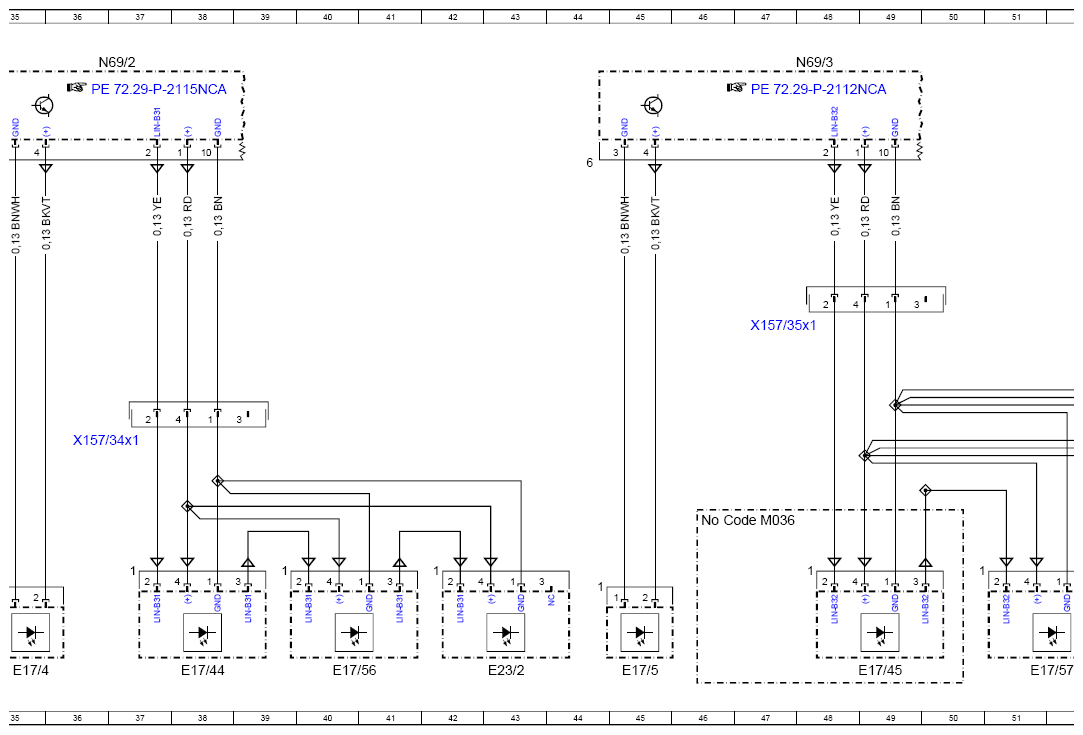

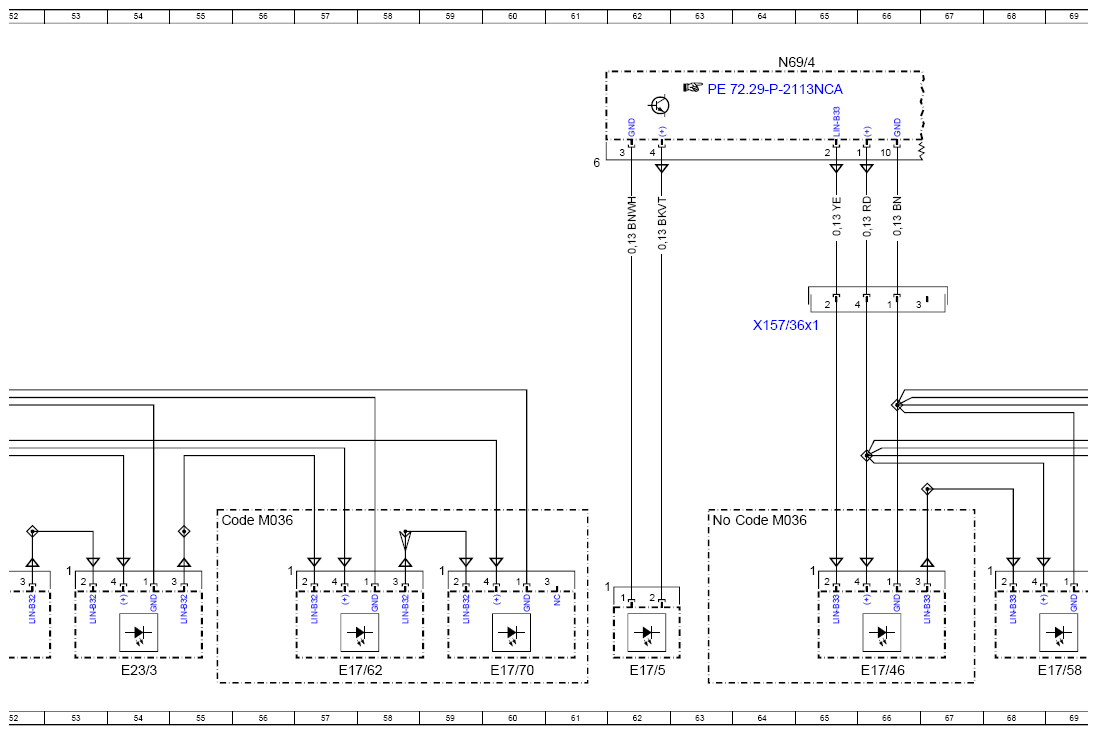

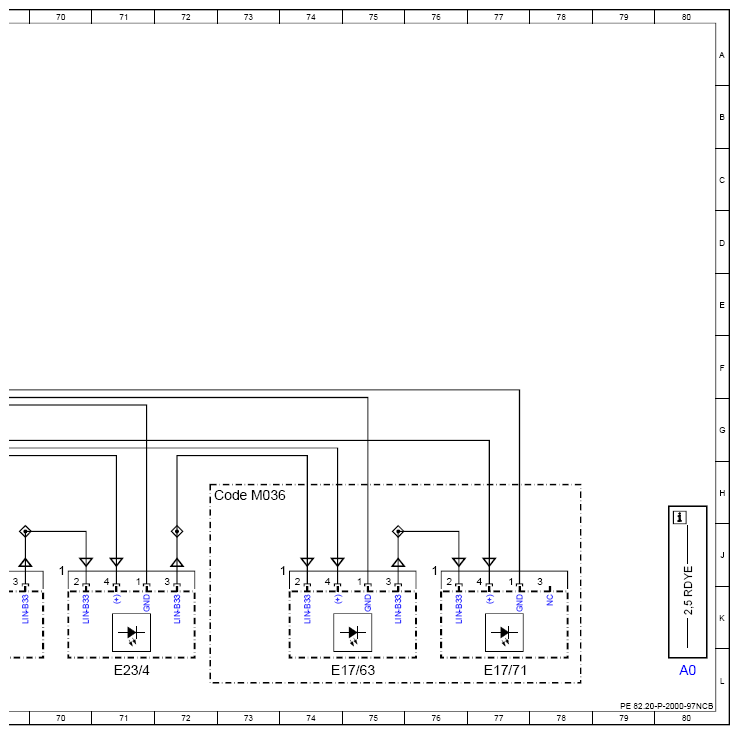

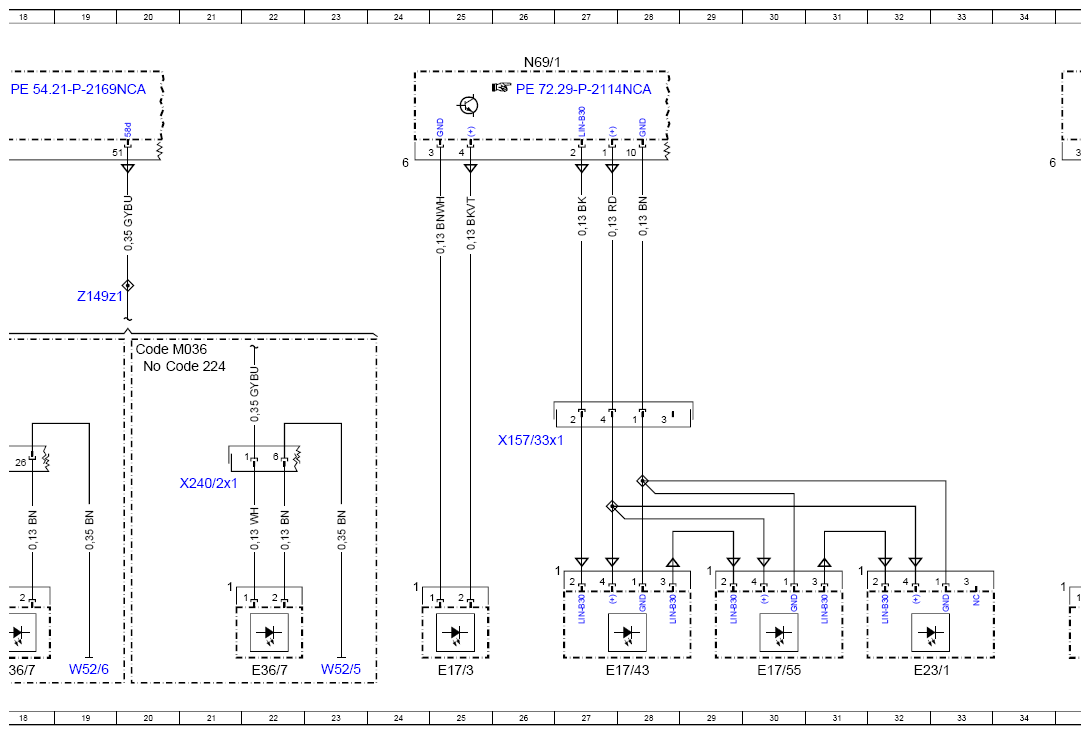

Wiring Diagram Interior Illumination - PE82.20-P-2000-97NCB
Model 167 with code 876 (Interior Light package)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| Code 224 | Design rear individual seats | 20F |
| Code 224 | Design rear individual seats | 16F |
| Code M036 | Maybach version | 55J |
| Code M036 | Maybach version | 16F |
| Code M036 | Maybach version | 20F |
| Code M036 | Maybach version | 72H |
| Code M036 | Maybach version | 46J |
| Code M036 | Maybach version | 64J |
| E15/22 | Left rear reading lamp | 3L |
| E15/23 | Right rear reading lamp | 6L |
| E17/3 | Left front door exit and warning lamp | 25L |
| E17/4 | Right front door exit and warning lamp | 35L |
| E17/43 | Left front door ambiance illumination | 27L |
| E17/44 | Right front door ambiance illumination | 38L |
| E17/45 | Left rear door ambiance illumination | 49L |
| E17/46 | Right rear door ambiance illumination | 66L |
| E17/47 | Left front illuminated door sill molding | 10L |
| E17/48 | Right front illuminated door sill molding | 12L |
| E17/5 | Left rear door exit and warning lamp | 45L |
| E17/5 | Left rear door exit and warning lamp | 62L |
| E17/51 | Left rear illuminated door sill molding | 13L |
| E17/52 | Right rear illuminated door sill molding | 15L |
| E17/55 | Left front door handle ambiance illumination | 30L |
| E17/56 | Right front door handle ambiance illumination | 40L |
| E17/57 | Left rear door handle ambiance illumination | 51L |
| E17/58 | Right rear door handle ambiance illumination | 69L |
| E17/62 | Left rear door front trim insert ambient lighting | 57L |
| E17/63 | Right rear door front trim insert ambient lighting | 74L |
| E17/70 | Left rear door rear trim insert ambient lighting | 60L |
| E17/71 | Right rear door rear trim insert ambient lighting | 77L |
| E23/1 | Left front door stowage compartment illumination | 32L |
| E23/2 | Right front door stowage compartment illumination | 43L |
| E23/3 | Left rear door stowage compartment illumination | 54L |
| E23/4 | Right rear door stowage compartment illumination | 71L |
| E36/7 | Rear armrest folding compartment illumination | 18L |
| E36/7 | Rear armrest folding compartment illumination | 22L |
| N10/6 | Front central control unit | 15A |
| N69/1 | Driver door control unit | 26A |
| N69/2 | Front passenger door control unit | 36A |
| N69/3 | Left rear door control unit | 48A |
| N69/4 | Right rear door control unit | 64A |
| N70 | Overhead control panel control unit | 5A |
| W15/5 | Left front footwell ground point | 11G |
| W18 | Left front seat crossmember ground point | 14G |
| W19 | Right front seat crossmember ground point | 12G |
| W52/5 | Left center longitudinal member ground point | 23L |
| W52/6 | Right center longitudinal member ground point | 19L |
| W52/6 | Right center longitudinal member ground point | 15G |
| X138/6x1 | Rear center console electrical connector | 17H |
| X157/33x1 | Left front door ambiance illumination electrical connector | 26G |
| X157/34x1 | Right front door ambiance illumination electrical connector | 36G |
| X157/35x1 | Left rear door ambiance illumination electrical connector | 47E |
| X157/36x1 | Right rear door ambiance illumination electrical connector | 64E |
| X240/2x1 | 2nd seat row armrest electrical connector | 21H |
| Z149z1 | Interior wiring harness switch and controls illumination end sleeve | 19E |
| Z176/5z1 | 2nd seat row interior illumination connector sleeve | 3G |
| Z176/6z1 | 2nd seat row interior illumination ground connection connector sleeve | 7F |
| Z81/3z1 | 2nd seat row circuit 58d connector sleeve | 5G |
