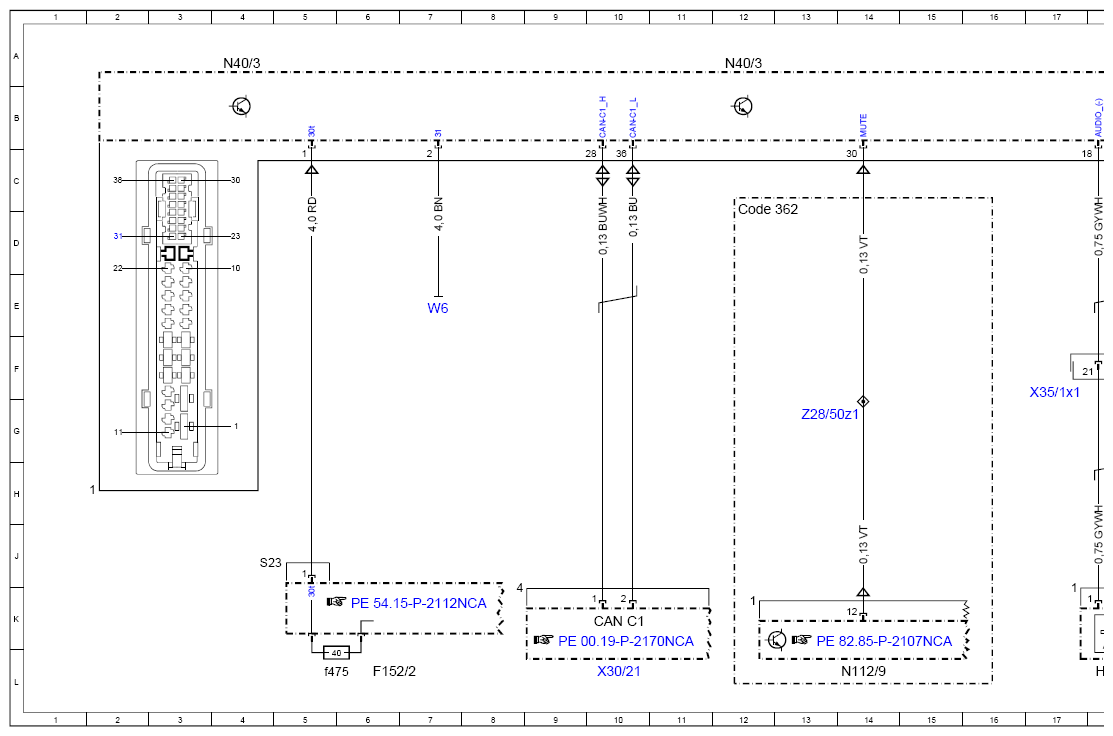

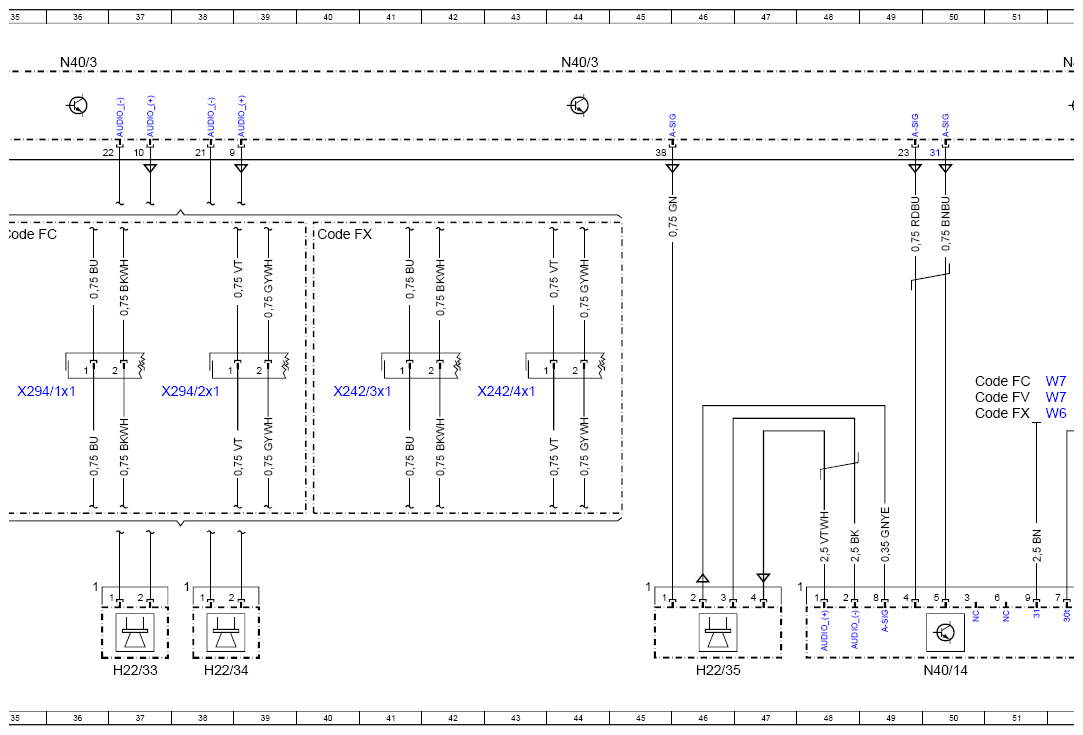

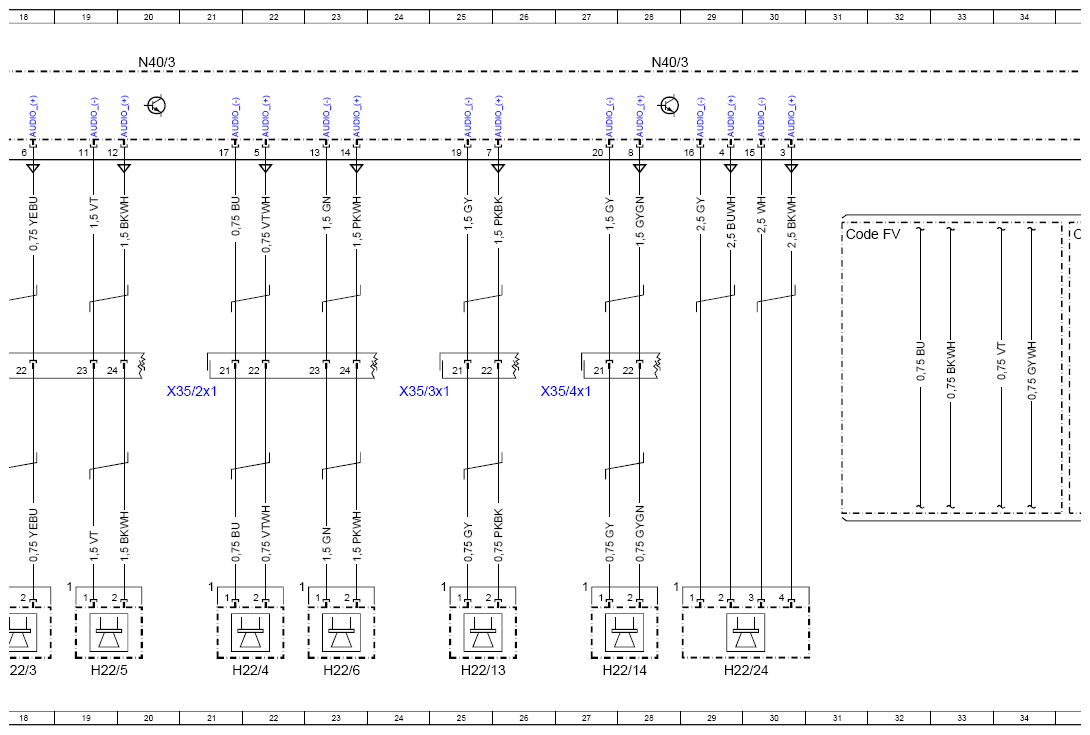

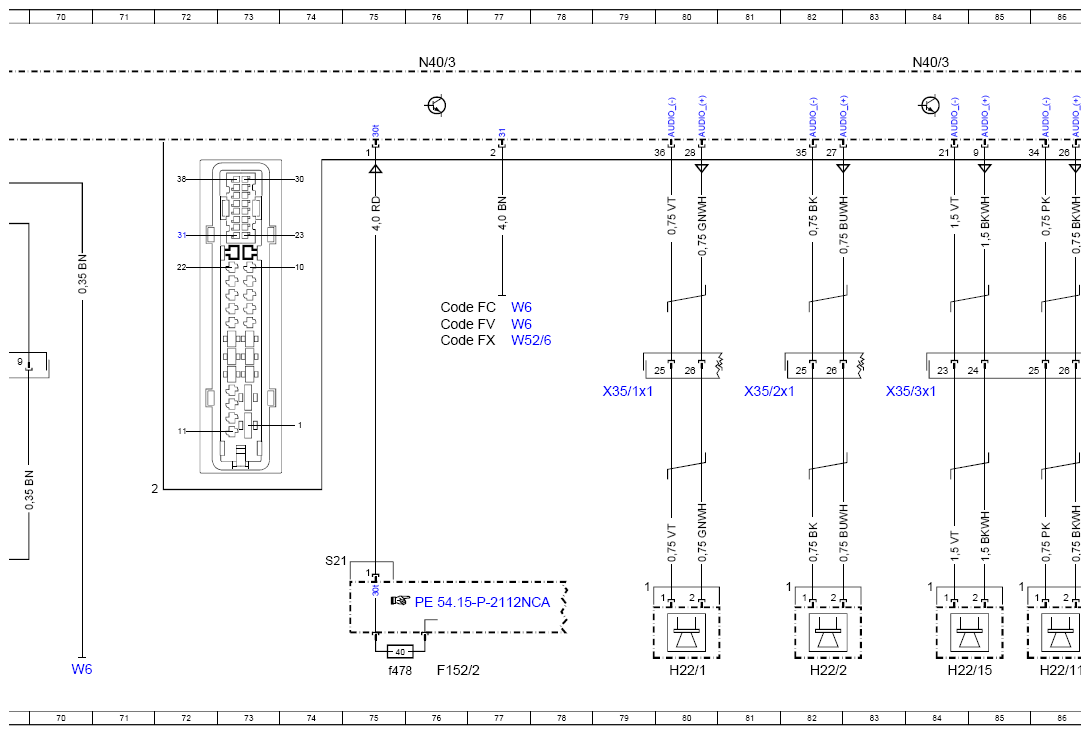

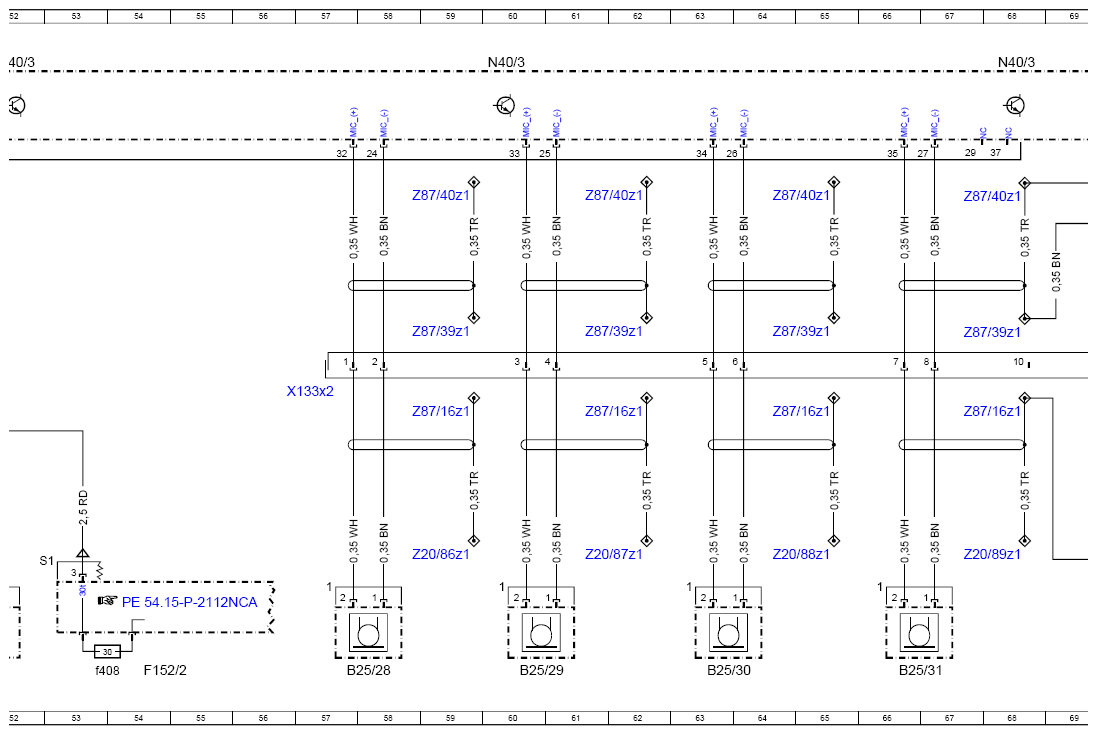

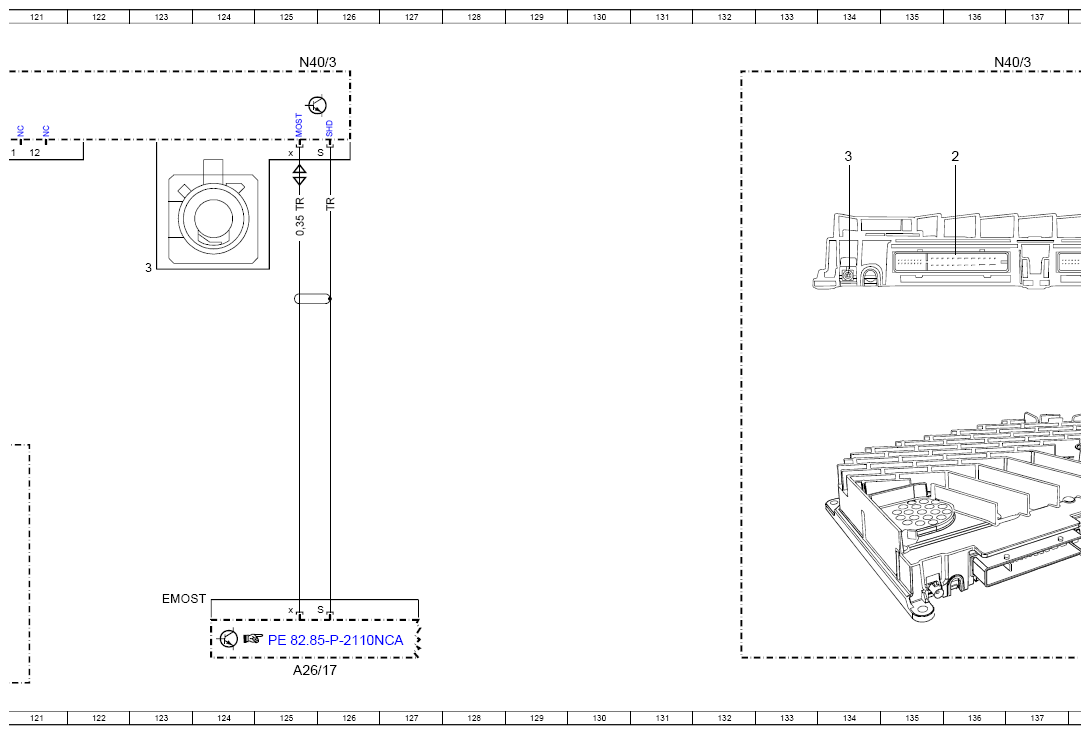

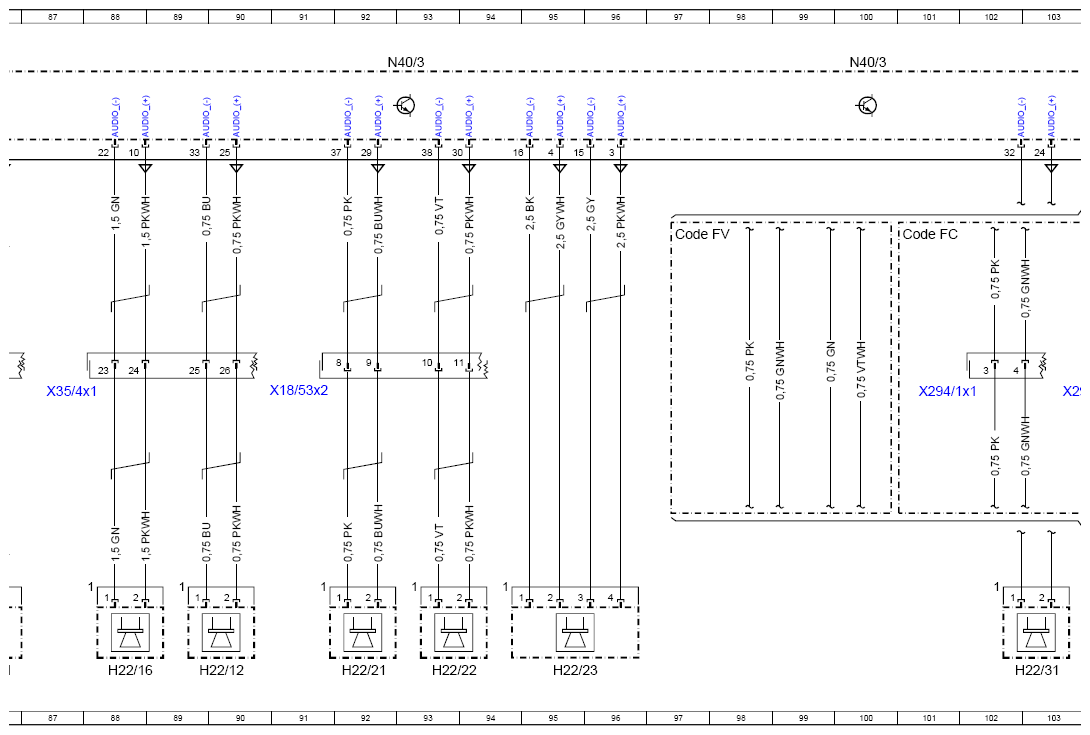

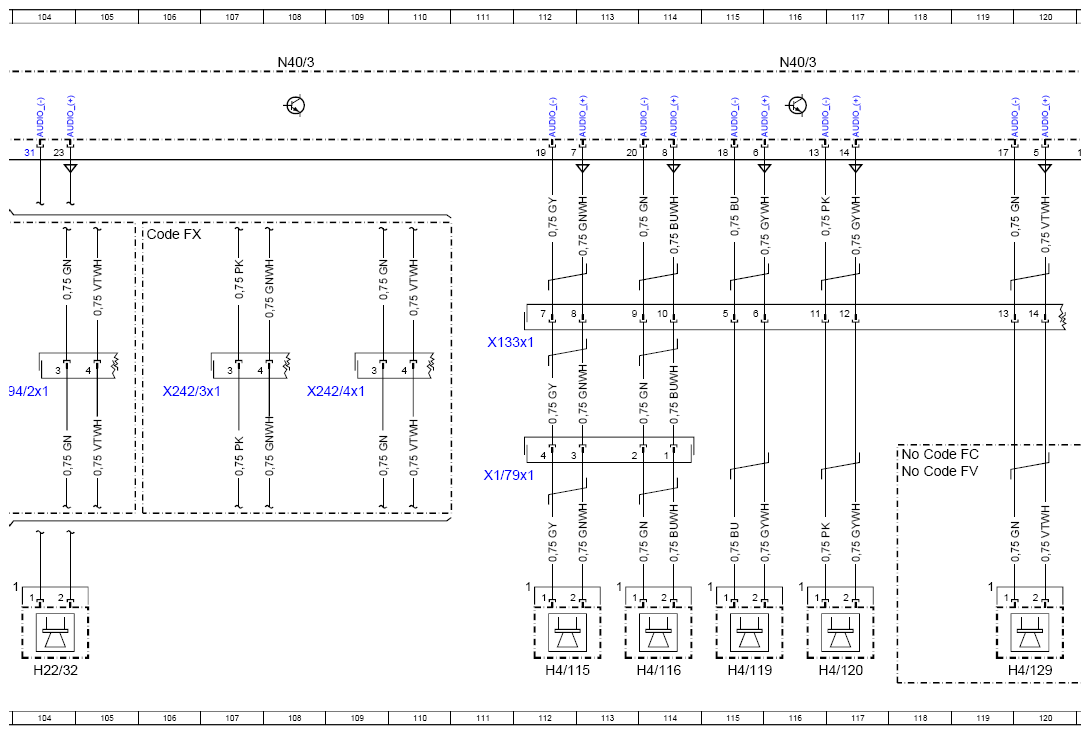

Wiring Diagram For Sound System Amplifier Control Unit - PE82.62-P-2109-97NCC
Model 167 with code 811 (High-End sound system)
Control unit N40/3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 152L |
| A26/17 | Head unit | 125L |
| B25/28 | Left front active engine noise compensation microphone | 58L |
| B25/29 | Right front active engine noise compensation microphone | 60L |
| B25/30 | Left rear active engine noise compensation microphone | 63L |
| B25/31 | Right rear active engine noise compensation microphone | 66L |
| CAN C1 | Drive train CAN | 10K |
| Code 362 | HERMES LTE | 12D |
| Code FC | COUPE | 35D |
| Code FC | COUPE | 76E |
| Code FC | COUPE | 50F |
| Code FC | COUPE | 101D |
| Code FC | COUPE | 118G |
| Code FV | LONG SEDAN | 31D |
| Code FV | LONG SEDAN | 76E |
| Code FV | LONG SEDAN | 50G |
| Code FV | LONG SEDAN | 97D |
| Code FV | LONG SEDAN | 118H |
| Code FX | Special version | 40D |
| Code FX | Special version | 76F |
| Code FX | Special version | 50G |
| Code FX | Special version | 106D |
| F152/2 | Rear fuse and relay module | 6L |
| F152/2 | Rear fuse and relay module | 76L |
| F152/2 | Rear fuse and relay module | 54L |
| F152/2f408 | Fuse 408 | 53L |
| F152/2f475 | Fuse 475 | 5L |
| F152/2f478 | Fuse 478 | 75L |
| H22/1 | Left front tweeter (High End) | 80L |
| H22/11 | Left rear tweeter (High End) | 86L |
| H22/12 | Right rear tweeter (High End) | 90L |
| H22/13 | Left rear mid-range speaker (High End) | 25L |
| H22/14 | Right rear mid-range speaker (High End) | 27L |
| H22/15 | Left rear bass speaker (High End) | 84L |
| H22/16 | Right rear bass speaker (High End) | 88L |
| H22/2 | Right front tweeter (High End) | 82L |
| H22/21 | Center front tweeter (High End) | 92L |
| H22/22 | Center front mid-range speaker (High End) | 93L |
| H22/23 | Left front Front bass speaker (High End) | 95L |
| H22/24 | Right front Front bass speaker (High End) | 29L |
| H22/3 | Left front mid-range speaker (High End) | 18L |
| H22/31 | Left rear surround sound system tweeter (High End) | 103L |
| H22/32 | Right rear surround sound system tweeter (High End) | 104L |
| H22/33 | Left rear surround sound system mid-range speaker (High End) | 37L |
| H22/34 | Right rear surround sound system mid-range speaker (High End) | 38L |
| H22/35 | Rear subwoofer (High End) | 46L |
| H22/4 | Right front mid-range speaker (High End) | 22L |
| H22/5 | Left front bass speaker (High End) | 19L |
| H22/6 | Right front bass speaker (High End) | 23L |
| H4/115 | Left front center overhead control panel midrange speaker (3D sound) | 112L |
| H4/116 | Right front center overhead control panel midrange speaker (3D sound) | 114L |
| H4/119 | Left rear midrange speaker | 115L |
| H4/120 | Right rear midrange speaker | 117L |
| H4/129 | Center rear headliner midrange speaker | 120L |
| N112/9 | HERMES control unit | 14L |
| N40/14 | Subwoofer amplifier | 50L |

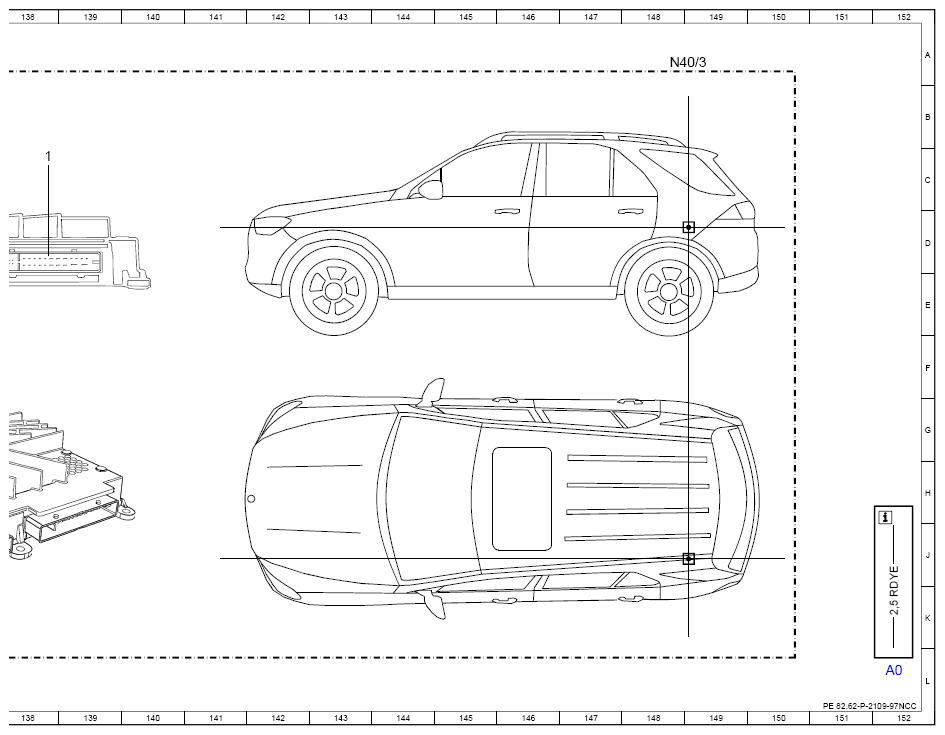

| N40/3 | Sound system amplifier control unit | 136A |
| N40/3 | Sound system amplifier control unit | 148A |
| N40/3 | Sound system amplifier control unit | 4A |
| N40/3 | Sound system amplifier control unit | 12A |
| N40/3 | Sound system amplifier control unit | 20A |
| N40/3 | Sound system amplifier control unit | 28A |
| N40/3 | Sound system amplifier control unit | 36A |
| N40/3 | Sound system amplifier control unit | 44A |
| N40/3 | Sound system amplifier control unit | 52A |
| N40/3 | Sound system amplifier control unit | 60A |
| N40/3 | Sound system amplifier control unit | 68A |
| N40/3 | Sound system amplifier control unit | 76A |
| N40/3 | Sound system amplifier control unit | 84A |
| N40/3 | Sound system amplifier control unit | 93A |
| N40/3 | Sound system amplifier control unit | 100A |
| N40/3 | Sound system amplifier control unit | 108A |
| N40/3 | Sound system amplifier control unit | 116A |
| N40/3 | Sound system amplifier control unit | 125A |
| W52/6 | Right center longitudinal member ground point | 77F |
| W6 | Left wheel arch trunk ground point | 7E |
| W6 | Left wheel arch trunk ground point | 70L |
| W6 | Left wheel arch trunk ground point | 77E |
| W6 | Left wheel arch trunk ground point | 77E |
| W6 | Left wheel arch trunk ground point | 51G |
| W7 | Right wheelhouse trunk ground point | 51G |
| W7 | Right wheelhouse trunk ground point | 51F |
| X1/79x1 | Midrange speaker/eyeglasses compartment electrical connector | 111H |
| X133x1 | Roof/vehicle interior electrical connector | 111F |
| X133x2 | Roof/vehicle interior electrical connector | 57F |
| X18/53x2 | Driver cockpit/interior wiring harness electrical connector | 91F |
| X242/3x1 | Left load compartment electrical connector | 41F |
| X242/3x1 | Left load compartment electrical connector | 106F |
| X242/4x1 | Right load compartment electrical connector | 43F |
| X242/4x1 | Right load compartment electrical connector | 109F |
| X294/1x1 | Left load compartment adapter electrical connector | 36F |
| X294/1x1 | Left load compartment adapter electrical connector | 101F |
| X294/2x1 | Right load compartment adapter electrical connector | 38F |
| X294/2x1 | Right load compartment adapter electrical connector | 104F |
| X30/21 | Drive train CAN (CAN C1) potential distributor electrical connector | 10L |
| X35/1x1 | Left front door electrical connector | 17F |
| X35/1x1 | Left front door electrical connector | 79F |
| X35/2x1 | Right front door electrical connector | 21F |
| X35/2x1 | Right front door electrical connector | 81F |
| X35/3x1 | Left rear door electrical connector | 24F |
| X35/3x1 | Left rear door electrical connector | 84F |
| X35/4x1 | Right rear door electrical connector | 27F |
| X35/4x1 | Right rear door electrical connector | 87F |
| Z20/86z1 | Microphone screen connector sleeve | 59J |
| Z20/87z1 | Microphone screen connector sleeve | 62J |
| Z20/88z1 | Microphone screen connector sleeve | 65J |
| Z20/89z1 | Microphone screen connector sleeve | 68J |
| Z28/50z1 | Mute connector sleeve | 13G |
| Z87/16z1 | Microphone shielding connector sleeve | 59G |
| Z87/16z1 | Microphone shielding connector sleeve | 62G |
| Z87/16z1 | Microphone shielding connector sleeve | 65G |
| Z87/16z1 | Microphone shielding connector sleeve | 68G |
| Z87/39z1 | Microphone shielding connector sleeve | 59E |
| Z87/39z1 | Microphone shielding connector sleeve | 62E |
| Z87/39z1 | Microphone shielding connector sleeve | 65E |
| Z87/39z1 | Microphone shielding connector sleeve | 68F |
| Z87/40z1 | Microphone shielding connector sleeve | 59C |
| Z87/40z1 | Microphone shielding connector sleeve | 62C |
| Z87/40z1 | Microphone shielding connector sleeve | 65C |
| Z87/40z1 | Microphone shielding connector sleeve | 68C |
