Wiring Diagram For Sound System Amplifier Control Unit - PE82.62-P-2109-97NCA
Model 167 with code 97B (Engine noise reduction via speakers (EOC)) except code 810 (Premium sound system) except code 811 (High-End sound system)

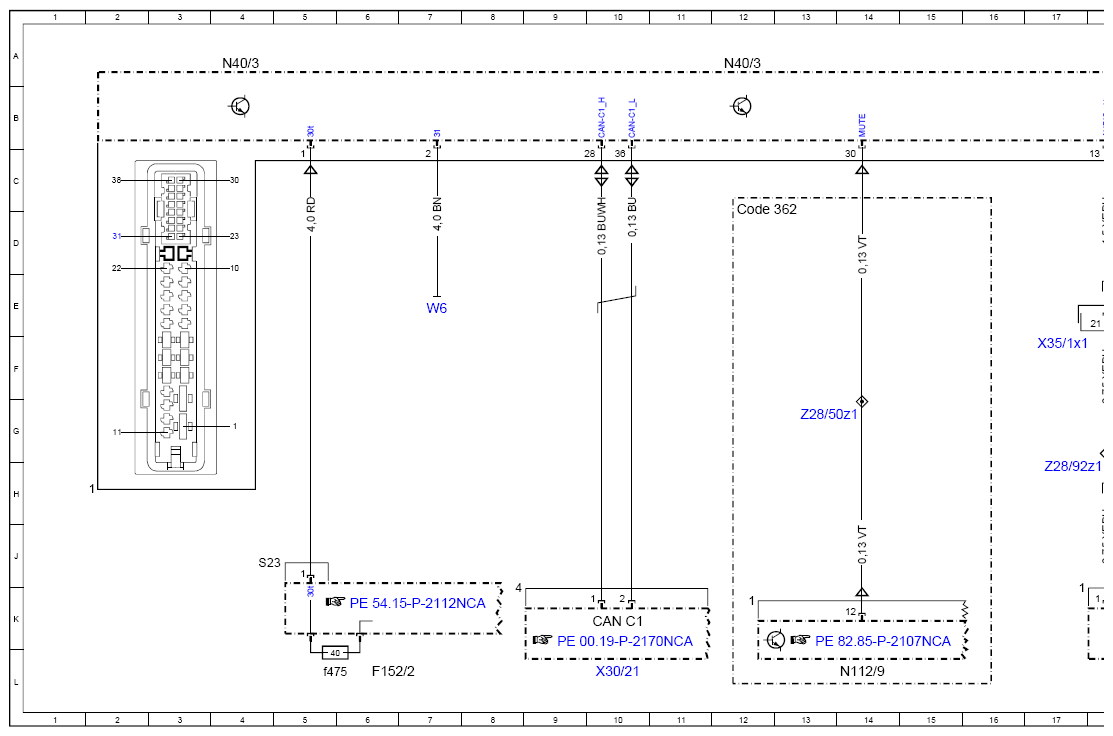

Control unit N40/3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| A26/17 | Head unit | 52L |

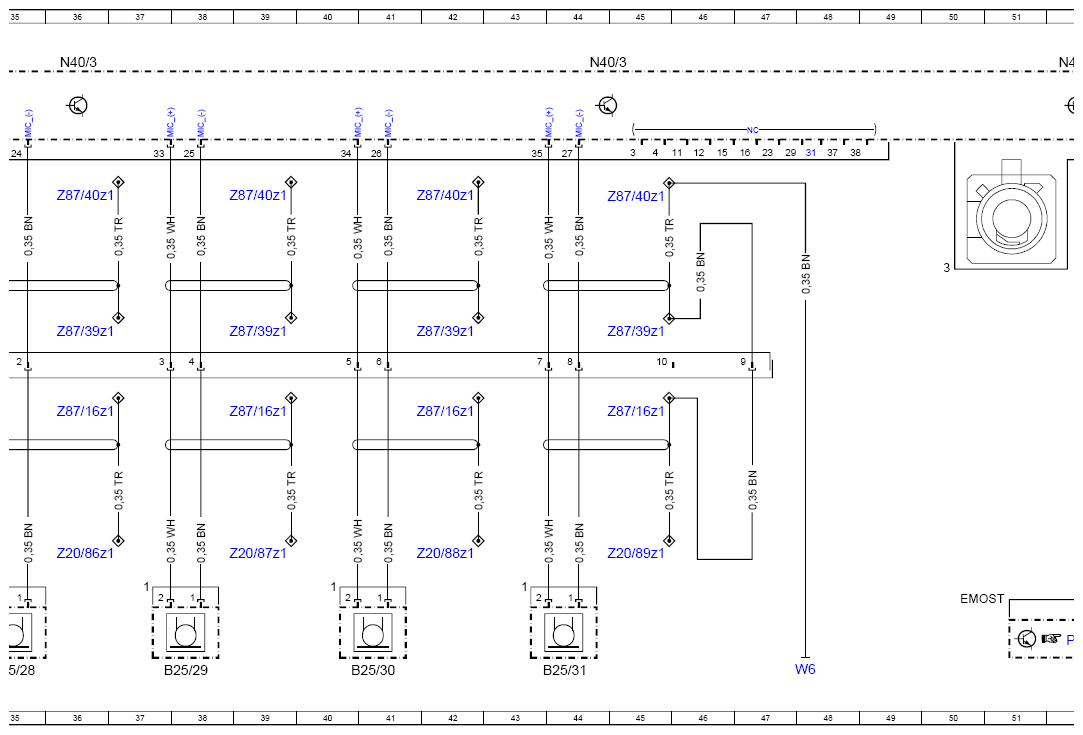

| B25/28 | Left front active engine noise compensation microphone | 35L |
| B25/29 | Right front active engine noise compensation microphone | 38L |
| B25/30 | Left rear active engine noise compensation microphone | 41L |
| B25/31 | Right rear active engine noise compensation microphone | 44L |
| CAN C1 | Drive train CAN | 10K |
| Code 362 | HERMES LTE | 12D |
| F152/2 | Rear fuse and relay module | 6L |
| F152/2f475 | Fuse 475 | 5L |

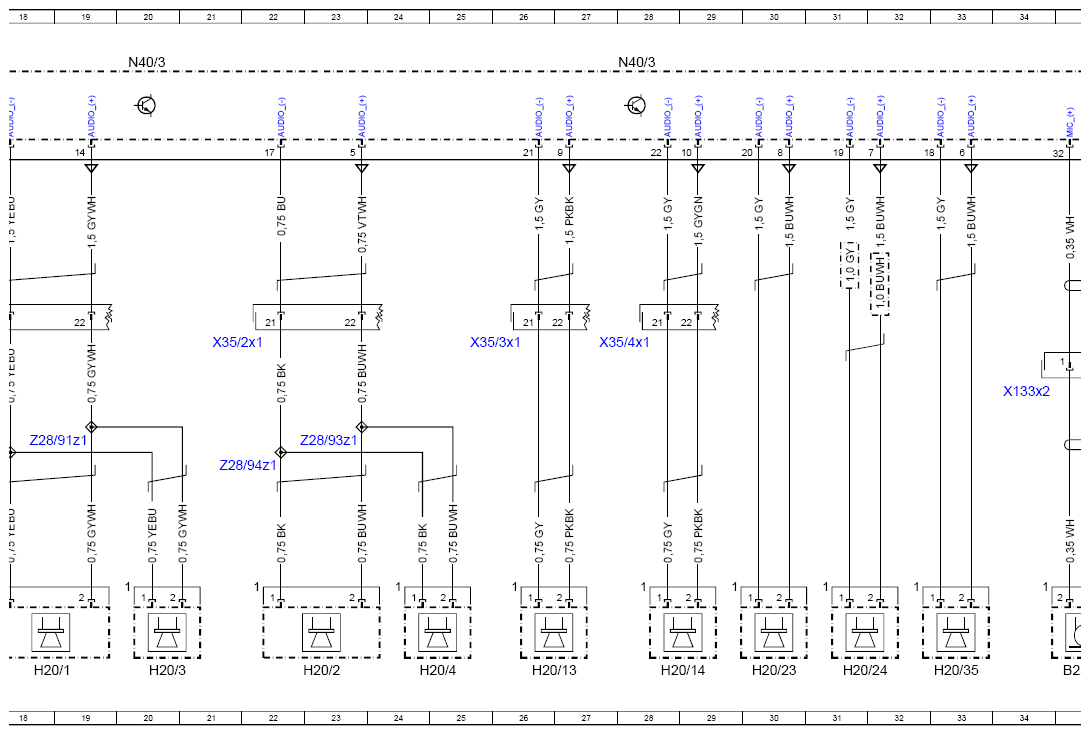

| H20/1 | Left front tweeter (Standard) | 18L |
| H20/13 | Left rear mid-range speaker (Standard) | 26L |
| H20/14 | Right rear mid-range speaker (Standard) | 28L |
| H20/2 | Right front tweeter (Standard) | 23L |
| H20/23 | Left front bass speaker (Standard) | 30L |
| H20/24 | Right front bass speaker (Standard) | 31L |
| H20/3 | Left front mid-range speaker (Standard) | 20L |
| H20/35 | Center rear bass speaker (Standard) | 33L |
| H20/4 | Right front mid-range speaker (Standard) | 24L |
| N112/9 | HERMES control unit | 14L |

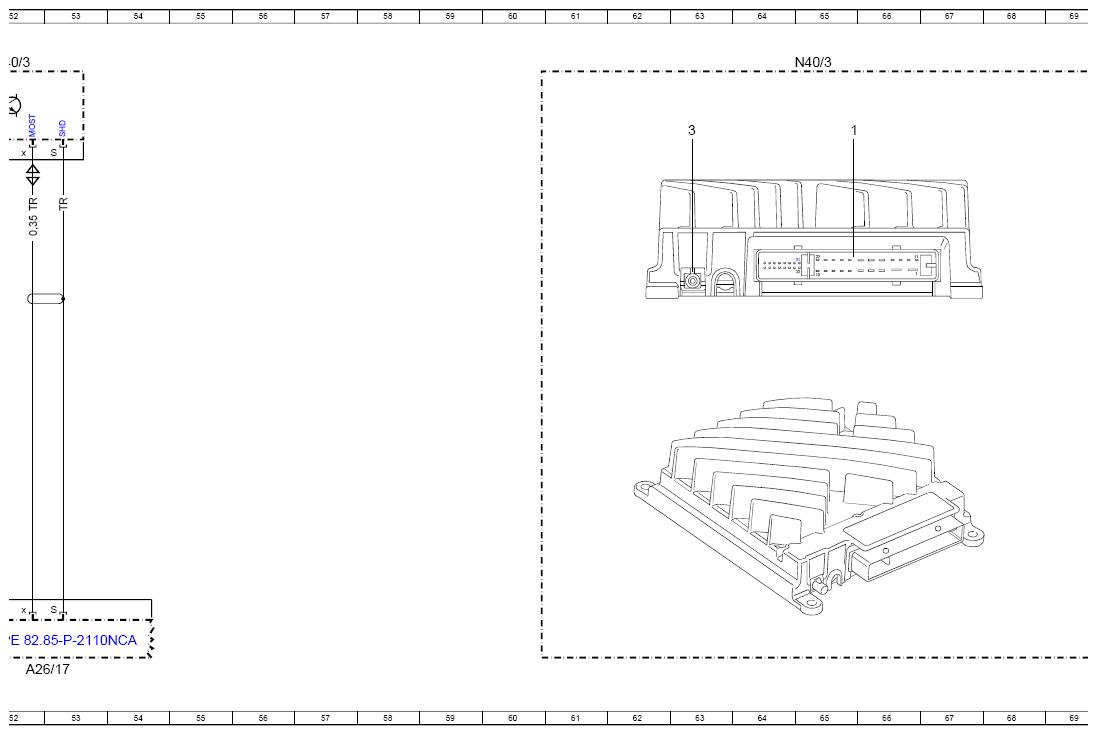

| N40/3 | Sound system amplifier control unit | 65A |
| N40/3 | Sound system amplifier control unit | 77A |
| N40/3 | Sound system amplifier control unit | 4A |
| N40/3 | Sound system amplifier control unit | 28A |
| N40/3 | Sound system amplifier control unit | 12A |
| N40/3 | Sound system amplifier control unit | 20A |
| N40/3 | Sound system amplifier control unit | 52A |
| N40/3 | Sound system amplifier control unit | 36A |
| N40/3 | Sound system amplifier control unit | 44A |

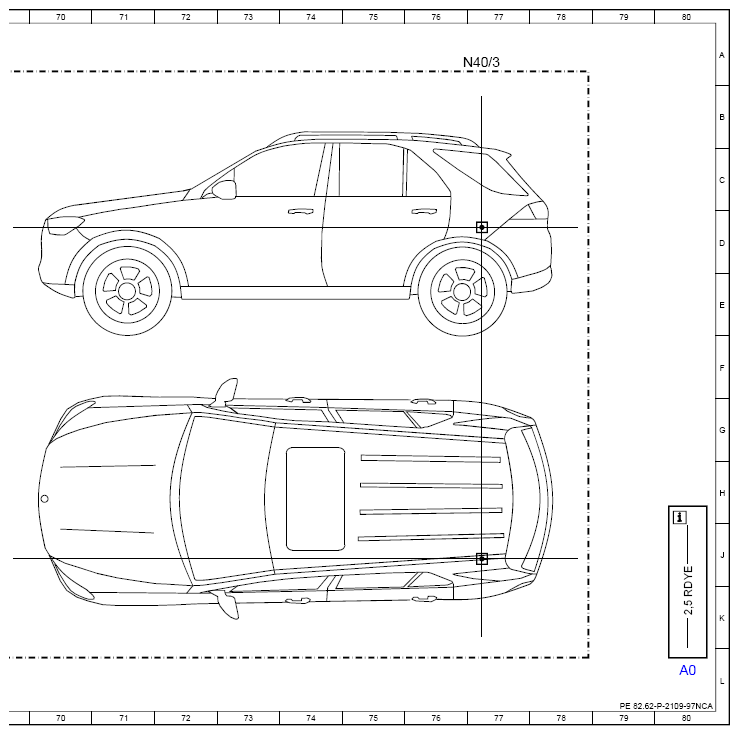

| W6 | Left wheel arch trunk ground point | 7E |
| W6 | Left wheel arch trunk ground point | 48L |
| X133x2 | Roof/vehicle interior electrical connector | 34F |
| X30/21 | Drive train CAN (CAN C1) potential distributor electrical connector | 10L |
| X35/1x1 | Left front door electrical connector | 17F |
| X35/2x1 | Right front door electrical connector | 21F |
| X35/3x1 | Left rear door electrical connector | 26F |
| X35/4x1 | Right rear door electrical connector | 28F |
| Z20/86z1 | Microphone screen connector sleeve | 36J |
| Z20/87z1 | Microphone screen connector sleeve | 39J |
| Z20/88z1 | Microphone screen connector sleeve | 42J |
| Z20/89z1 | Microphone screen connector sleeve | 45J |
| Z28/50z1 | Mute connector sleeve | 13G |
| Z28/91z1 | Left front door midrange speaker connector sleeve (+) | 19G |
| Z28/92z1 | Left front door midrange speaker connector sleeve (-) | 17H |
| Z28/93z1 | Right front door midrange speaker connector sleeve (+) | 23G |
| Z28/94z1 | Right front door midrange speaker connector sleeve (-) | 22H |
| Z87/16z1 | Microphone shielding connector sleeve | 36G |
| Z87/16z1 | Microphone shielding connector sleeve | 39G |
| Z87/16z1 | Microphone shielding connector sleeve | 42G |
| Z87/16z1 | Microphone shielding connector sleeve | 45G |
| Z87/39z1 | Microphone shielding connector sleeve | 36E |
| Z87/39z1 | Microphone shielding connector sleeve | 39E |
| Z87/39z1 | Microphone shielding connector sleeve | 42E |
| Z87/39z1 | Microphone shielding connector sleeve | 45F |
| Z87/40z1 | Microphone shielding connector sleeve | 36C |
| Z87/40z1 | Microphone shielding connector sleeve | 39C |
| Z87/40z1 | Microphone shielding connector sleeve | 42C |
| Z87/40z1 | Microphone shielding connector sleeve | 45C |
