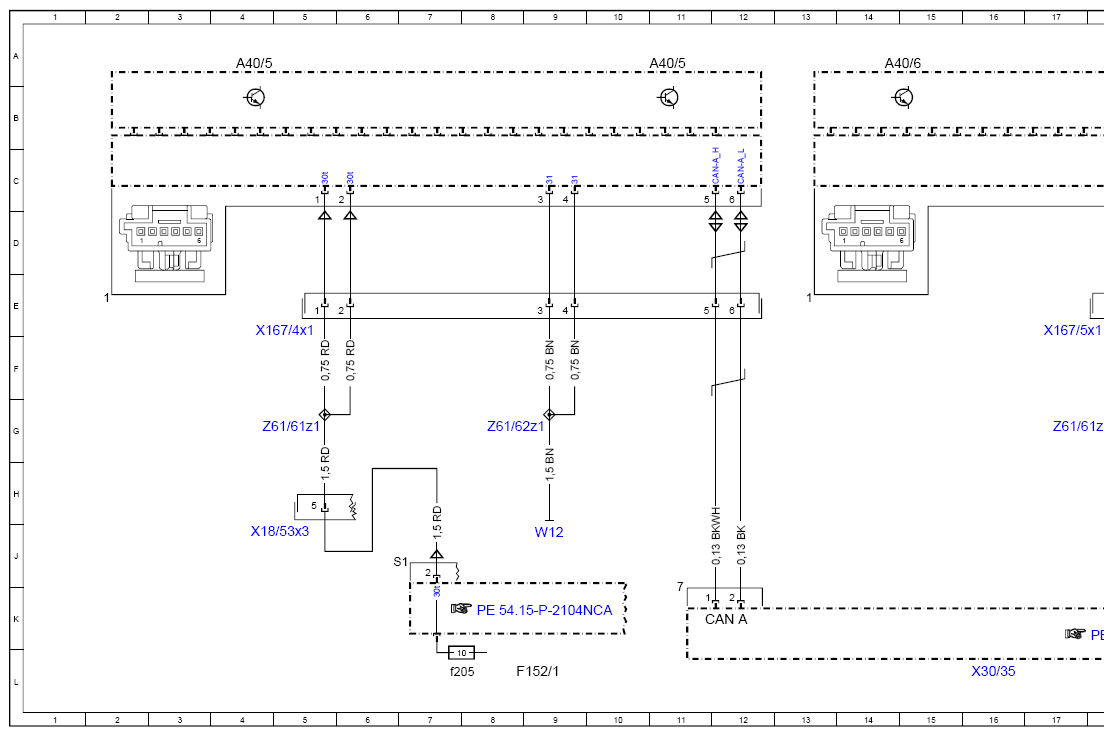

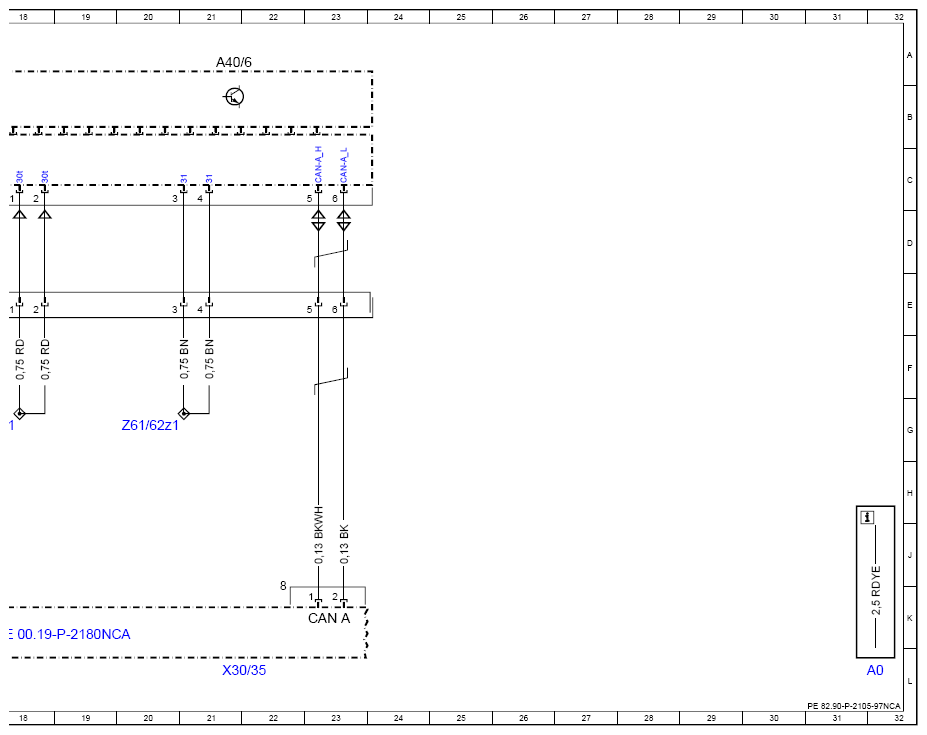

Wiring Diagram For Rear Display - PE82.90-P-2105-97NCA
Model 167 with code 864 (Rear compartment entertainment package) with code 866 (Preinstallation for entertainment and comfort features)
Rear passenger compartment display A40/5, A40/6
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A40/5 | Left rear display | 4A |
| A40/5 | Left rear display | 11A |
| A40/6 | Right rear display | 14A |
| A40/6 | Right rear display | 21A |
| CAN A | Telematics CAN | 12K |
| CAN A | Telematics CAN | 23K |
| F152/1 | Driver-side fuse and relay module | 9L |
| F152/1f205 | Fuse 205 | 7L |
| W12 | Ground point (center console) | 9J |
| X167/4x1 | Left Rear Seat Entertainment System electrical connector | 5E |
| X167/5x1 | Right Rear Seat Entertainment System electrical connector | 17E |
| X18/53x3 | Driver-side cockpit/frame floor assembly electrical connector | 5J |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 16L |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 21L |
| Z61/61z1 | Rear Seat Entertainment System circuit 30t end sleeve | 5G |
| Z61/61z1 | Rear Seat Entertainment System circuit 30t end sleeve | 17G |
| Z61/62z1 | Rear Seat Entertainment System circuit 31 end sleeve | 8G |
| Z61/62z1 | Rear Seat Entertainment System circuit 31 end sleeve | 20G |
