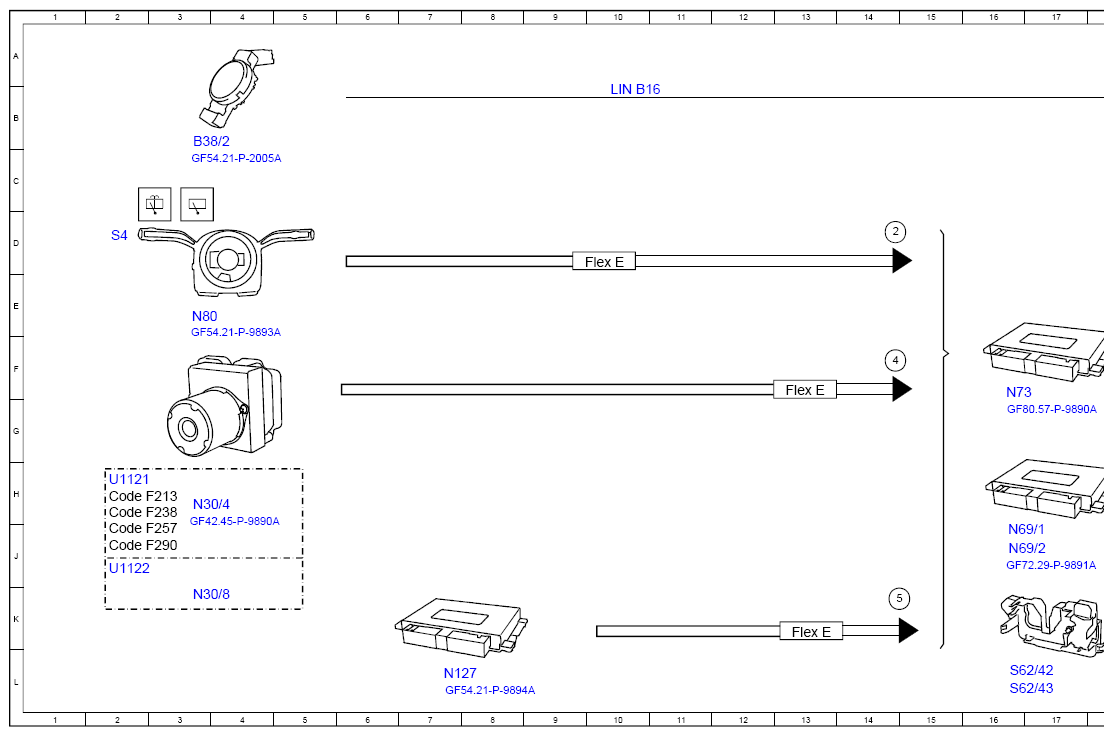

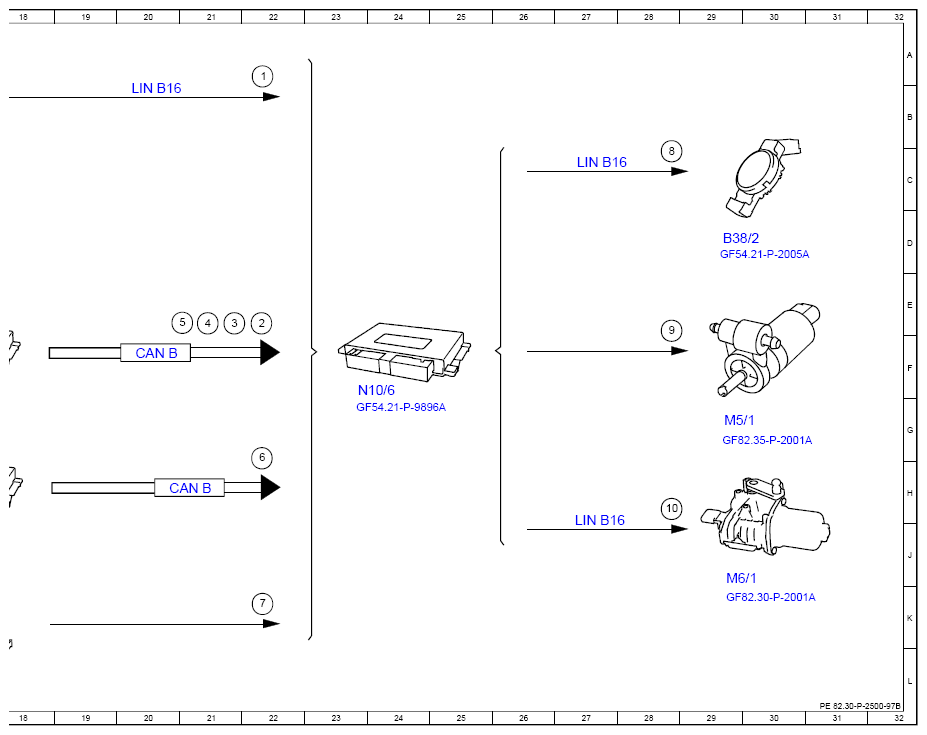

Function Schematic, Wipe And Wash Windshield - PE82.30-P-2500-97B
Model 167, 293
Model 213, 238, 257, 290
as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Wipe, request | 22A |
| 10 | Wipe request, signal | 29H |
| 2 | Combination switch, status | 14D |
| 2 | Combination switch, status | 22E |
| 3 | Circuit 15, status | 21E |
| 4 | Vehicle speed, signal | 21E |
| 4 | Vehicle speed, signal | 15E |
| 5 | Transmission position, signal | 15K |
| 5 | Transmission position, signal | 21E |
| 6 | Door rotary tumbler switch, status | 22G |
| 7 | Engine hood contact switch, status | 22J |
| 8 | Wipe sensitivity, signal | 28C |
| 9 | Windshield washer system pump, actuation | 28E |
| B38/2 | Rain/light sensor with additional functions | 4B |
| B38/2 | Rain/light sensor with additional functions | 29D |
| CAN B | Interior CAN | 21H |
| CAN B | Interior CAN | 20F |
| Flex E | Chassis FlexRay | 13K |
| Flex E | Chassis FlexRay | 13F |
| Flex E | Chassis FlexRay | 10D |
| LIN | Local Interconnect Network | 20B |
| LIN | Local Interconnect Network | 28H |
| LIN | Local Interconnect Network | 28C |
| LIN | Local Interconnect Network | 27H |
| M5/1 | Windshield washer system pump | 29G |
| M6/1 | Wiper motor | 29J |
| N10/6 | 24F | |
| N127 | Drivetrain control unit | 7L |
| N30/4 | Electronic Stability Program control unit | 3H |
| N30/8 | Regenerative braking system control unit | 3K |
| N69/1 | Driver door control unit | 16J |
| N69/2 | Front passenger door control unit | 16J |
| N73 | Electronic ignition switch control unit | 16F |
| N80 | Steering column module control unit | 3E |
| S4 | Combination switch | 2D |
| S62/42 | Right engine hood contact switch | 16L |
| S62/43 | Left engine hood contact switch | 16L |
| U1121 | Valid for model 167 | 2H |
| U1122 | Valid for model 293 | 2J |
