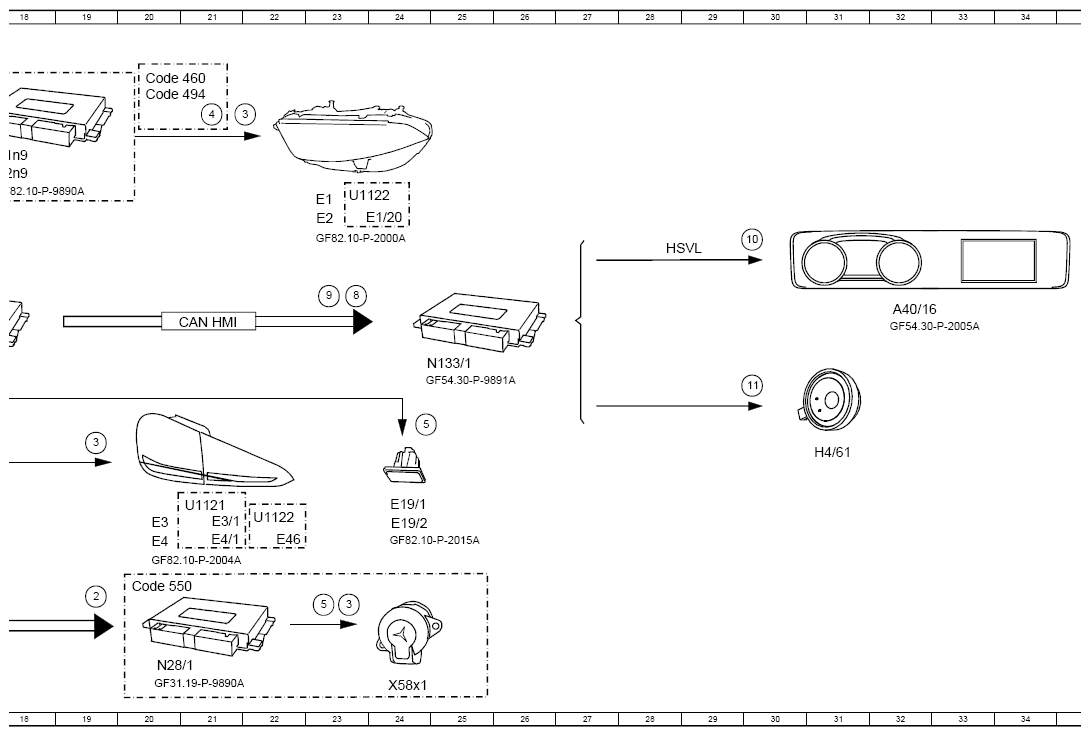

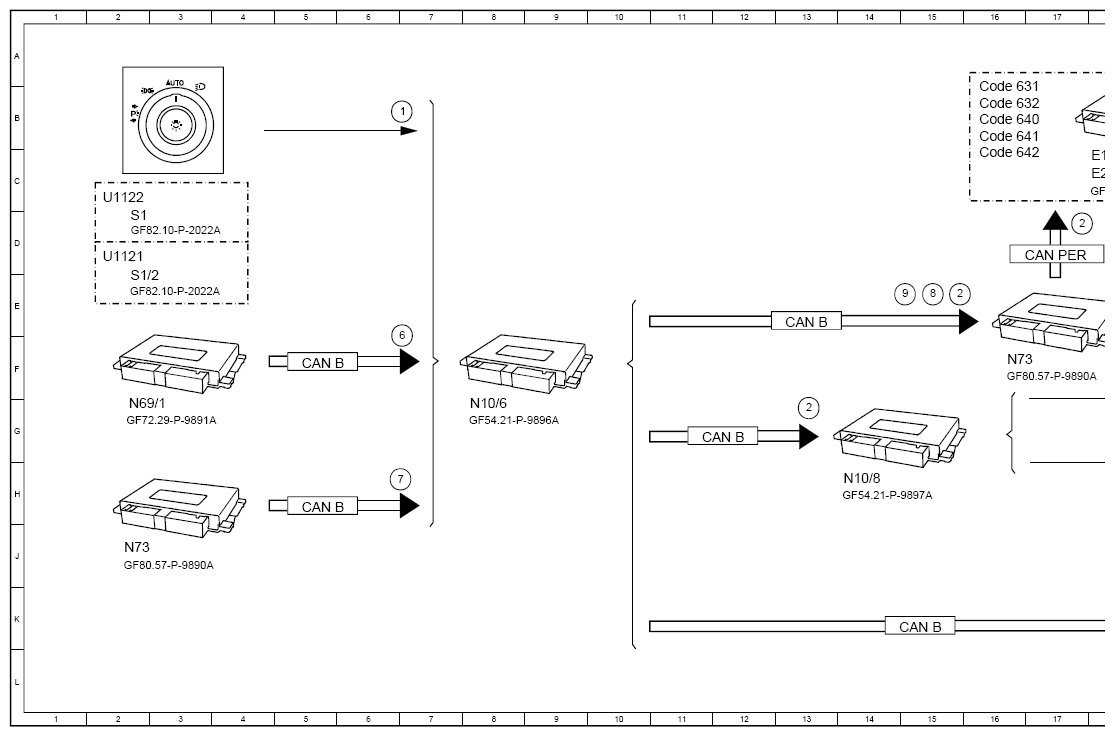

Function Schematic, Actuate Standing/Parking Lights - PE82.10-P-2503-97B
Model 167 Model 293
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Exterior lights switch, status | 7B |
| 10 | Image data, signal | 30D |
| 11 | Speaker, actuation | 30F |
| 2 | Standing and parking lights, request | 15E |
| 2 | Standing and parking lights, request | 17D |
| 2 | Standing and parking lights, request | 19K |
| 2 | Standing and parking lights, request | 13G |
| 3 | Standing and parking lights, actuation | 22B |
| 3 | Standing and parking lights, actuation | 19G |
| 3 | Standing and parking lights, actuation | 23K |
| 4 | Side marker light, actuation | 21B |
| 5 | License plate lamp, actuation | 24G |
| 5 | License plate lamp, actuation | 23K |
| 6 | Door rotary tumbler switch, status | 7F |
| 7 | Circuit 15, status | 7H |
| 8 | Instrument cluster message, request | 15E |
| 8 | Instrument cluster message, request | 24E |
| 9 | Warning tone, request | 14E |
| 9 | Warning tone, request | 23E |
| A40/16 | Head unit/instrument cluster display cluster | 32E |
| CAN B | Interior CAN | 5H |
| CAN B | Interior CAN | 13E |
| CAN B | Interior CAN | 5F |
| CAN B | Interior CAN | 12G |
| CAN B | Interior CAN | 15K |
| CAN HMI | User interface CAN | 21E |
| CAN PER | Peripherals CAN | 17D |
| Code 460 | Canada version | 20A |
| Code 494 | USA version | 20B |
| Code 550 | Trailer hitch | 20K |
| Code 631 | Static LED headlamp, left-hand traffic | 16B |
| Code 632 | Static LED headlamp, right-hand traffic | 16B |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 16B |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 16B |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 16C |
| E1 | Left front lamp unit | 23C |
| E1/20 | Center front lamp unit | 24D |
| E19/1 | Left license plate lamp | 24H |
| E19/2 | Right license plate lamp | 24J |
| E1n9 | Left headlamp control unit | 18C |
| E2 | Right front lamp unit | 23D |
| E2n9 | Right headlamp control unit | 18C |
| E3 | Left rear lamp unit | 20J |
| E3/1 | Inner left rear lamp unit | 21J |
| E4 | Right rear lamp unit | 20J |
| E4/1 | Inner right rear lamp unit | 21J |
| E46 | Trunk lid/liftgate lamp unit | 22J |
| H4/61 | Instrument cluster speaker | 31G |
| HSVL | High-speed video link | 28D |
| N10/6 | 8G | |
| N10/8 | 14H | |
| N133/1 | Instrument cluster control unit | 25F |
| N28/1 | Trailer recognition control unit | 20L |
| N69/1 | Driver door control unit | 2G |
| N73 | Electronic ignition switch control unit | 2J |
| N73 | Electronic ignition switch control unit | 16F |
| S1 | Exterior lights switch | 2D |
| S1/2 | Exterior lights and electric parking brake switch group | 2E |
| U1121 | Valid for model 167 | 2D |
| U1121 | Valid for model 167 | 21H |
| U1122 | Valid for model 293 | 2C |
| U1122 | Valid for model 293 | 23C |
| U1122 | Valid for model 293 | 22H |
| X58x1 | Trailer socket | 24L |
