Remove/Install Telephone Antenna - AR82.62-P-0011ME

Model 167 With Code 274 (Telephone antenna)

Courtesy of MERCEDES-BENZ USA

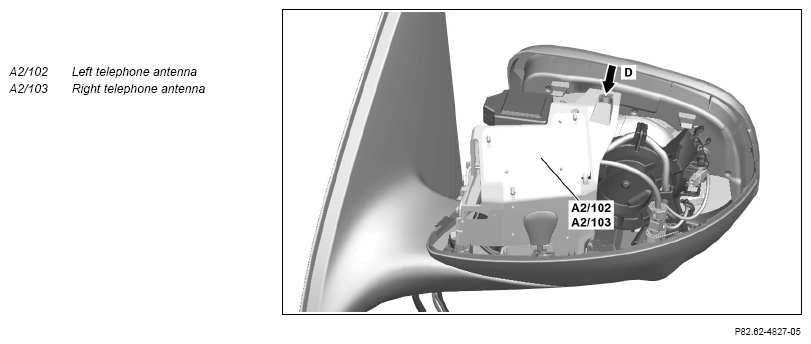

Shown on left outside mirror (M21/1)

Courtesy of MERCEDES-BENZ USA

Shown on left outside mirror (M21/1)

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove left outside mirror (M21/1) or right outside mirror (M21/2).		AR88.70-P-9000ME
2	Remove outside mirror trim.		AR88.70-P-9040ME

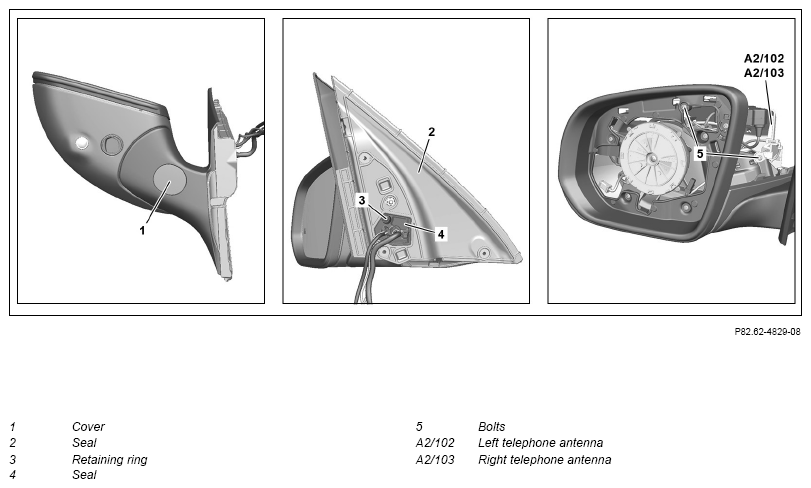

3	Unclip cover (1) with a suitable tool.
4	Remove seal (2).
5	Remove circlip (3).
6	Remove seal (4) far enough that the electric lines are accessible.	Do not crush or kink or subject electric lines to tension. This will result in damage to the electric lines and can impair their function.
7	Remove bolts (5).
8	Locate and expose electric line of telephone antenna (A2/102 or A2/103).

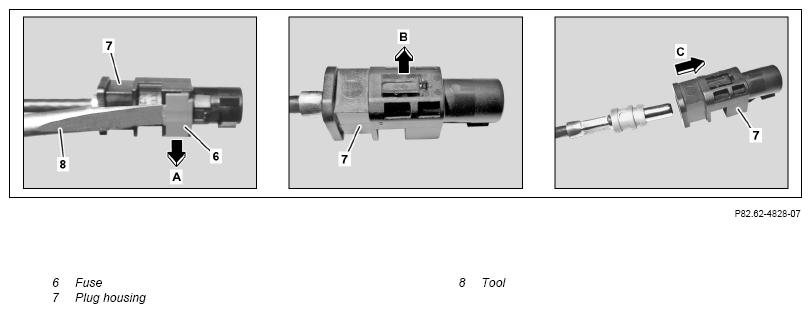

9	Remove retainer (6) at plug housing (7) of electric line of telephone antenna (A2/102 or A2/103) with a suitable tool (8) (arrow A).
10	Release plug housing (7) (arrow B) and disconnect (arrow C).
11	Unclip telephone antenna (A2/102 or A2/103) (arrow D) and remove upward with electric line.	Do not crush or kink electric line or subject it to tension. This will result in damage to the electric line and can impair its functional capability. Ensure that the telephone antenna (A2/102 or A2/103) is seated correctly.
12	Install in the reverse order.
