Install Exit And Warning Lamp With Animation Projector On Front Door - AZ82.20-P-0030-01ME

Model 167

Fig 1: Identifying New Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

The following work procedure describes the retrofit on the left side of the vehicle. Retrofitting on the right side of the vehicle is performed in the same way.

The animation projectors are marked in the area of the A-object number with an "L" for left side and "R" for the right side.

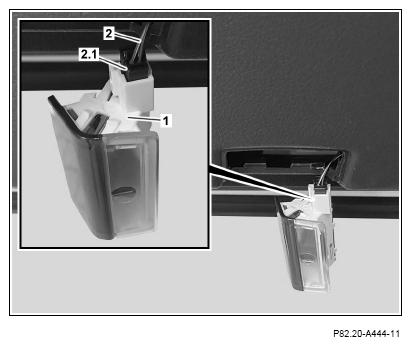

1. Attach black 2-pin coupling (2.1) of vehicle wiring harness (2) to exit and warning lamp with animation projector (1).
2. Switch on warning and exit illumination at overhead control panel control unit.

   The heat sink fitted to the exit and warning lamp with animation projector (1) gets very hot.

   If the exit and warning lamp with animation projector (1) does not light up,

   ↓

   exchange contact cavity assignment of electric lines at black 2-pin coupling (2.1).

   The appropriate tool is available in the basic wiring harness repair kit or the supplementary passenger car wiring harness repair kit.

3. Switch off warning and exit illumination at overhead control panel control unit.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

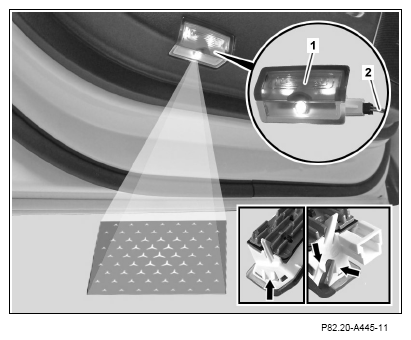

4. Install exit and warning lamp with animation projector (1) into cutout of door trim.

   Do not pinch or crush vehicle wiring harness (2). Otherwise, the vehicle wiring harness (2) may be damaged and system failures may occur.

   Install exit and warning lamp with animation projector (1) with the white diffusor lens facing downward. Ensure that catch hooks (arrows) are seated and engaged correctly in the door trim.
