Check, Adjust Low Beams - AP82.10-P-8263FD

Model 167

with code 460 (Canada version)

with code 640 (SAE dynamic LED headlamps, right-hand traffic)

Except Code 632 (Headlamps, LED, static, right-side traffic)

Except Code 642 (Dynamic LED headlamps, right-hand traffic)

Model 167

with code 494 (US version)

with code 640 (SAE dynamic LED headlamps, right-hand traffic)

Except Code 632 (Headlamps, LED, static, right-side traffic)

Except Code 642 (Dynamic LED headlamps, right-hand traffic)

Shown on model 167.121

Courtesy of MERCEDES-BENZ USA

Dynamic LED headlamp, SAE version, shown on model 167

Courtesy of MERCEDES-BENZ USA

Light gradient for diagnostic light pattern

Courtesy of MERCEDES-BENZ USA

Shown on model 167.119

Courtesy of MERCEDES-BENZ USA

	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
	General information on checking/correcting headlamp adjustment		AH82.10-P-1000-01A
	Preparatory activity
1	Prepare vehicle for checking/correcting headlamp adjustment.		AP82.10-P-8260-10L
2	Determine degree of inclination for main headlamps. Notes on determining headlamp aiming values	The degree of inclination for the main headlamps is specified on the model plate on the B-pillar on the passenger side.	AH82.10-P-1005-01A

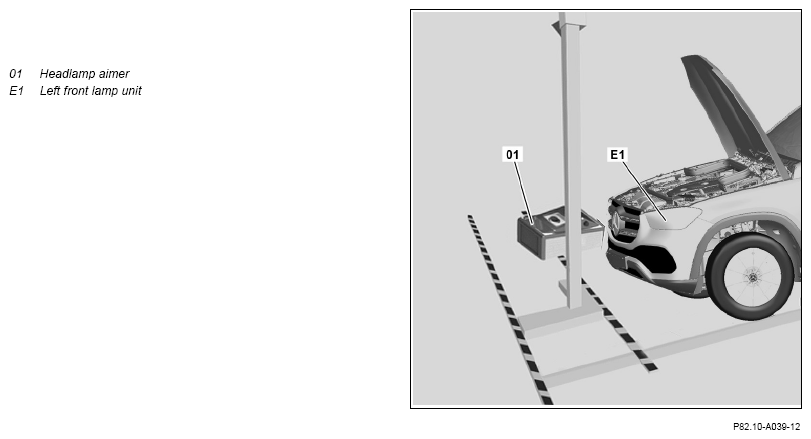

3	Adjust specified degree of inclination for main headlamps at headlamp adjuster (01).
	000 588 11 21 00 Adjustment device		WS82.00-P-0151B
4	Switch on low beams.	When testing and adjusting the low beams, make sure that the extended fog light function is not active.
5	Open hood.

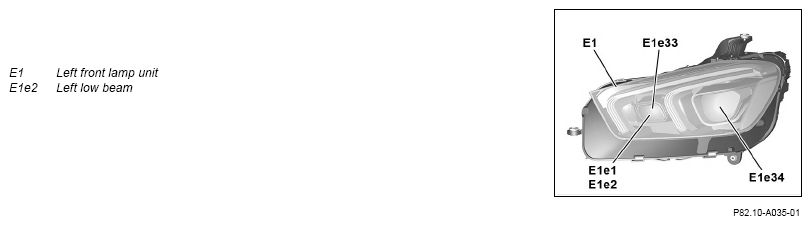

	Check and, if necessary, adjust (checking and adjusting the low beams is described at the left low beam (E1e2) in the left front lamp unit (E1), use procedure for left side for right side too.)
6	Check height adjustment of left low beam (E1e2), adjust if necessary.
	000 588 11 21 00 Adjustment device		WS82.00-P-0151B

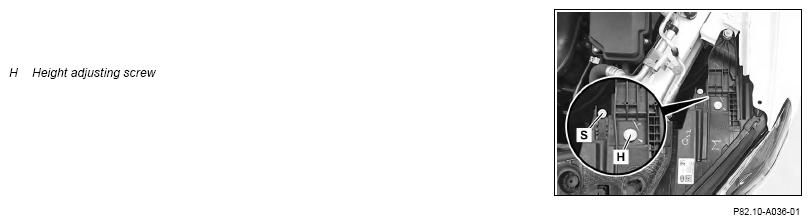

		When the diagnostic light pattern is switched on and the height adjustment is correct, the horizontal light/dark boundary (1) of the left low beam (E1e2) must be congruent with the datum line for height adjustment (2) in the headlamp adjuster (01) respectively to the left of the center mark (3). The colored area of the light-dark boundary (1) of the left low beam headlamp (E1e2) must be above the reference line for the height adjustment (2). If the height adjustment of the left low beam (E1e2) is correct with the diagnostic light pattern switched on. ↓ No further check is necessary; continue with operation step 7. If the height adjustment of the left low beam (E1e2) is not correct with the diagnostic light pattern switched on. ↓ Turn the adjustment screw for the height adjustment (H) to correct the height adjustment of the left low beam headlamp (E1e2).
7	Check lateral adjustment of left low beam (E1e2).
	000 588 11 21 00 Adjustment device		WS82.00-P-0151B
		When the diagnostic light pattern is switched on and the lateral adjustment is correct, the vertical light/dark boundary (1) of the left low beam (E1e2) must run upward at a 900 angle relative to the datum line for the height adjustment (2) in the headlamp adjuster (01) starting at the center mark (3). The colored area of the vertical light-dark boundary (1) of the left low beam headlamp (E1e2) must be to the left of the center mark (3). If the lateral adjustment of the left low beam (E1e2) is correct. ↓ No further check necessary, continue with operation step 8. If the lateral adjustment of the left low beam (E1e2) is not correct. ↓ Subject to separate repair order check and correct installation position of the corresponding headlamp; then proceed with operation steps 1 to 7 again.
		Model 167 with code 460 (Canada version) with code 640 (SAE dynamic LED headlamps, right-hand traffic) except code 632 (Headlamps, LED, static, right-side traffic) except code 642 (Dynamic LED headlamps, right-hand traffic) Model 167 with code 494 (US version) with code 640 (SAE dynamic LED headlamps, right-hand traffic) except code 632 (Headlamps, LED, static, right-side traffic) except code 642 (Dynamic LED headlamps, right-hand traffic) Fender to headlamp	*BE60.00-P-1005-01LA
		Model 167 with code 460 (Canada version) with code 640 (SAE dynamic LED headlamps, right-hand traffic) except code 632 (Headlamps, LED, static, right-side traffic) except code 642 (Dynamic LED headlamps, right-hand traffic) Model 167 with code 494 (US version) with code 640 (SAE dynamic LED headlamps, right-hand traffic) except code 632 (Headlamps, LED, static, right-side traffic) except code 642 (Dynamic LED headlamps, right-hand traffic) Bumper to headlamp at bottom	*BE60.00-P-1006-01LA
		Model 167 with code 460 (Canada version) with code 640 (SAE dynamic LED headlamps, right-hand traffic) except code 632 (Headlamps, LED, static, right-side traffic) except code 642 (Dynamic LED headlamps, right-hand traffic) Model 167 with code 494 (US version) with code 640 (SAE dynamic LED headlamps, right-hand traffic) except code 632 (Headlamps, LED, static, right-side traffic) except code 642 (Dynamic LED headlamps, right-hand traffic) Bumper to headlamp, side	*BE60.00-P-1007-01LA
		Model 167 with code 460 (Canada version) with code 640 (SAE dynamic LED headlamps, right-hand traffic) except code 632 (Headlamps, LED, static, right-side traffic) except code 642 (Dynamic LED headlamps, right-hand traffic) Model 167 with code 494 (US version) with code 640 (SAE dynamic LED headlamps, right-hand traffic) except code 632 (Headlamps, LED, static, right-side traffic) except code 642 (Dynamic LED headlamps, right-hand traffic) Engine hood to headlamp	*BE60.00-P-1008-01LA
	Finishing activity
8	Reset switch positions to input condition.	Only if the high beam setting is not to be checked afterwards.
9	Close hood.
