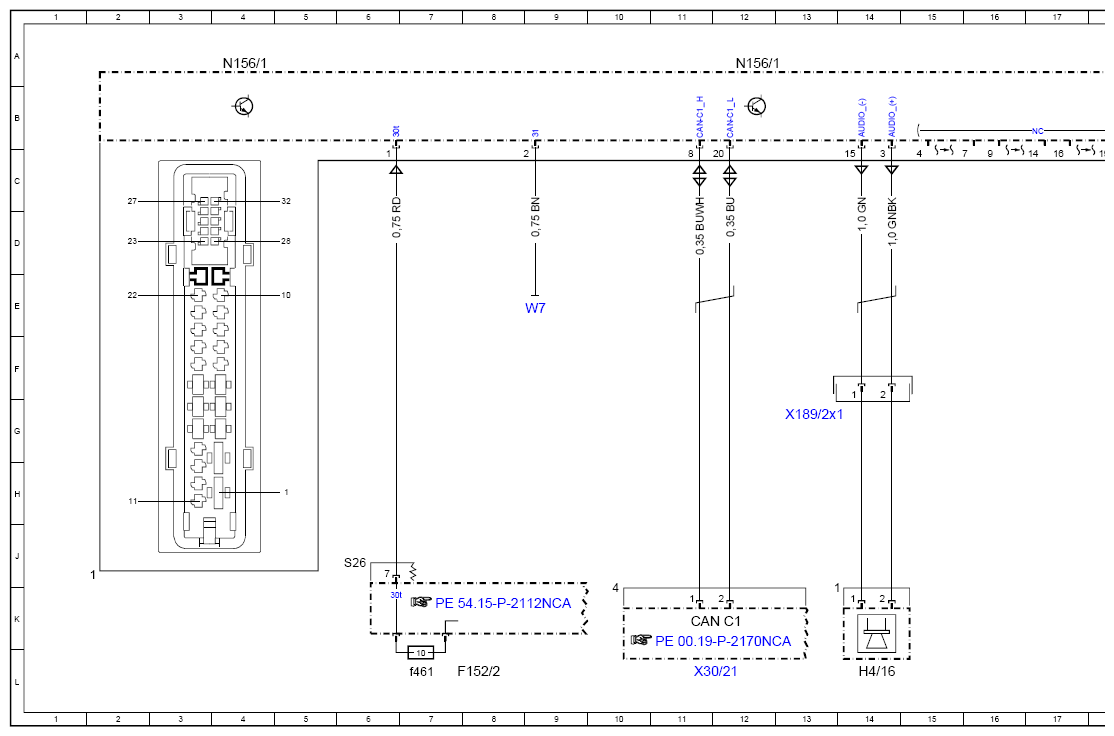

Wiring Diagram Of Engine Sound Control Unit - PE54.21-P-2148-97NCA

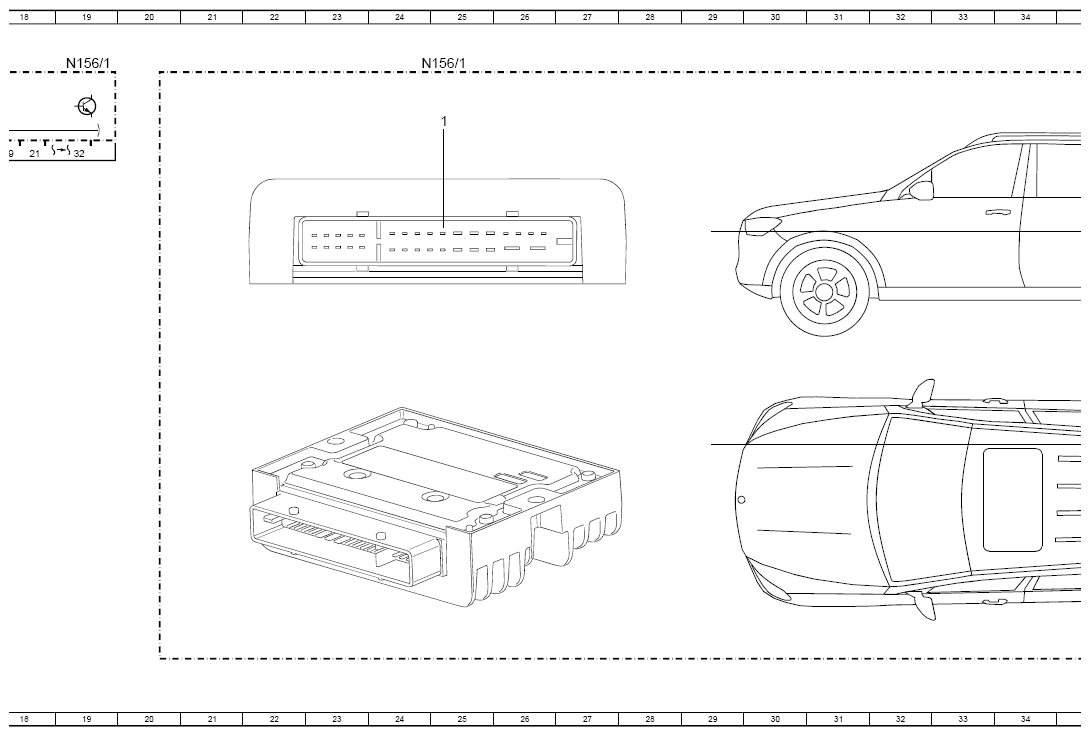

Model 167 with code U68 (Active engine sound generator) Control unit N156/1
| Code: | Designation: | Position: |
|---|---|---|

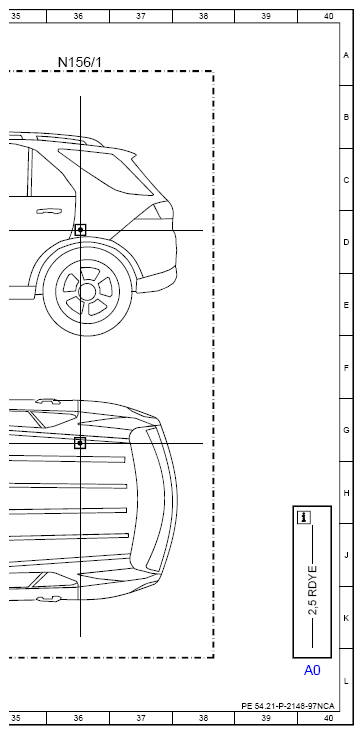

| A0 | Use of wiring diagrams | 40L |
| CAN C1 | Drive train CAN | 11K |
| F152/2 | Rear fuse and relay module | 8L |
| F152/2f461 | Fuse 461 | 7L |
| H4/16 | Sound generator | 14L |
| N156/1 | Active engine sound generator control unit | 4A |
| N156/1 | Active engine sound generator control unit | 25A |
| N156/1 | Active engine sound generator control unit | 36A |
| N156/1 | Active engine sound generator control unit | 12A |
| N156/1 | Active engine sound generator control unit | 19A |
| W7 | Right wheel house trunk ground point | 9E |
| X189/2x1 | Sound generator electrical connector | 13G |
| X30/21 | Drive train CAN (CAN C1) potential distributor electrical connector | 11L |
