Wiring Diagram For Instrument Cluster Control Unit - PE54.30-P-2110-97NCA
Model 167 Control unit N133/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 64L |
| A26/17 | Head unit | 22L |
| A40/12 | Head-up display | 35L |
| A40/16 | Head unit/instrument cluster display cluster | 28L |
| A40/16 | Head unit/instrument cluster display cluster | 16L |
| CAN HMI | User interface CAN | 10K |
| Code 463 | Head-up display | 34D |
| Code L | LEFT-HAND DRIVE | 6E |
| Code L | LEFT-HAND DRIVE | 26D |
| Code R | RIGHT-HAND DRIVE | 6E |
| Code R | RIGHT-HAND DRIVE | 26D |
| F152/1 | Driver-side fuse and relay module | 6L |
| F152/1f207 | Fuse 207 | 6L |
| H4/61 | Instrument cluster speaker | 13L |

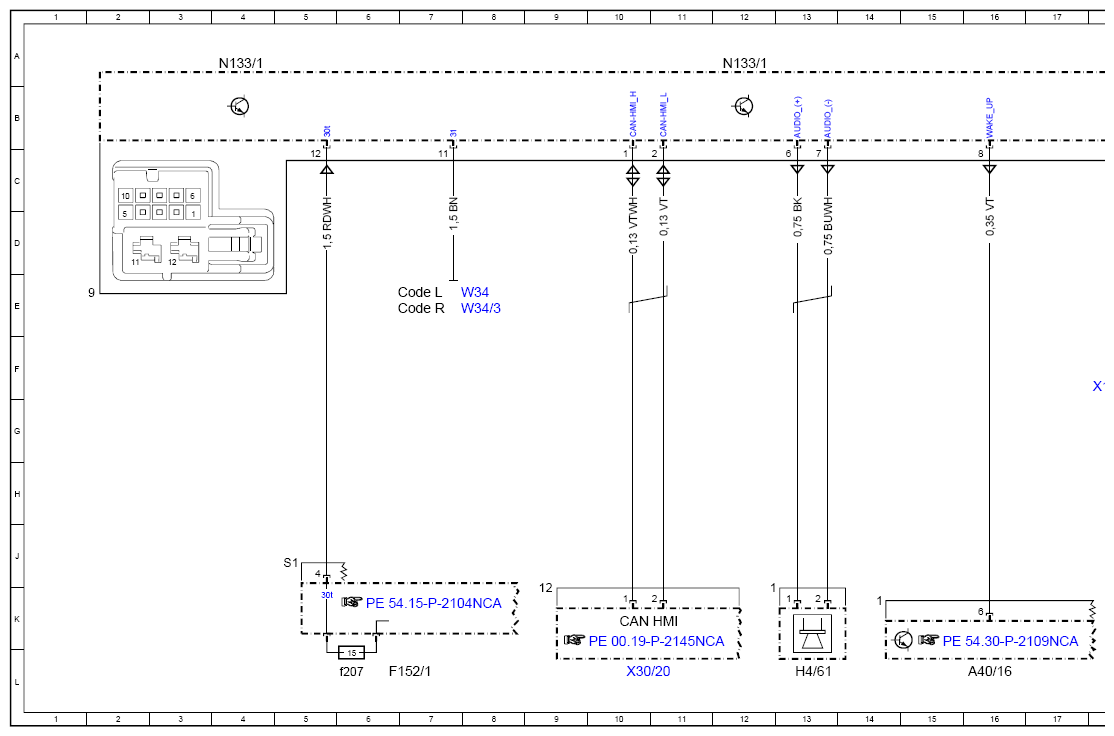

| N133/1 | Instrument cluster control unit | 4A |

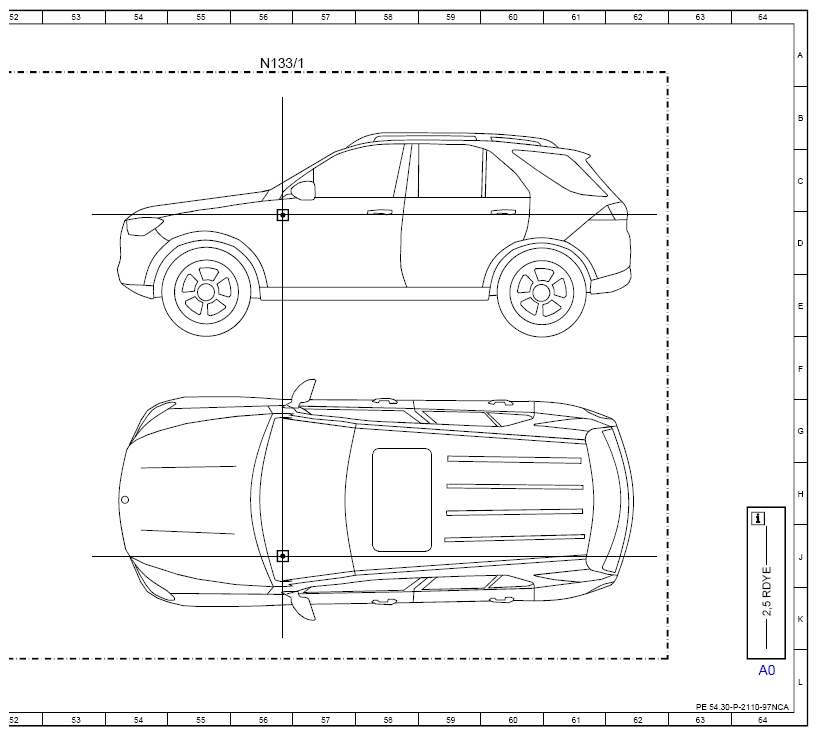

| N133/1 | Instrument cluster control unit | 49A |
| N133/1 | Instrument cluster control unit | 56A |
| N133/1 | Instrument cluster control unit | 12A |

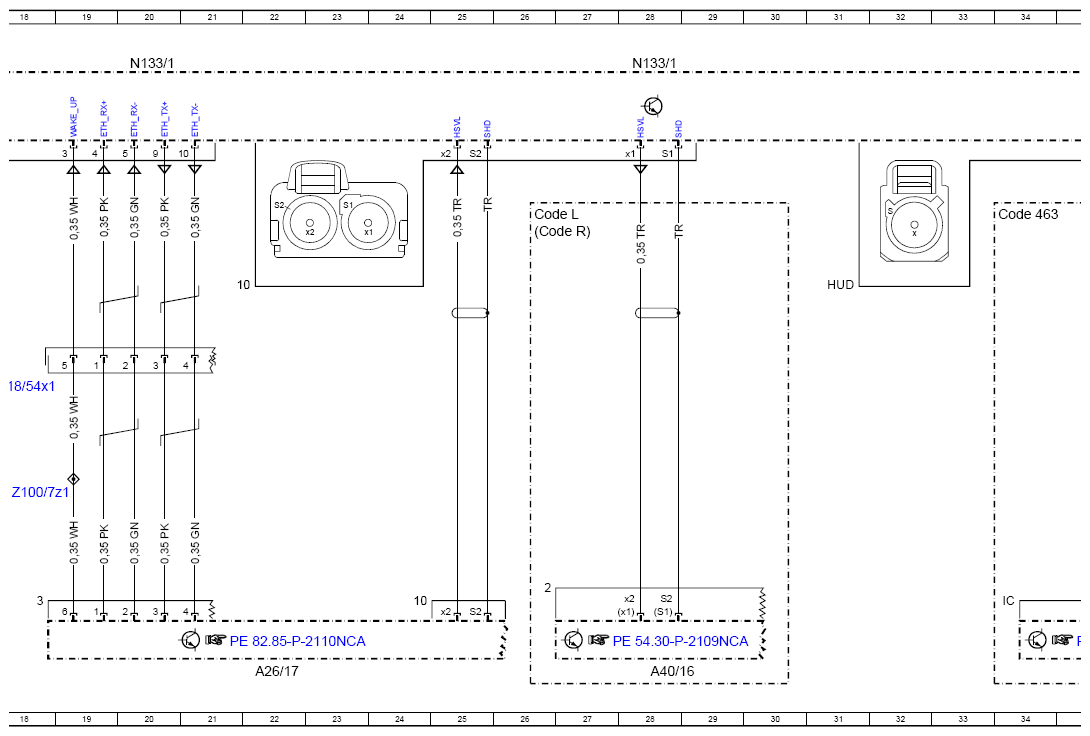

| N133/1 | Instrument cluster control unit | 20A |
| N133/1 | Instrument cluster control unit | 28A |

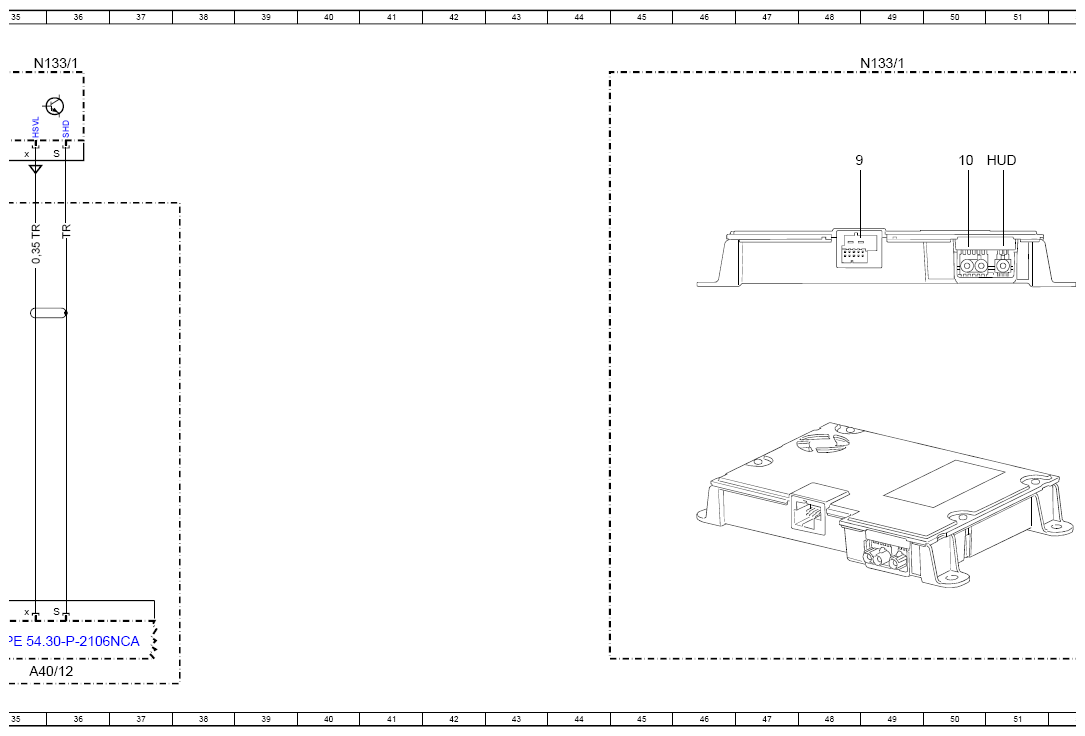

| N133/1 | Instrument cluster control unit | 35A |
| W34 | Left footwell ground point | 7E |
| W34/3 | Right footwell ground point | 7E |
| X18/54x1 | Passenger-side cockpit/frame floor assembly electrical connector | 18F |
| X30/20 | User interface CAN (CAN HMD potential distributor electrical connector | 10L |
| Z100/7z1 | Wake-up signal connector sleeve | 18H |
