Remove/Install Electric Plug For Electropneumatic Controller Unit - AR54.18-P-0016ME

Model 167

With Code 489 (AIRMATIC Dual Control/semi-active air suspension)

except code 490 (Electrohydraulic suspension)

Model 167

With Code 489 (AIRMATIC Dual Control/semi-active air suspension)

With Code 490 (Electrohydraulic suspension)

Model 206

With Code 480 (Self-levelling suspension)

Model 223, 296, 297

Model 254

With Code 480 (Self-levelling suspension)

Model 254

With Code 489 (AIRMATIC Dual Control/semi-active air suspension)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove
1	Disconnect ground line from battery.	Model 254 with code 480 (Self-levelling suspension)	AR54.10-P-0051WTC
		Model 254 with code 489 (AIRMATIC Dual Control/semi-active air suspension)
		Model 296, 297	AR54.10-P-0051EQS
		Model 206 with code 480 (Self-levelling suspension)	AR54.10-P-0051WT
		Model 223	AR54.10-P-0051S
		Model 167 with code 489 (AIRMATIC Dual Control/semi-active air suspension) except code 490 (Electrohydraulic suspension) Model 167 with code 489 (AIRMATIC Dual Control/semi-active air suspension) with code 490 (Electrohydraulic suspension)	AR54.10-P-0003ME
2	Disconnect electrical connector from electropneumatic controller unit.	Model 296, 297	AR32.22-P-2027EQS
		Model 206 with code 480 (Self-levelling suspension)	AR32.22-P-2027WT
		Model 254 with code 480 (Self-levelling suspension) Model 254 with code 489 (AIRMATIC Dual Control/semi-active air suspension)
		Model 223	AR32.22-P-2027S
		Model 167 with code 489 (AIRMATIC Dual Control/semi-active air suspension) except code 490 (Electrohydraulic suspension) Model 167 with code 489 (AIRMATIC Dual Control/semi-active air suspension) with code 490 (Electrohydraulic suspension)	AR32.20-P-0010ME

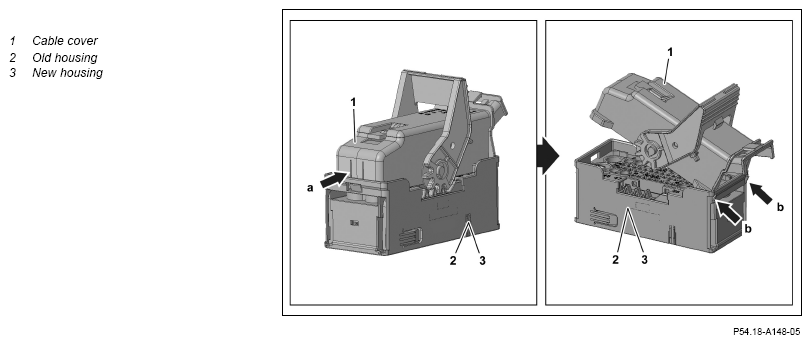

3	Release catch hook (arrow a), extend cable cover (1) out of guides (arrows b) and remove from old housing (2).
	Install

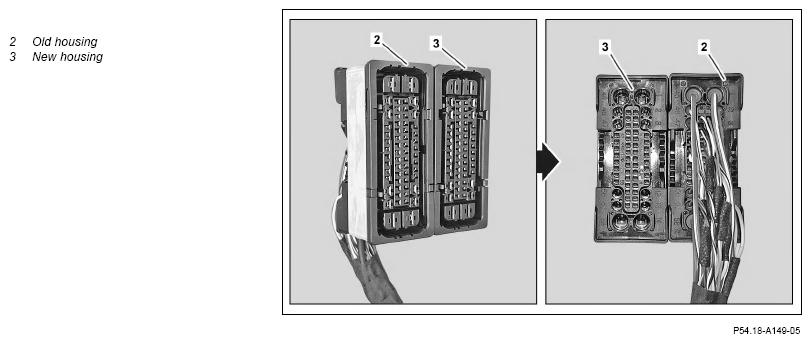

4	Join new housing (3) to old housing (2) with suitable tape as shown.
5	Transfer contact sockets from old housing (2) of plug into new housing (3) of plug.		AR54.18-P-0017-01ME
		Once transferred, the contact sockets may no longer be removed. Otherwise, the mat seal will be damaged and the new housing (3) will have to be replaced. Transfer the contact sockets individually one after the other. Otherwise, it may lead to confusion. Pay attention to the correct plug variant.
		MCP 2.8_/Fl. blade 2.8_/JPT/SPT	Fig 1
		MCP 1.2_blade If a contact socket is damaged, ↓ replace the contact socket.	Fig 2
		Contact sockets of the following types are installed: Type AMP MCP 1.2 CB Type AMP MCP 2.8 Type AMP MCP 6.3/4.8K	AR00.19-P-0100A
6	Remove tape from new housing (3) and old housing (2).
7	Insert cable cover (1) into guides (arrows b) and latch into place on new housing (3) (arrow a).
8	Attach electrical connector to electropneumatic controller unit.	Model 296, 297	AR32.22-P-2027EQS
		Model 167 with code 489 (AIRMATIC Dual Control/semi-active air suspension) except code 490 (Electrohydraulic suspension) Model 167 with code 489 (AIRMATIC Dual Control/semi-active air suspension) with code 490 (Electrohydraulic suspension)	AR32.20-P-0010ME
		Model 223	AR32.22-P-2027S
		Model 206 with code 480 (Self-levelling suspension) Model 254 with code 480 (Self-levelling suspension) Model 254 with code 489 (AIRMATIC Dual Control/semi-active air suspension)	AR32.22-P-2027WT
9	Connect ground line to battery.	Model 296, 297	AR54.10-P-0051EQS
		Model 167 with code 489 (AIRMATIC Dual Control/semi-active air suspension) except code 490 (Electrohydraulic suspension) Model 167 with code 489 (AIRMATIC Dual Control/semi-active air suspension) with code 490 (Electrohydraulic suspension)	AR54.10-P-0003ME
		Model 223	AR54.10-P-0051S
		Model 206 with code 480 (Self-levelling suspension)	AR54.10-P-0051WT
		Model 254 with code 480 (Self-levelling suspension) Model 254 with code 489 (AIRMATIC Dual Control/semi-active air suspension)	AR54.10-P-0051WTC
