Retrofit Wiring Harness For Mercedes-Benz Dashcam At Front - AZ54.71-P-0002-01ME
Model 167
| Topical note | Notes on the use of paint scraping nuts on ground connections | AH00.19-P-1000-20A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on retrofitting electrical/optical lines | AH82.00-P-0000-01A |
| Number | Designation | Model 167 | ||
|---|---|---|---|---|
| BA00.19-P-1033-01M | Left footwell ground point | W34 | Nm | 10 |
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1144-02A | Adhesive tape roll, non-woven Tesa tape, 50 meters, 50 mm wide | A 008 989 50 85 09 |

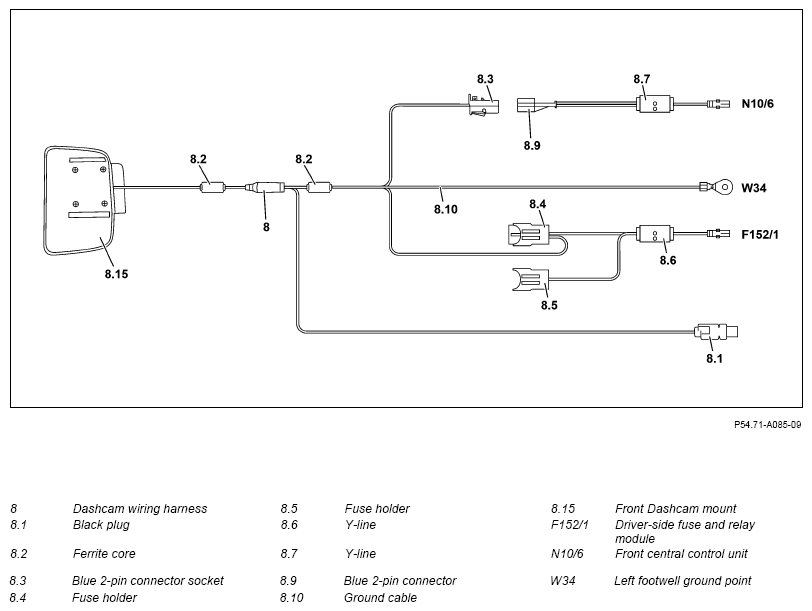

Connection scheme

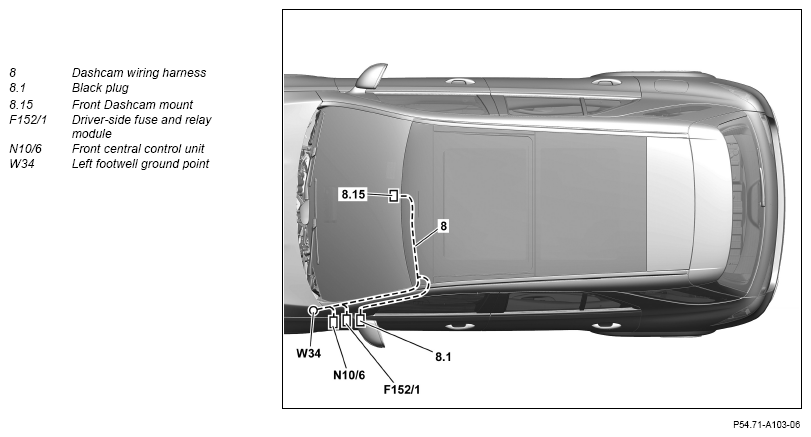

Routing diagram

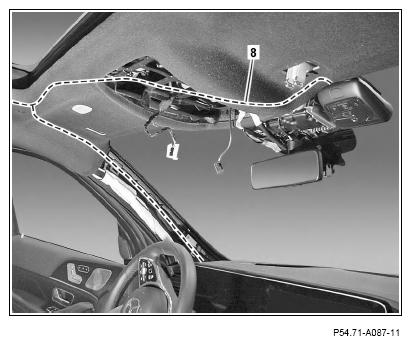

- Route Dashcam wiring harness (8) from front Dashcam mount under roof lining towards left to A-pillar.

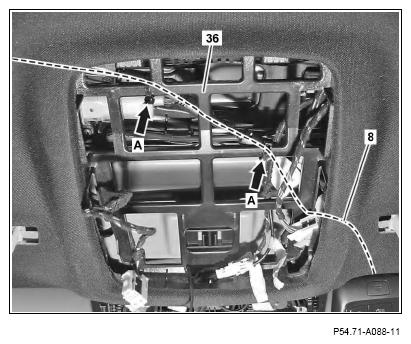

- Fasten ferrite core of Dashcam wiring harness (8) to overhead control panel mount (36) using cable ties (arrows A).

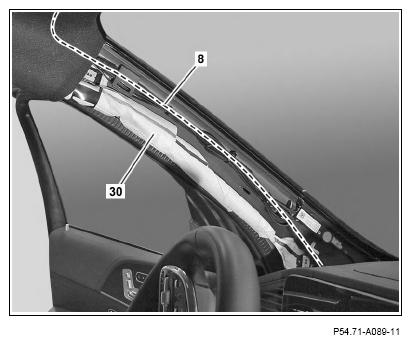

- Route the three individual lines of the Dashcam wiring harness (8) above the window airbag (30) up to the footwell.
Route the three individual lines of the Dashcam wiring harness (8) behind the crossmember for the instrument panel.
- Route ground line (8.10) of Dashcam wiring harness to left footwell ground point (W34) and connect.
- Remove violet connector socket (MR2) at front central control unit (N10/6).
- Remove gray 21-pin connector socket insert from violet connector socket (MR2).
- Remove line (20) from contact cavity "29" of gray 21-pin connector socket insert (19).
or the supplementary passenger car wiring harness repair kit
- Install line (20) into free contact cavity of blue 2-pin connector socket (8.3) of Dashcam wiring harness (8).
- Lock blue 2-pin connector socket (8.3).
- Install line (8.8) of Y-line (8.7) into contact cavity "29" of gray 21-pin connector socket insert (19).
- Install gray 21-pin connector socket insert into violet connector socket (MR2).
- Attach violet connector socket (MR2) to front central control unit (N10/6).
- Connect blue 2-pin connector socket (8.3) of Dashcam wiring harness (8) to blue 2-pin plug (8.9) of Y-line (8.7).
- Remove electrical fuse (29) from slot 213 (arrow B) of driver fuse and relay module (F152/1).
The fuse rating of the electrical fuse (29) is 20 A.
- Remove lock (24) from driver fuse and relay module (F152/1).

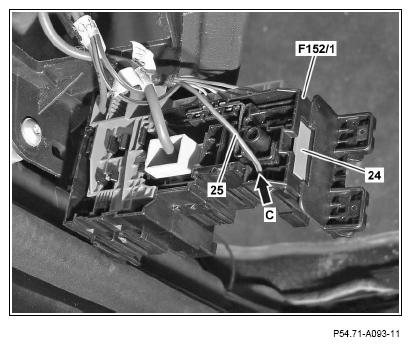

- Remove red/black line (25) from contact cavity "8" (arrow C) of driver fuse and relay module (F152/1).

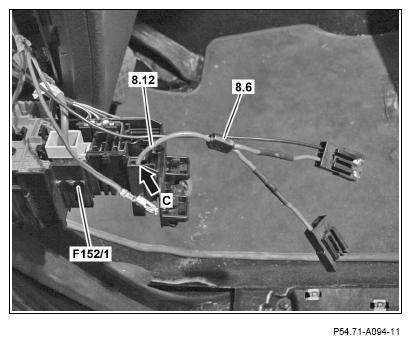

- Install red line (8.12) of Y-line (8.6) into contact cavity "8" (arrow C) of driver fuse and relay module (F152/1).

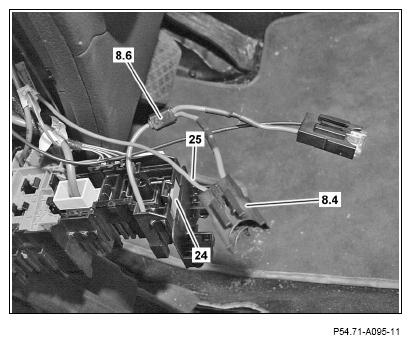

- Install removed red/black line (25) into free contact cavity of fuse holder (8.4) of Y-line (8.6).
- Attach lock (24) to driver fuse and relay module.
- Install lock (8.13) into fuse holder (8.4) (arrow D).
- Install electrical fuse (29) into fuse holder (8.4).
- Plug both fuse holders (8.4, 8.5) of Dashcam wiring harness (8) together.

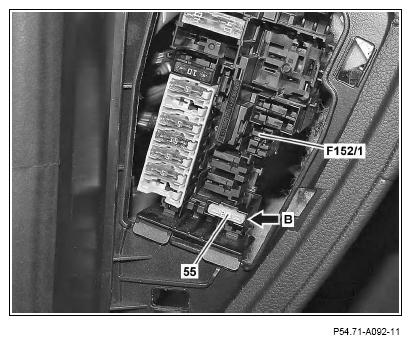

- Install the electrical fuse (55) included in the parts kit into slot 213 (arrow B) of the driver fuse and relay module (F152/1).
- Insert black plug (8.1) of Dashcam wiring harness (8) into pocket (40) made of felt.
- Fasten pocket (40) to Dashcam wiring harness (8) using fabric tape (41).
- Route line branch-off for rear Dashcam up to installation location of driver fuse and relay module.
Route line branch-off for rear Dashcam along A-pillar in front of instrument panel crossmember.

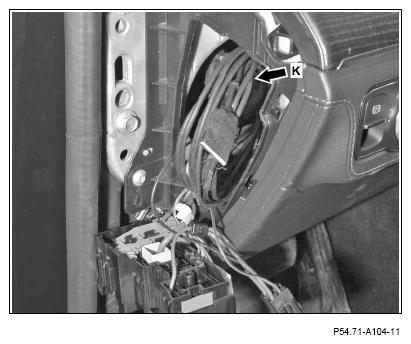

- Tie line branch-off for rear Dashcam (arrow K) and fix in place in installation space place behind the driver fuse and relay module.
- Strap down excess lengths of Dashcam wiring harness in area of A-pillar.
- Finally, secure Dashcam wiring harness on roof lining using felt adhesive tape.
