Remove/Install Parktronic System (PTS) Sensors In Front Bumper - AR54.65-P-0001ME
Model 167
With Code 235 (Active Parking Assist with PARKTRONIC)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||

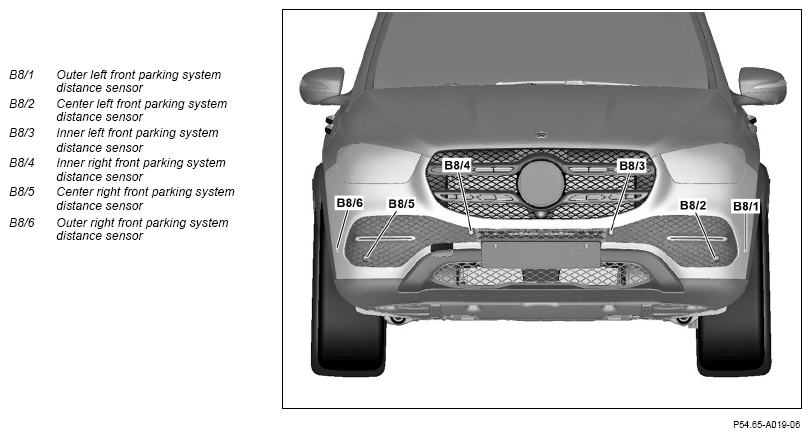

| 2.1 | Remove front section of fender liner in right or left front fender. | When removing the outer front parking system distance sensors (B8/1 or B8/6). | AR88.10-P-1301ME |
| 2.2 | Remove front bumper. | When removing the inner or center front parking system distance sensors (B8/2, B8/3, B8/4 or B8/5). |
|
| AR88.20-P-2000ME | |||
| 3 | Release and disconnect electrical connector from front parking system distance sensors (B8/1, B8/2, B8/3, B8/4, B8/5 or B8/6). | ||
| 4 | Unclip front parking system distance sensors (B8/1, B8/2, B8/3, B8/4, B8/5 or B8/6). | ||
| 5 | Install in the reverse order |
