Remove/Install PARKTRONIC Warning Buzzer - AR54.65-P-0023ME
Model 167
With Code 235 (Active Parking Assist with PARKTRONIC)
Shown on model 167.1
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||

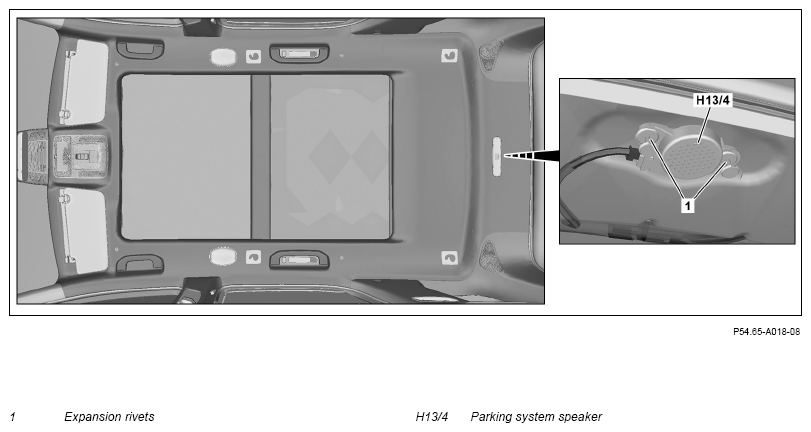

| 2.1 | Lower roof lining at rear until the parking system speaker (H13/4) is accessible. | Model 167.1/9 with code 235 (Active Parking Assist with PARKTRONIC) | |
| AR68.30-P-4300ME | |||
| 2.2 | Remove left load compartment trim. | Model 167.3 with code 235 (Active Parking Assist with PARKTRONIC) | |
| AR68.30-P-1185MEC | |||
| 3 | Remove upper left load compartment trim. | Model 167.3 with code 235 (Active Parking Assist with PARKTRONIC) |
|
| AR68.30-P-1186MEC | |||
| 4 | Unscrew bolts (2) and remove reinforcement (3). | Model 167.3 with code 235 (Active Parking Assist with PARKTRONIC) | |
| 5 | Disconnect electrical connector from parking system speaker (H13/4). | ||

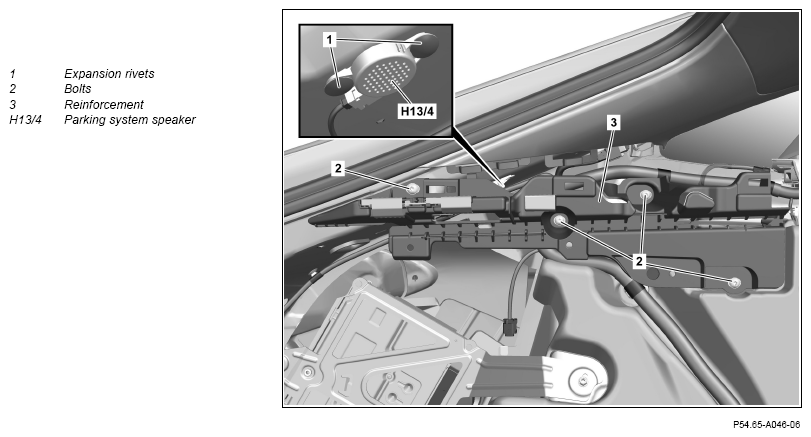

| 6 | Unclip expansion rivet (1) and remove parking system speaker (H13/4). | Fig 1 | |
| 7 | Install in the reverse order. |
