Remove/Install Intermediate Shaft - AR33.30-P-0625MNI

Model 290 with transmission 725

with code M005 (Vehicles with 4MATIC/all-wheel drive)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove
1	Remove left front axle shaft.		AR33.30-P-0620MNI

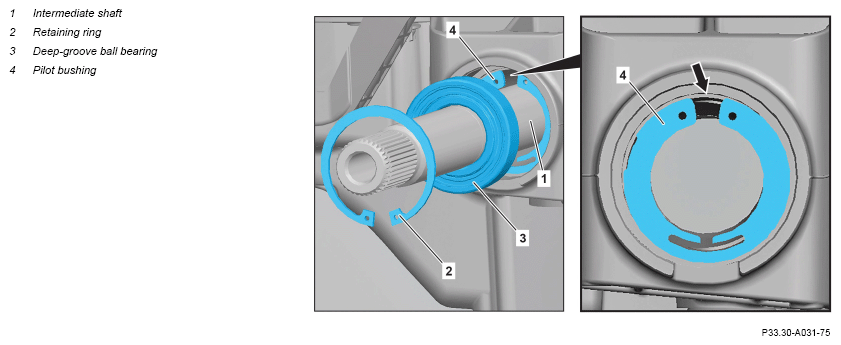

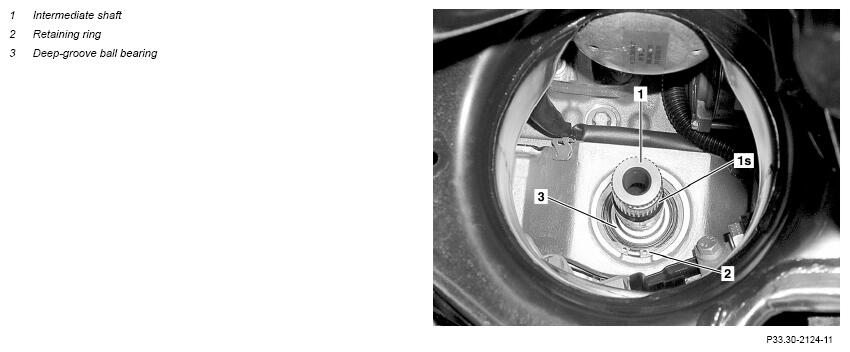

2	Detach retaining ring (2).
3	Remove intermediate shaft (1) with deep-groove ball bearing (3).
	Check
4	Check intermediate shaft (1) and deep-groove ball bearing (3) for damage.	If damage is found, ↓ Replace intermediate shaft (1) or deep-groove ball bearing (3).
		Replace intermediate shaft deep-groove ball bearing.	AR33.30-P-0625-02LWX
		Length "a" for grooved ball bearing wheel offset	*BE33.30-P-1001-04C
		Pulling arms	Fig 1
		Puller, two-arm	Fig 2
		Thrust piece set	Fig 3
		Drift	Fig 4
5	Check pilot bushing (4) for damage.	If pilot bushing (4) is damaged, ↓ Replace pilot bushing (4).
		Observe installation position (arrow).
6	Check pilot bushing (4) is correctly seated in oil pan.	The pilot bushing (4) must be installed in the oil pan. Otherwise, the radial shaft sealing ring on the front axle differential will be damaged
		If the pilot bushing (4) is not correctly seated in the oil pan ↓ Install pilot bushing (4) correctly in oil pan. Observe installation position (arrow).
	Install
7	Install intermediate shaft (1) with deep-groove ball bearing (3).
8	Attach retaining ring (2).
9	Install left front axle shaft.		AR33.30-P-0620MNI

INTERMEDIATE SHAFT

Number	Designation				Model 290
BE33.30-P-1001-04C	Length "a" for grooved ball bearing wheel offset	With an intermediate shaft length of	472.0 mm	mm	-
			478.5 mm	mm	334, 5...334, 7
			479.3 mm	mm	-
			504.3 mm	mm	-
			510.0 mm	mm	366, 0...366, 2

Fig 1: Identifying Pulling Arms (116 589 12 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Puller, Two-Arm (000 589 88 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Thrust Piece Set (711 589 00 34 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Drift (460 589 15 15 00)

Courtesy of MERCEDES-BENZ USA
