Remove/Install Steering Wheel - AR46.10-P-0100FR

Model 257, 290

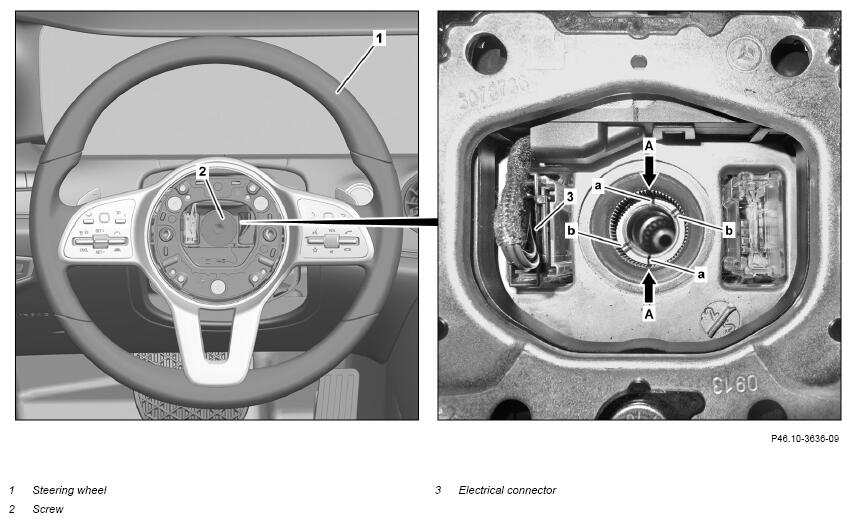

Shown on model 257.### 1# up to model year 2021

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Turn steering wheel (1) to center position.	The front wheels must be in the straight-ahead position.
2	Remove airbag unit from steering wheel (1).		AR91.60-P-0660FR
3	Counterhold steering wheel (1) and unscrew screw (2).	Replace bolt (2).
		Screw/bolt, steering wheel to steering shaft	*BA46.10-P-1001-02J
4	Release and disconnect electrical connection (3).
5	Remove steering wheel (1).	Model 257.### 1# Model 290.### 1#
		Installation  : Align recesses of the splines (arrows A) in steering wheel (1) with the markings
		(a) on the steering shaft.
		Model 257.### 2# Model 290.### 2#
		Installation  : Align recesses of the splines (arrows A) in steering wheel (1) with the markings (b) on the steering shaft.
6	Install in the reverse order.
