Unfasten/Fasten Rear Seat Cushion Cover - AR91.18-P-1851-01FRX

Model 206, 214, 254

Model 223

Model 236

Model 290

Model 294

Model 295

Model 296

Model 297

Model 463 as of model year 2019

Model 465

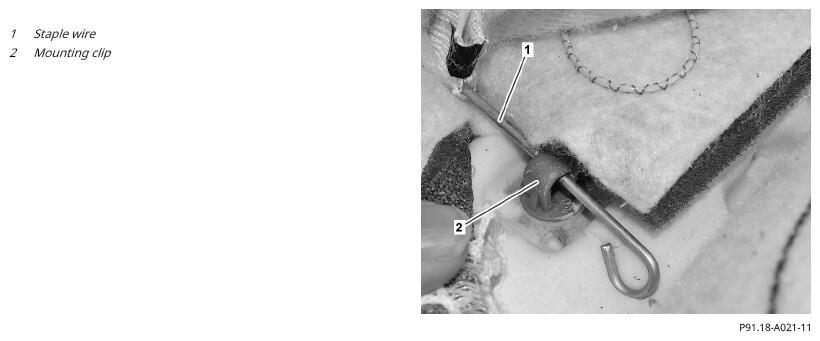

Method of installation A

Courtesy of MERCEDES-BENZ USA

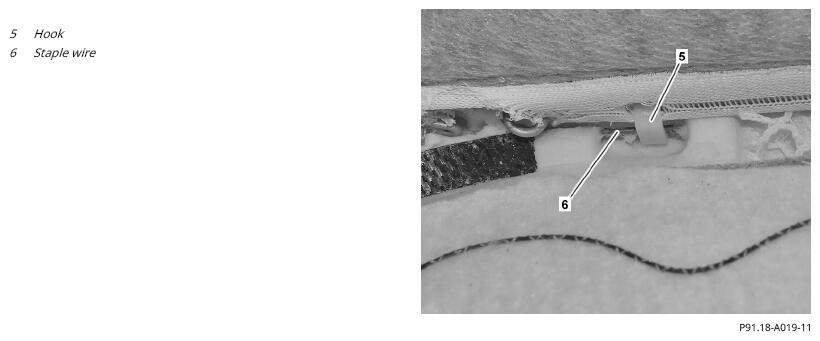

Method of installation B

Courtesy of MERCEDES-BENZ USA

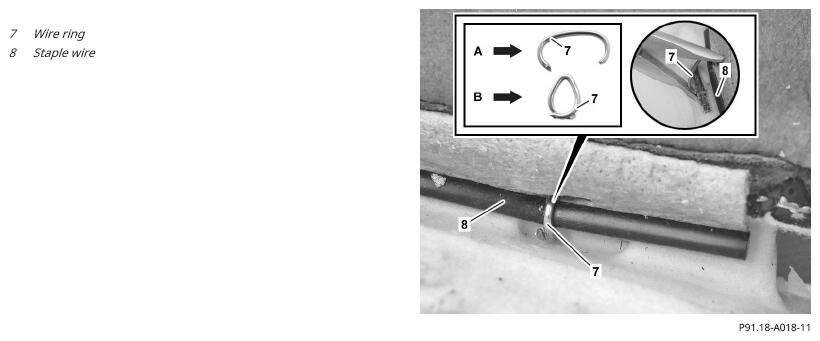

Method of installation C

Courtesy of MERCEDES-BENZ USA

Release

1. Unhook staple wire (1) from retaining clip (2) using dismantling tool.

   For covers with method of installation A

2. Unhook hook (5) from staple wire (6).

   For covers with method of installation B

3. Remove wire ring (7) from staple wire (8).

   For covers with method of installation C

   Carefully remove residue of wire rings (7).

   Otherwise damage may occur.

   Mount

4. Hook staple wire (1) at retaining clip (2) using dismantling tool.

   For covers with method of installation A

5. Hook hook (5) at staple wire (6).

   For covers with method of installation B

6. Secure staple wire (8) with wire ring (7) onto eyelet of seat cushion padding.

   For covers with method of installation C

   Insert open wire ring (7) (arrow A) into padding clip pliers as shown and close completely by pressing together (arrow B).
