Remove/Install Rear Backrest Cover - AR91.18-P-1871FRX

Model 290

except code 287 (Through-loading feature)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Remove

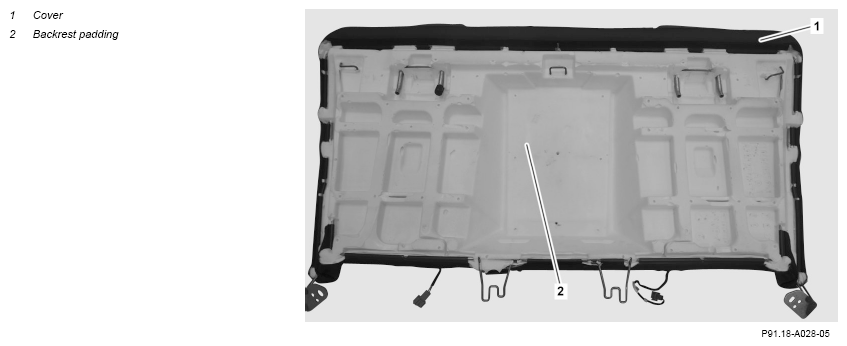

1	Remove seat backrest padding (2).		AR91.12-P-1713FR
2	Unhook terminal strips of cover (1) all-round from seat backrest padding (2).	Extraction hook	Fig 2
3	Pull cover (1) over seat backrest padding (2).

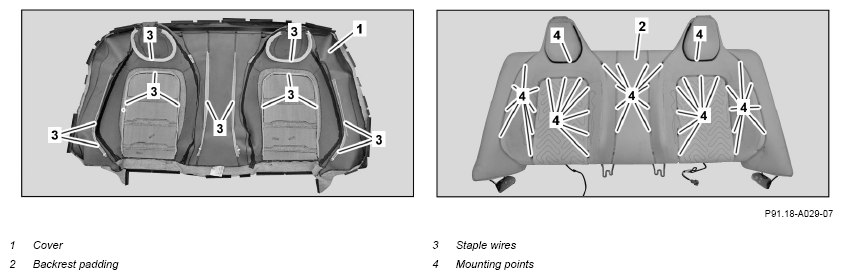

4	Release staple wires (3) at attachment points (4).		AR91.18-P-1871-01FRX
		Padding clip pliers	Fig 3
		Dismantling tool	Fig 1
5	Remove cover (1) from seat backrest padding (2).
	Install
6	Align cover (1) over seat cushion padding (2) so that the seams locate in the notches of the seat cushion padding (2).
7	Fasten staple wires (3) at attachment points (4).		AR91.18-P-1871-01FRX
		Padding clip pliers	Fig 3
		Dismantling tool	Fig 1
8	Pull cover (1) over seat backrest padding (2).
9	Hook-in terminal strips of cover (1) all-round on seat backrest padding (2).	Extraction hook	Fig 2
10	Install seat backrest padding (2).		AR91.12-P-1713FR

Fig 1: Identifying Dismantling Tool (205 589 03 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Padding Clip Pliers (454 589 03 37 00)
