Remove/Install Inner Trim On Seat Frame - AR91.10-P-1202FR
Model 257, 290

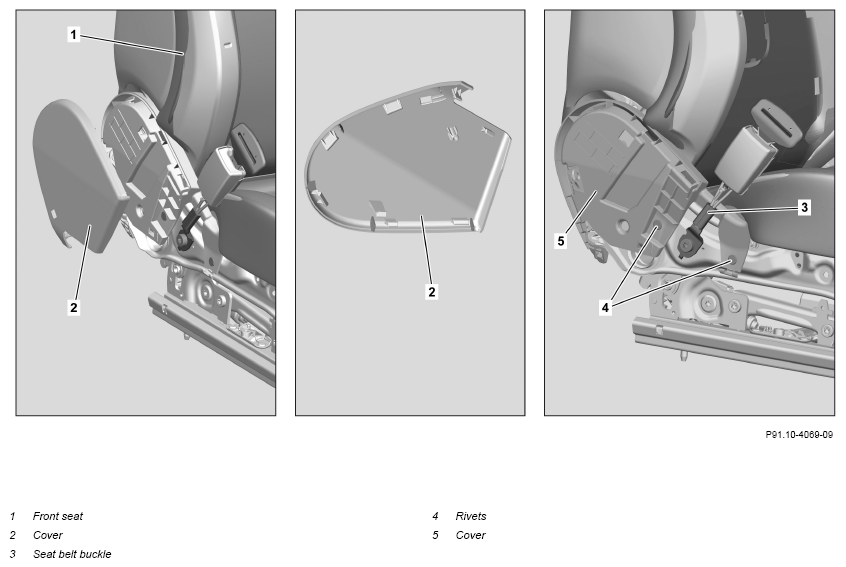

Shown on model 257
| Remove/install | |||
| 1 | Remove front seat (1). | AR91.10-P-1000FR | |
| 2 | Unclip and remove trim (2). | Fig 1 | |
| 3 | Detach seat belt buckle (3) from seat frame and place to one side with electrical line connected. | AR91.40-P-1515FR | |
| 4 | Unhook electrical wiring harness of seat belt buckle (3) from trim (5). | ||
| 5 | Drill out rivets (4). | ||
| 6 | Release locks and remove trim (5). | ||
| 7 | Install in the reverse order |
