Remove/Install Cover On Driver Seat Cushion - AR91.18-P-1803FRX
Model 213, 290
with code 555 (AMG-Performance Seat)
Shown on model 213 with code 873 (Seat heating of driver's seat on left and right)
| Remove | |||
| 1 | Remove seat cushion padding (2). | Clip: Remove seat cushion padding | multimedia:A supplement to the article is available.
|
| AR91.10-P-5040FRX | |||
| 2 | Unhook cover (11) at side (arrows C). | Clip: Remove seat cushion cover on driver's seat Operation steps 2 to 8 are shown here. | multimedia:A supplement to the article is available.
|

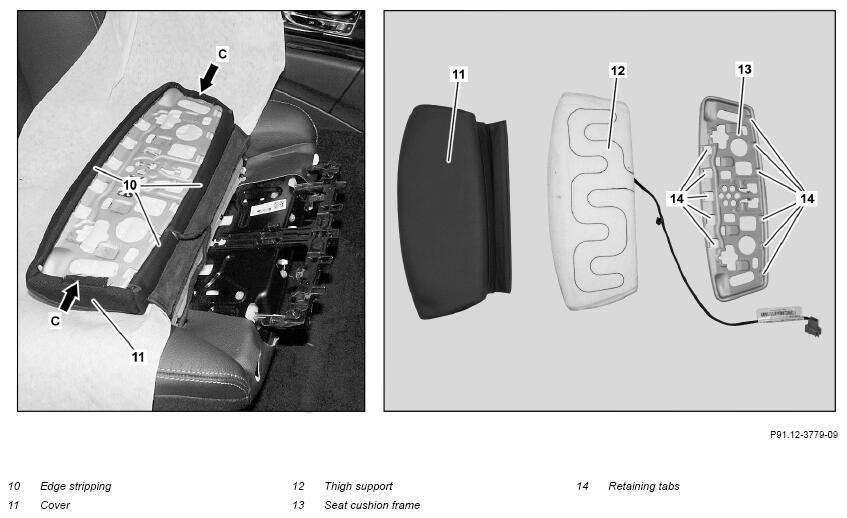

| 3 | Push retaining tabs (14) to one side and unhook the piping (10). | Fig 1 | |
| 4 | Remove seat cushion frame (13) from thigh rest (12) and cover (11). | ||
| 5 | Remove thigh rest (12) from outer cover (11). | ||
| 6 | Pull cover (1) over seat cushion padding (2). | ||

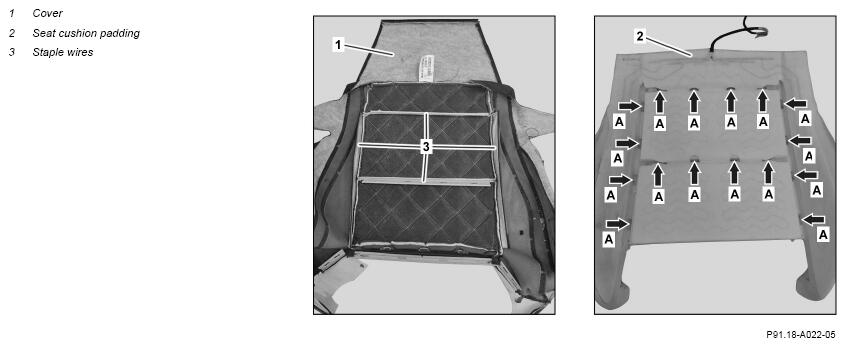

| 7 | Detach staple wires (3) from attachment points (arrows A) of seat cushion padding (2). | AR91.18-P-1802-01LW | |
| Fig 3 | |||
| Fig 2 | |||
| 8 | Remove cover (1) from seat cushion padding (2). | ||
| Install | |||
| 9 | Align cover (1) over seat cushion padding (2) so that the seams locate in the notches of the seat cushion padding (2). | ||
| 10 | Attach staple wires (3) at attachment points (arrows A) of seat cushion padding (2). | AR91.18-P-1802-01LW | |
| Fig 3 | |||
| Fig 2 | |||
| 11 | Pull cover (1) over seat cushion padding (2). | ||
| 12 | Insert thigh rest (12) into outer cover (11) and smooth out creases in outer cover (11). | ||
| 13 | Insert the seat cushion frame (13) into the cover (11) and align centrally on cover (11), as well as the contour of the thigh rest (12) using marking. | ||
| 14 | Hook in piping (10) and attach with retaining tabs (14). | Fig 1 | |
| 15 | Hook in cover (11) at side (arrows C). | ||
| 16 | Install seat cushion padding (2). | AR91.10-P-5040FRX |
