Remove/Install Cover On Driver Seat Cushion - AR91.18-P-1803FRA

Model 257

with code 275 (Memory Package (driver's seat, steering column and mirror))

Model 290

with code 275 (Memory Package (driver's seat, steering column and mirror))

except code 555 (AMG-Performance Seat)

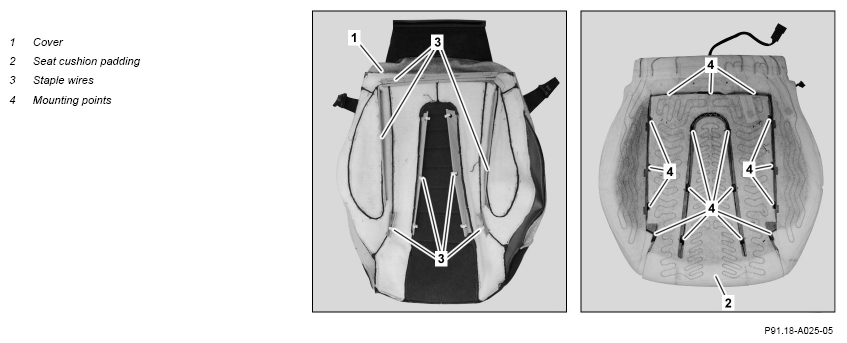

Shown on model 257 with code 873 (Seat heating for driver and front passenger)

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove seat cushion padding (2).		AR91.10-P-5040FRA
2	Pull cover (1) over seat cushion padding (2).
3	Detach staple wires (3) from attachment points (4) of seat cushion padding (2).		AR91.18-P-1802-01LW
		Padding clip pliers	Fig 2
		Dismantling tool	Fig 1
4	Remove cover (1) from seat cushion padding (2).
	Install
5	Align cover (1) over seat cushion padding (2) so that the seams locate in the notches of the seat cushion padding (2).
6	Secure staple wires (3) to attachment points (4) of seat cushion padding (2).		AR91.18-P-1802-01LW
		Padding clip pliers	Fig 2
		Dismantling tool	Fig 1
7	Pull cover (1) over seat cushion padding (2).
8	Install seat cushion padding (2).		AR91.10-P-5040FRA

Fig 1: Identifying Dismantling Tool (205 589 03 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Padding Clip Pliers (454 589 03 37 00)

Courtesy of MERCEDES-BENZ USA
