Remove/Install Desiccant Cartridge - AR83.30-P-6521FRX
Model 290 with engine 177
| Risk of fire due to ignition of R1234yf refrigerant on hot components. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion due to formation of ignitable refrigerant/air mixtures | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. | AS83.00-Z-0007-01A | |
| Notice | Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-P-0005-01KOA | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notes on handling refrigerant R1234yf | AH83.30-P-0003-02A | ||
| Remove/install | |||
| 1 | Remove the condenser. | AR83.30-P-6540FRX | |

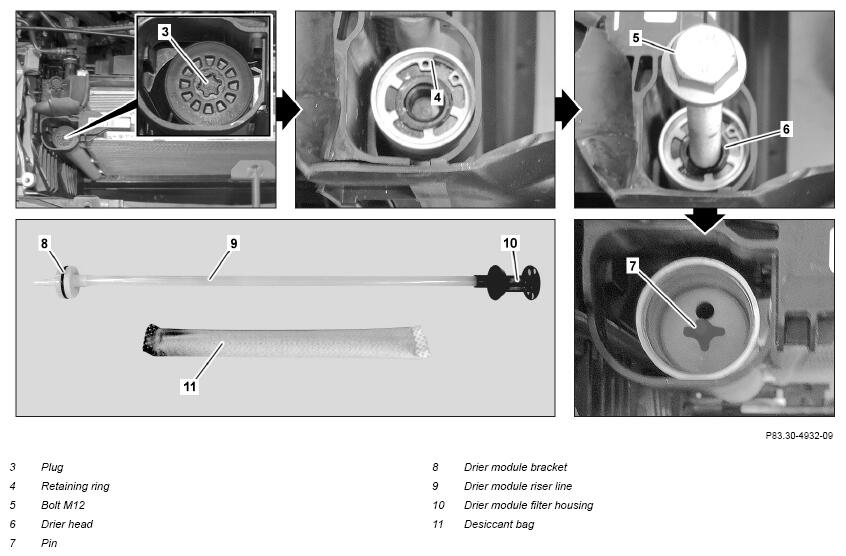

| 2 | Remove plugs (3). | *BA83.30-P-1007-01S | |
| 3 | Remove circlip (4). | ||
| 4 | Screw M12 screw (5) into drier head (6) and remove drier head (6). | ||
| 5 | Remove drier module holder (8) at pin (7) using suitable pliers. | ||
| 6 | Remove drier module riser line (9) together with drier module filter housing (10). | ||
| 7 | Check packaging of new desiccant bag (11) for damage. | If damage is present, ↓ Use new desiccant bag (11) with undamaged packaging. |
|
| 8 | Install in the reverse order. |
AIR CONDITIONING
| Number | Designation | Model 290 | |
|---|---|---|---|
| BA83.30-P-1007-01S | Plug to condenser | Nm | 4 |
