Remove/Install Exhaust System - AR49.10-P-7142MNI

Engine 177 in model 290

Courtesy of MERCEDES-BENZ USA

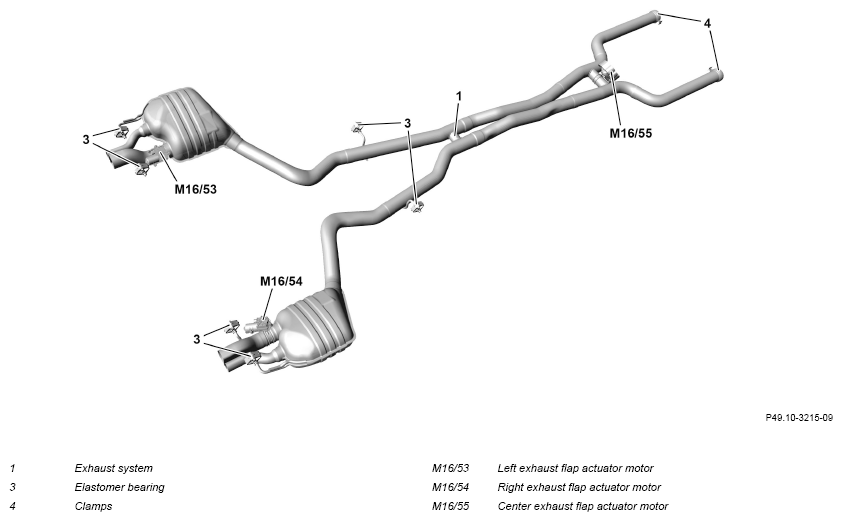

Shown on model 290 without code ME10 (Hybrid vehicle)

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone.	AS49.00-Z-0001-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove rear underfloor paneling.	: Only install rear underfloor paneling after leak test.	AR61.30-P-1001FR
2	Remove side underfloor paneling.		AR61.30-P-1001FR
3	Release longitudinal member panels in area of rear diagonal struts.		AR61.30-P-1001FR
4	Remove rear diagonal struts.	Bolt, rear diagonal strut to spare wheel well/body	*BA61.10-P-1008-01L
5	Remove center reinforcement under exhaust system.	Bolt, rear reinforcement to frame floor assembly	*BA61.10-P-1004-01L
6	Release and disconnect electrical connector of left exhaust gas flap actuator motor (M16/53).
7	Release and disconnect electrical connector of right exhaust gas flap actuator motor (M16/54).
8	Release and disconnect electrical connector of center exhaust gas flap actuator motor (M16/55)	Engine 177 in model 290 with code U78 (AMG sports exhaust system)
9	Support exhaust system (1).
	000 588 23 62 00 Mounting plate		WS26.00-P-0415B
	000 588 24 62 00 Major assembly mount		WS01.00-P-0253B
10	Remove clamps (4).	: Replace clamps (4). Clamp, front exhaust system to center exhaust system	*BA49.10-P-1005-02E
11	Remove elastomer bearings (3) from exhaust system (1).	: Wet elastomer bearings (3) with lubricant. Antifriction paste, rubber parts 2.5 kg, DBL 6867.00	*BR00.45-Z-1002-06A
12	Check elastomer bearings (3) for damage.	If there are problems: ↓ Replace affected elastomer bearing (3).
13	Remove exhaust system (1) from major assembly mount.
	000 588 23 62 00 Mounting plate		WS26.00-P-0415B
	000 588 24 62 00 Major assembly mount	Aid of helper required.	WS01.00-P-0253B
14	Remove combustion and corrosion residues from connecting points and flange connections.
15	Install in the reverse order.
16	Check installation position and clearance of the exhaust system (1).	If there are problems: ↓ Re-align exhaust system (1).
	Risk of accident  from vehicle starting off by itself when Engine running. Risk of injury  (bruises and burns) resulting from working on the Engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
17	Perform Engine test run and check exhaust system (1) for leaks.
18	Install rear underfloor paneling.		AR61.30-P-1001FR
