Tightening Procedure For Charge Air Distributor - AR09.41-P-8683-01MNI
Engine 177 in model 290
MODIFICATION NOTES
| 06.02.2023 | Screw/bolt, charge air distributor to cylinder head | Engine 177.8 in model 290, engine 177.9 in models 167, 205, 213, 217, 222, 253, 290, engine 177.9 in model 463 | BA09.41-P-1004-01X |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 177.8 in model 290 Engine 177.9 in model 167, 205, 213, 217, 222, 253, 290 Engine 177.9 in model 463 | |
|---|---|---|---|
| BA09.41-P-1004-01X | Screw/bolt, charge air distributor to cylinder head | Nm | 13 |

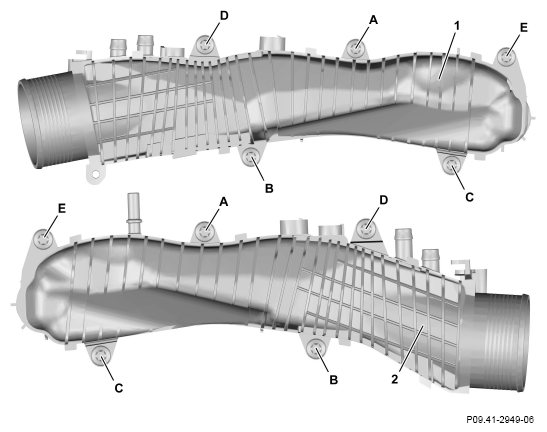

- Lightly tighten screws (A to E) of the left and right charge air distributor
(1, 2) by hand in the alphabetic sequence.
- Tighten screw/bolts (A to E) of the left and right charge air distributor (1, 2) in the alphabetic sequence
