Remove/Install Low-Temperature Circuit Cooler - AR09.41-P-6936MNI

Engine 177 in model 290

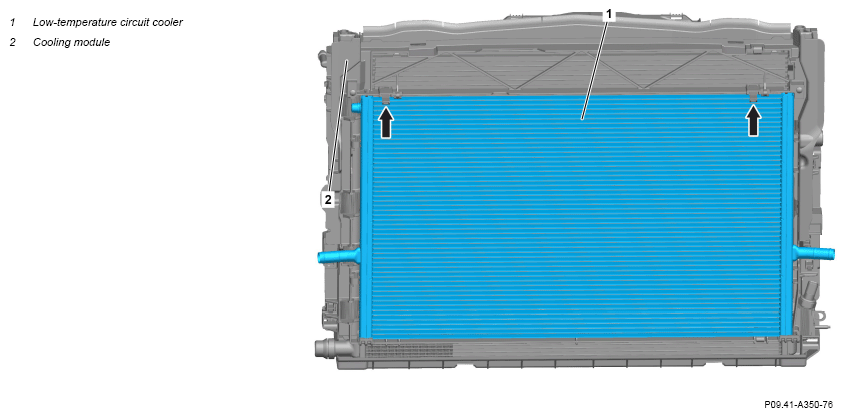

Shown without code ME10 (Hybrid vehicle (plug-in, PHEV))

Courtesy of MERCEDES-BENZ USA

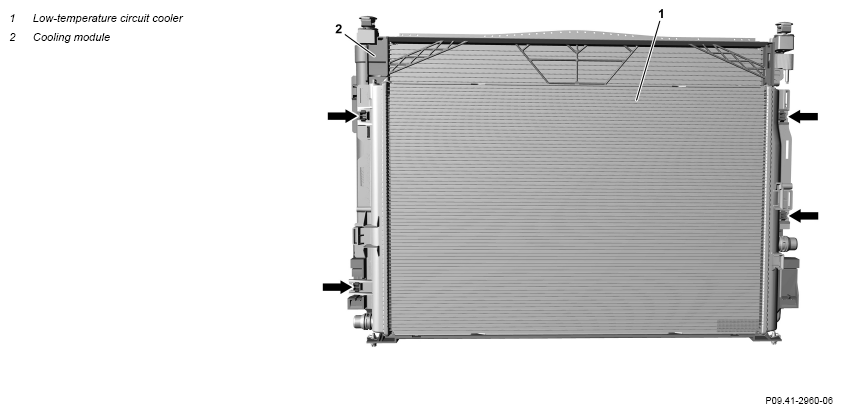

Shown with code ME10 (Hybrid vehicle (plug-in, PHEV))

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Notes on coolant		AH20.00-P-2080-01KOA
	Remove/install
1	Remove cooling module (2).		AR20.20-P-3865MNI
2	Unclip low-temperature circuit cooler (1) from cooling module (2) (arrows) and remove low-temperature circuit cooler (1).
3	Check low-temperature circuit cooler (1) for damage.	If damage is present, ↓ replace low-temperature circuit cooler (1).
4	Install in the reverse order.
