Remove/Install Left Charge Air Temperature Sensor Downstream Of Throttle Valve - AR09.41-P-0041MNI
Engine 177 in model 290

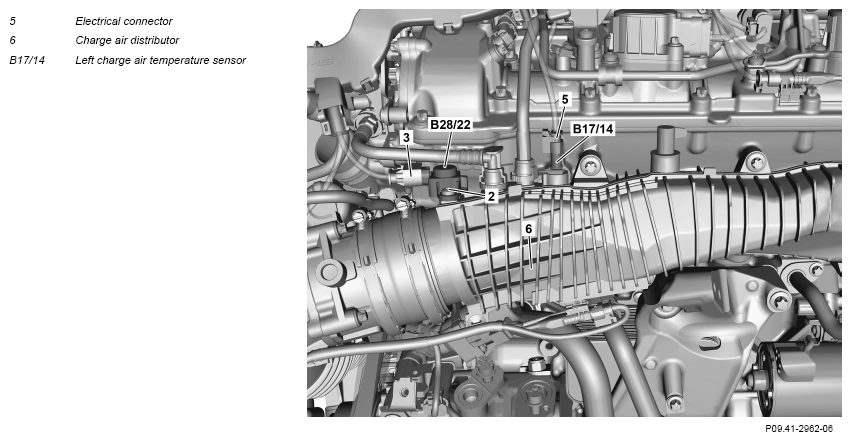

Fig 1: Left Charge Air Temperature Sensor Downstream Of Throttle Valve Components Location - Engine 177 In Model 290
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove upper engine cover. | ||
| 2 | Remove left charge air temperature sensor (B17/14) from the charge-air distributor (6). | ||
| 3 | Release and disconnect electrical connector (5). | ||
| 4 | Seal opening on the charge-air distributor (6) with suitable stop plug. | Fig 2 | |
| 5 | Check the sealing ring of the charge-air temperature sensor on the left (B17/14) for damage. | If complaints are present, ↓ replace the charge-air temperature sensor on the left (B17/14). |
|
| 6 | Install in the reverse order. | ||
| 7 | Read out and delete fault memory. | ||
| AD00.00-P-2000-06FR | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 8 | Perform an engine test run and check the engine for proper function. |
