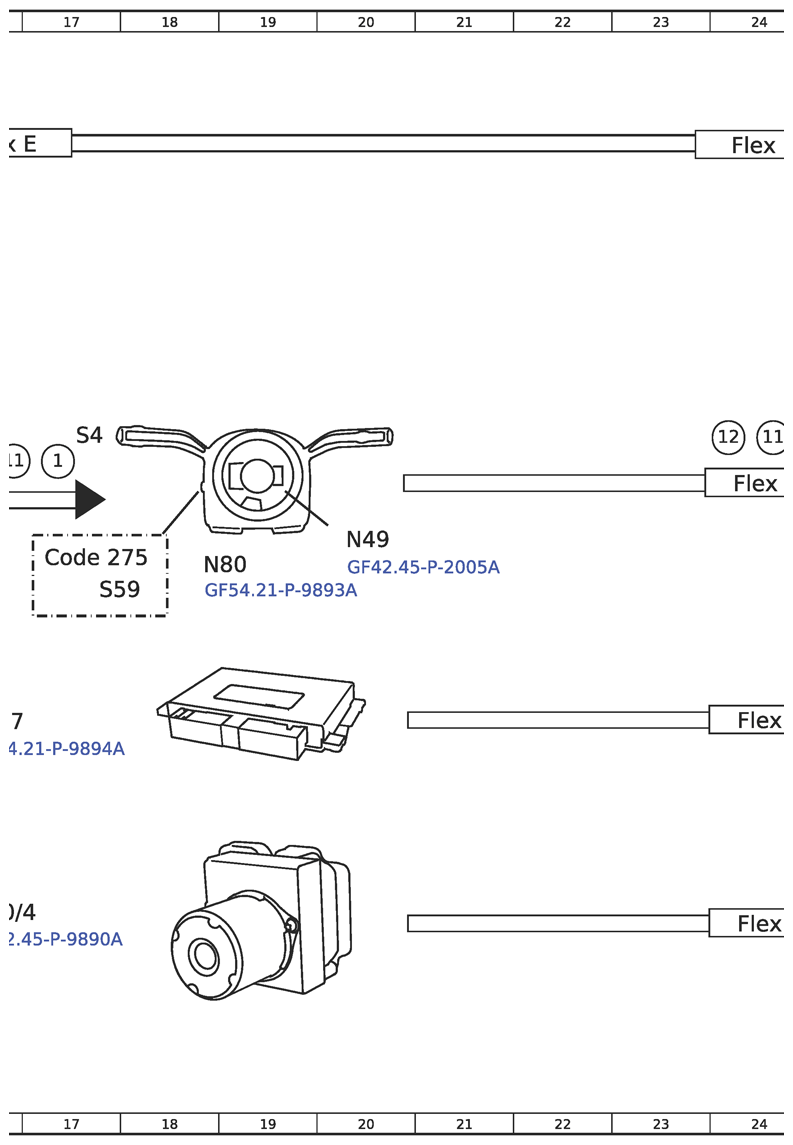

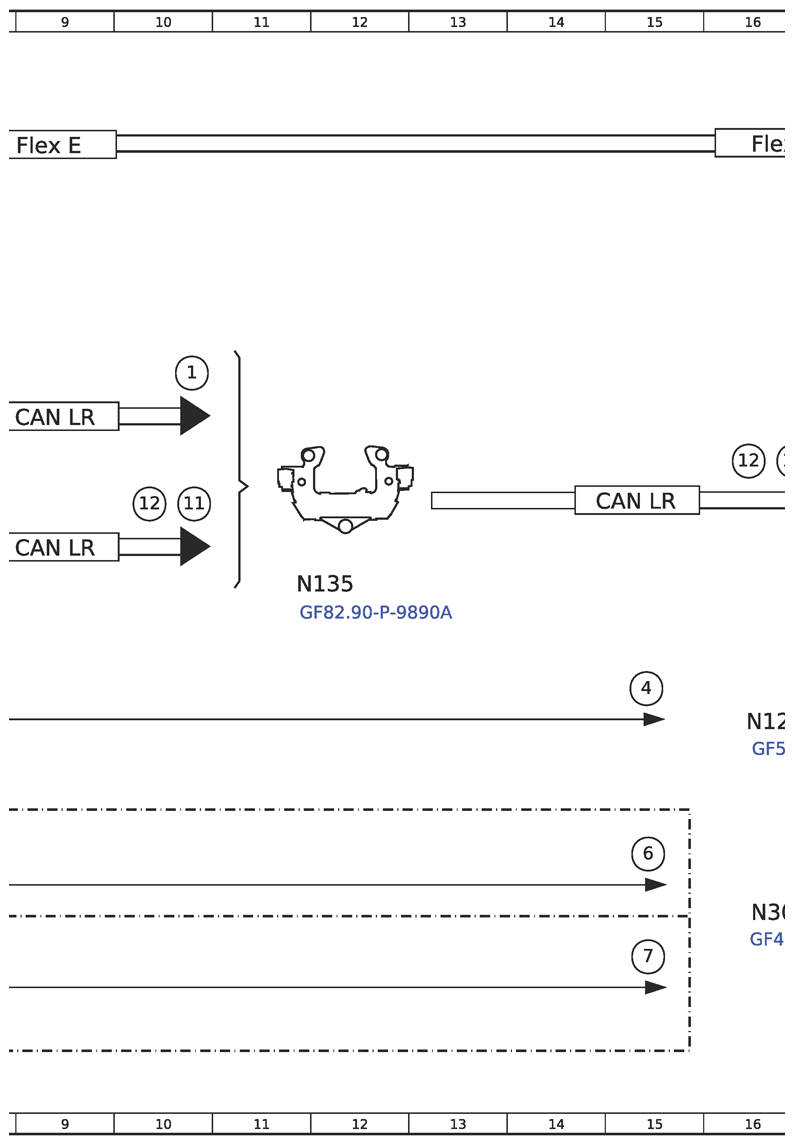

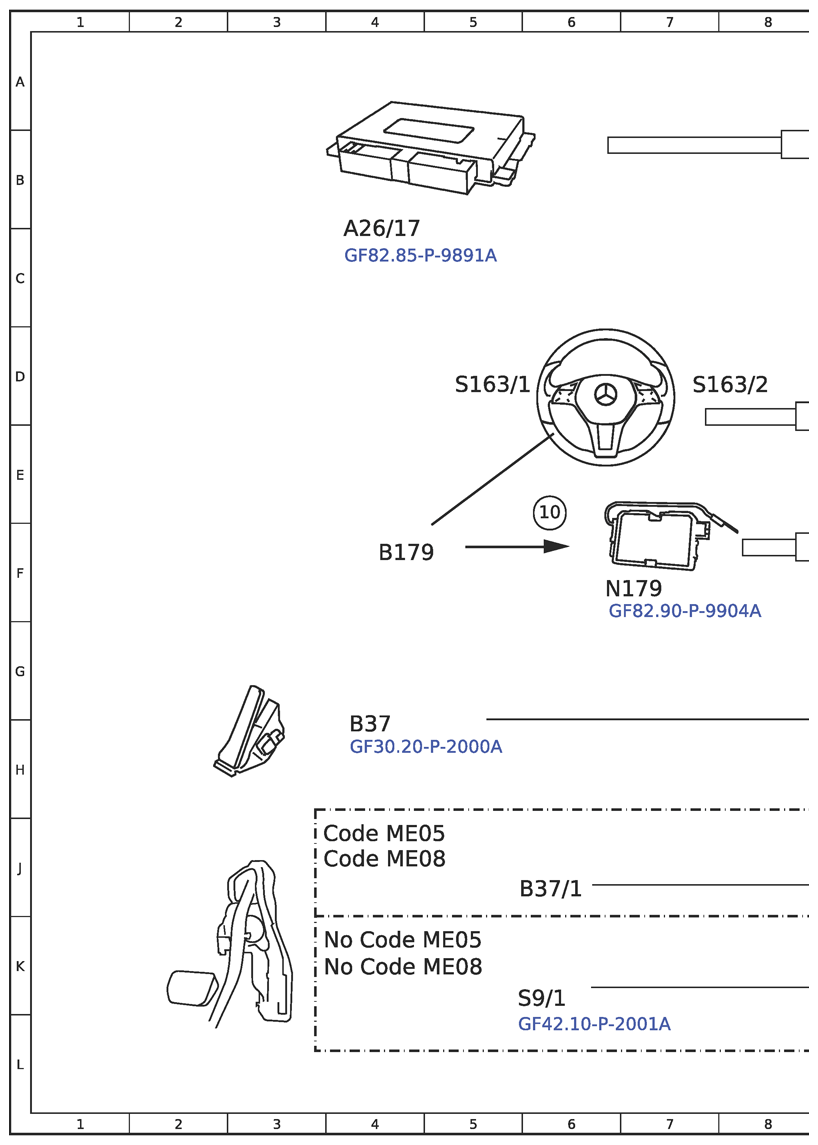

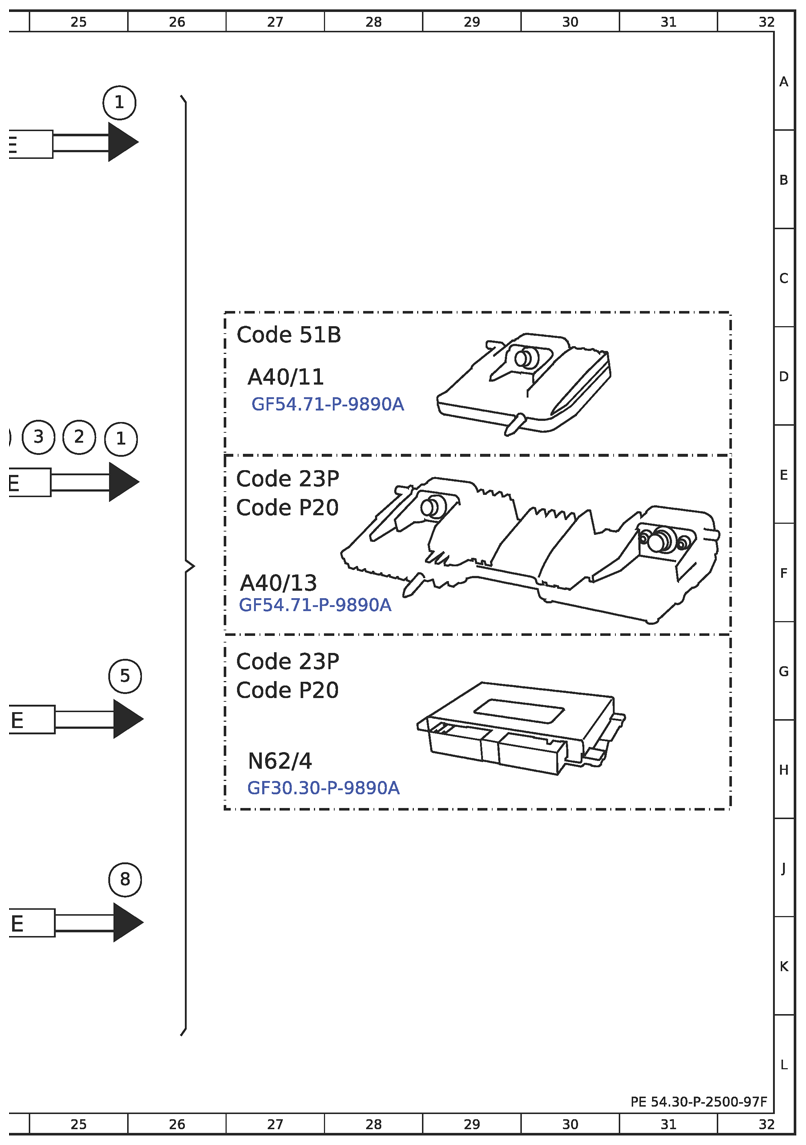

Recognize Driver Activity, Function Schematic - PE54.30-P-2500-97F
Model 213, 238, 257, 290 as of model year 2021 with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS)) except code 234 (Blind Spot Assist) except code 243 (Active Lane Keeping Assist (camera))
Model 213, 238, 257, 290 as of model year 2021 with code 234 (Blind Spot Assist) with code 51B (Rating, country group EURO-NCAP)
Model 213, 238, 257, 290 as of model year 2021 with code 243 (Active Lane Keeping Assist (camera)) with code 51B (Rating, country group EURO-NCAP)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 25A |
| 1 | Operation, signal | 25E |
| 1 | Operation, signal | 17E |
| 1 | Operation, signal | 10D |
| 10 | Hand-detection sensor, signal | 6E |
| 11 | Hands-on detection, status | 16E |
| 11 | Hands-on detection, status | 24E |
| 11 | Hands-on detection, status | 10E |
| 12 | Hands-Off-Detection, status | 16E |
| 12 | Hands-Off-Detection, status | 24E |
| 12 | Hands-Off-Detection, status | 10E |
| 2 | Steering angle, signal | 25E |
| 3 | Steering wheel velocity, signal | 25E |
| 4 | Accelerator pedal sensor, signal | 15G |
| 5 | Accelerator pedal position, signal | 25G |
| 6 | Pedal angle sensor, signal | 15J |
| 7 | Brake light switch, status | 15K |
| 8 | Service brake, status | 25J |
| A26/17 | Head unit | 4C |
| A40/11 | Mono multifunction camera | 27D |
| A40/13 | Multifunction camera | 27F |
| B179 | Hand-detection sensor | 4F |
| B37 | Accelerator pedal sensor | 4H |
| B37/1 | Pedal angle sensor | 5J |
| CAN LR | CAN for steering wheel | 15E |
| CAN LR | CAN for steering wheel | 9D |
| CAN LR | CAN for steering wheel | 9F |
| Code 23P | Driver assistance package | 27E |
| Code 23P | Driver assistance package | 27G |
| Code 275 | Electrically adjustable driver seat with memory function | 17F |
| Code 51B | EURO-NCAP | 27D |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUG-IN) | 4K |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUG-IN) | 3J |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUG-IN) | 4K |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUG-IN) | 3J |
| Code P20 | Driver assistance package PLUS | 27G |
| Code P20 | Driver assistance package PLUS | 27E |
| Flex E | Chassis FlexRay | 9B |
| Flex E | Chassis FlexRay | 24E |
| Flex E | Chassis FlexRay | 24B |
| Flex E | Chassis FlexRay | 24H |
| Flex E | Chassis FlexRay | 24K |
| Flex E | Chassis FlexRay | 16B |
| N127 | Drivetrain control unit | 16H |
| N135 | Steering wheel electronics | 12F |
| N179 | Hand detection system control unit | 7F |
| N30/4 | Electronic Stability Program (ESP®) control unit | 16K |
| N49 | Steering angle sensor | 20F |
| N62/4 | Driver assistance systems control unit | 27H |
| N80 | Steering column module | 18F |
| S163/1 | Instrument cluster multifunction steering wheel button group | 5D |
| S163/2 | Head unit multifunction steering wheel button group | 7D |
| S4 | Combination switch | 17E |
| S59 | Steering column adjustment switch | 17F |
| S9/1 | Stop lamp switch | 5K |
