Electrical Function Schematic For Head-Up Display - PE54.30-P-2065-97XBA
Model 257, 290 up to model year 2021 with code 463 (Head-up display)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 13J |
| 10 | Adopt memory position, request | 8G |
| 10 | Adopt memory position, request | 12J |
| 2 | Head-up display button, status | 6K |
| 2 | Head-up display button, status | 5D |
| 2 | Head-up display button, status | 9E |
| 3 | Head-up display ON/OFF, request | 13L |
| 4 | High-speed video link video signal data transfer, signal | 13K |
| 5 | Map data, signal | 15J |
| 6 | Multifunction steering wheel button group, signal | 7K |
| 6 | Multifunction steering wheel button group, signal | 11F |
| 6 | Multifunction steering wheel button group, signal | 16C |
| 6 | Multifunction steering wheel button group, signal | 20C |
| 7 | Head-up display settings, request | 12L |
| 8 | Head-up display light sensor, signal | 8E |
| 8 | Head-up display light sensor, signal | 5B |
| 8 | Head-up display light sensor, signal | 12J |
| 9 | Store memory position, request | 8G |
| 9 | Store memory position, request | 12J |
| A1 | Instrument cluster | 3J |
| A26/17 | Head unit | 19J |
| A40/12 | Head-up display | 14J |

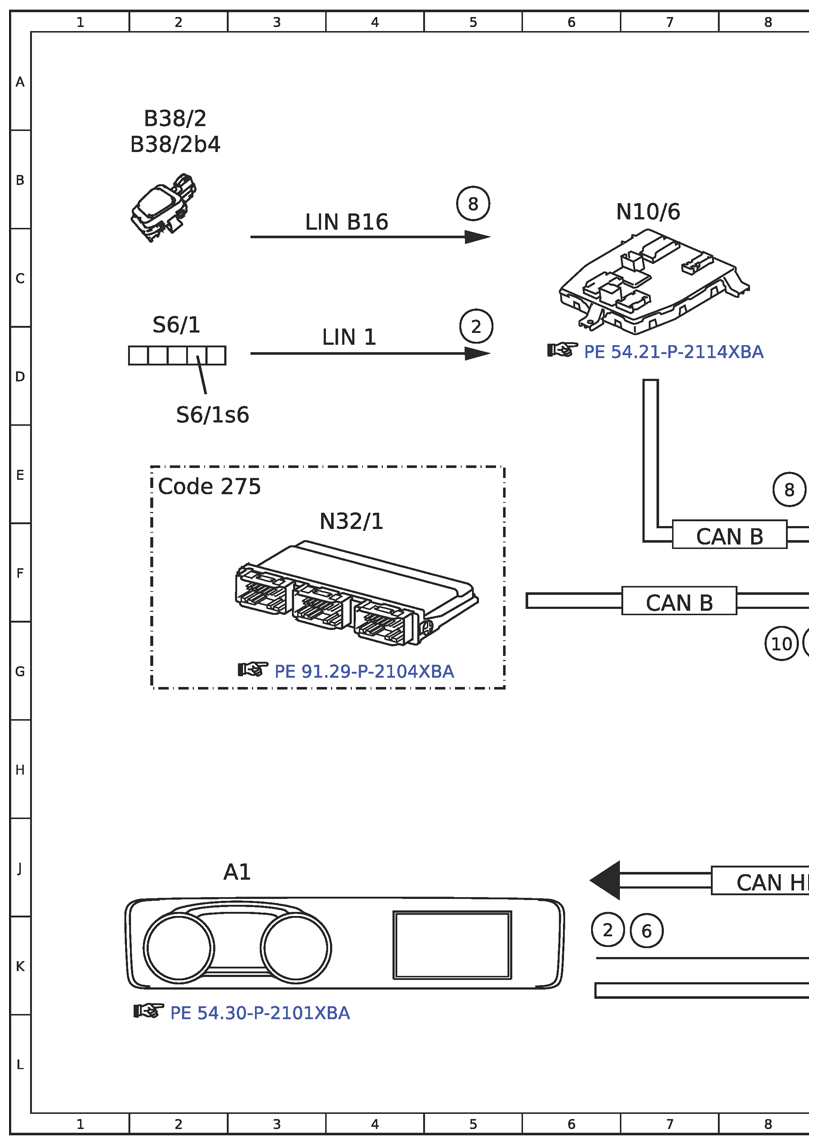

| B38/2 | Rain/light sensor with additional functions | 2A |
| B38/2b4 | Head-up display light sensor | 2B |
| CAN B | Interior CAN | 7F |
| CAN B | Interior CAN | 7F |
| CAN HMI | User interface CAN | 8J |
| CAN HMI | User interface CAN | 10K |
| CAN HMI | User interface CAN | 11J |
| CAN HMI | User interface CAN | 16J |
| CAN LR | Steering wheel CAN | 17D |
| Code 275 | Memory package | 2E |
| Flex E | Chassis FlexRay | 13F |
| HSVL | High-speed video link | 10K |
| LIN 1 | Instrument panel LIN | 4D |
| LIN B16 | Rain and light sensor LIN | 4C |
| N10/6 | Front SAM control unit | 7B |

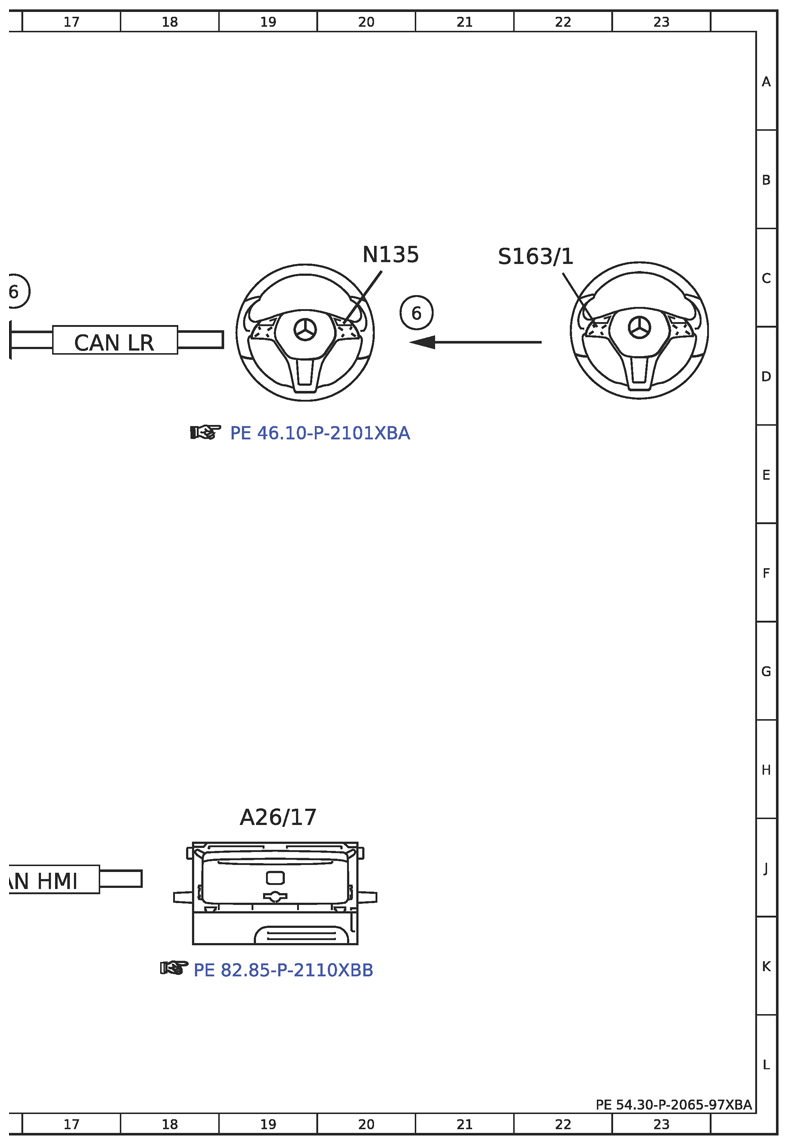

| N135 | Steering wheel electronics | 20C |
| N32/1 | Driver seat control unit | 4F |
| N73 | Electronic ignition switch control unit | 10E |
| N80 | Steering column module control unit | 15C |
| S163/1 | Instrument cluster multifunction steering wheel button group | 22C |
| S6/1 | Driver-side instrument panel button group | 2D |
| S6/1s6 | Head-up display button | 2D |
