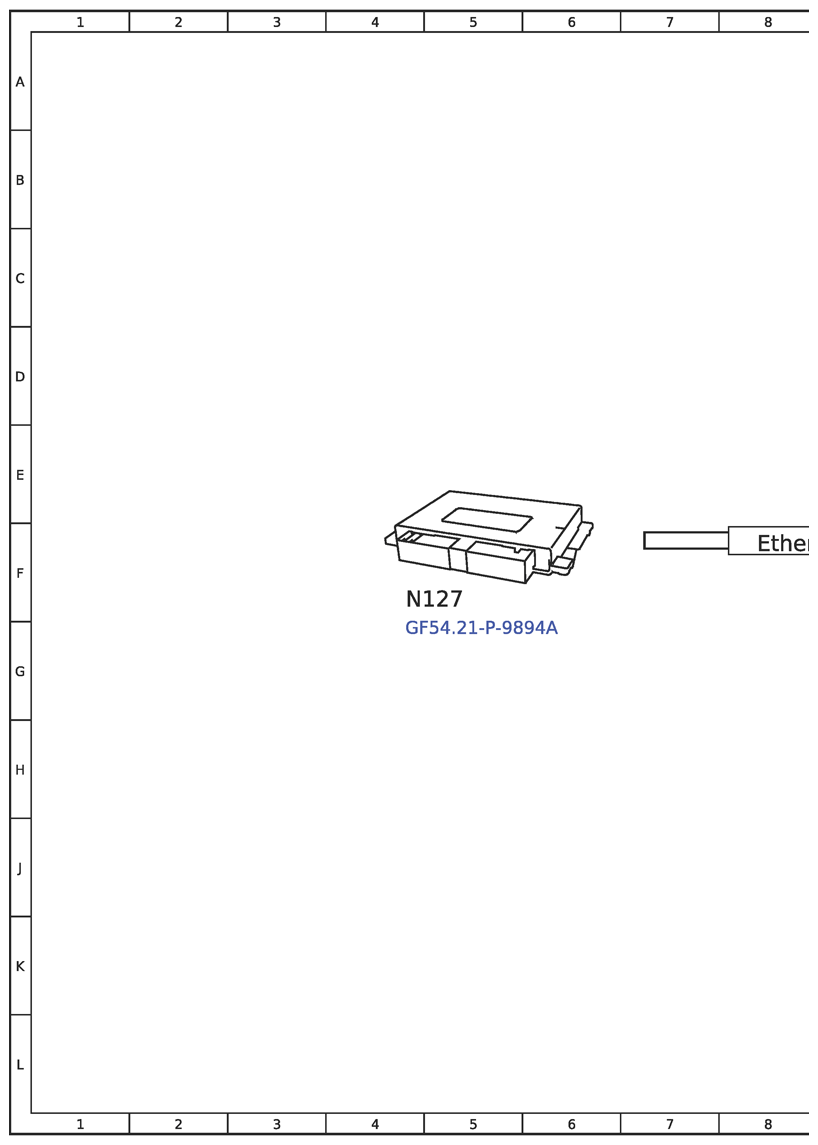

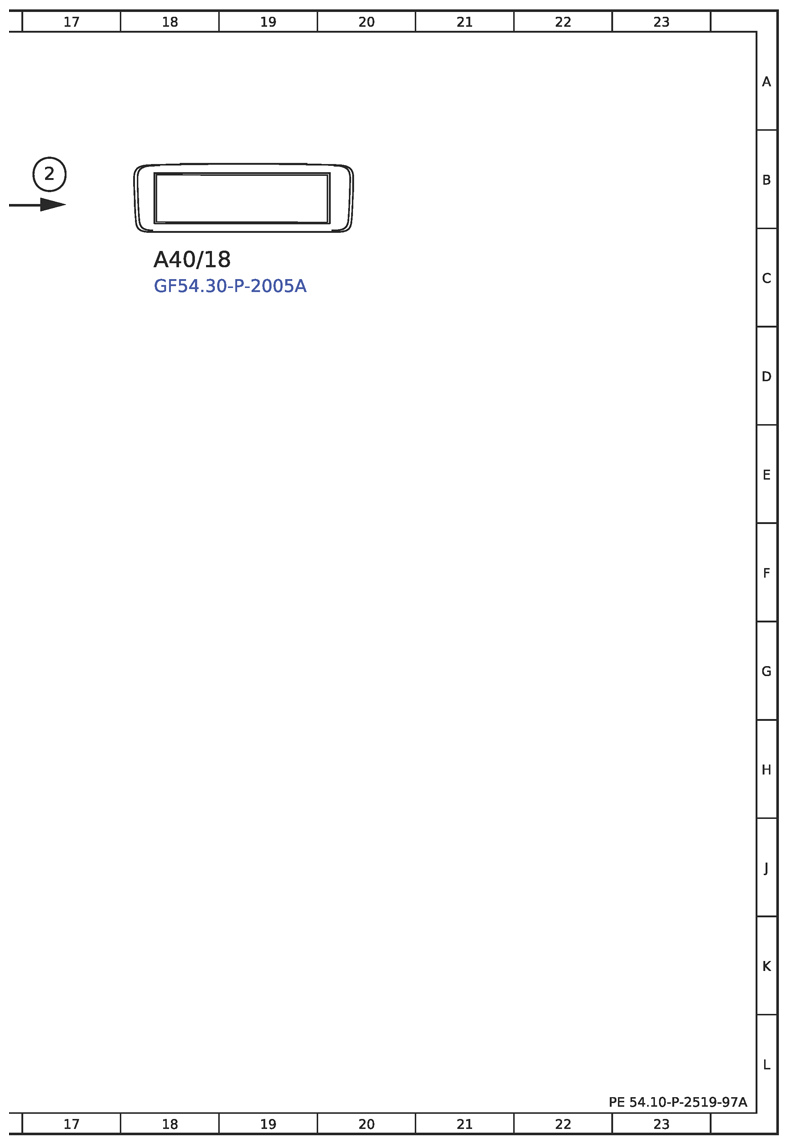

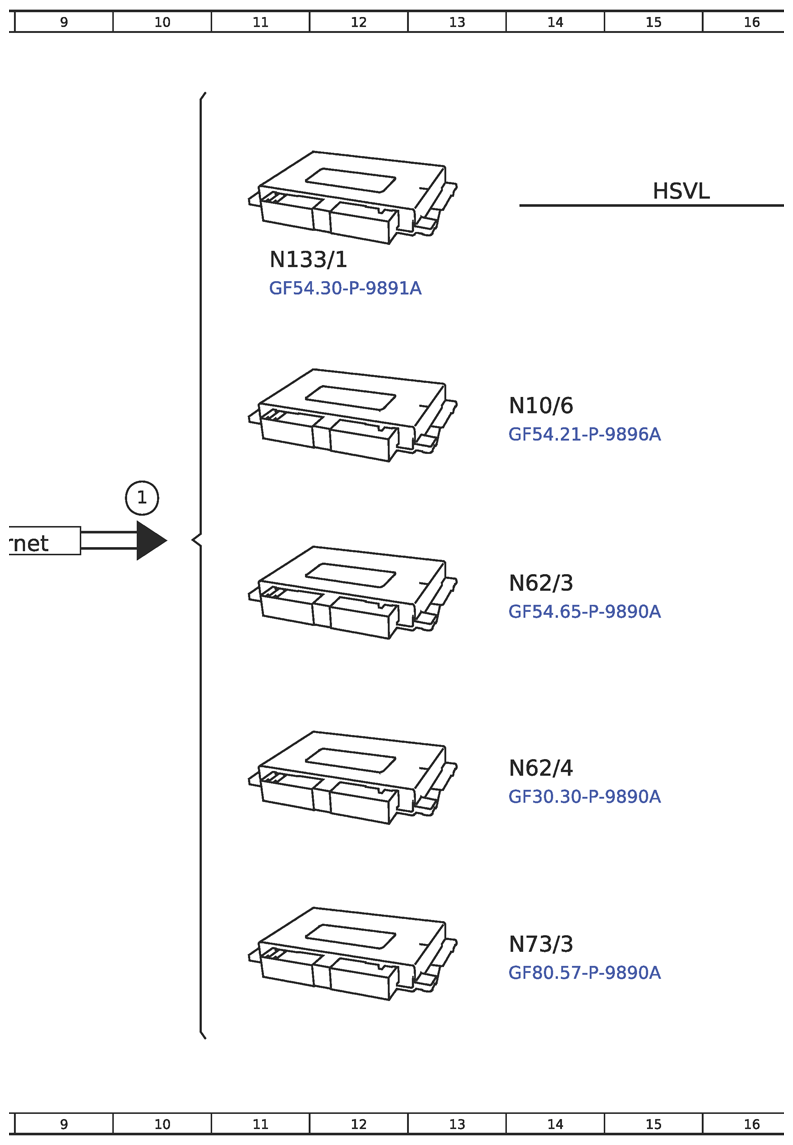

Function Schematic Of Battery Cell Monitoring - PE54.10-P-2519-97A
Model All (CAR)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Battery thermal runaway, signal | 10E |
| 2 | Image data, signal | 17B |
| A40/18 | Instrument cluster display | 18C |
| Ethernet | Ethernet | 8F |
| HSVL | High-speed video link | 15B |
| N10/6 | Front signal acquisition and actuation module control unit | 14D |
| N127 | Drivetrain control unit | 4F |
| N133/1 | Instrument cluster control unit | 11C |
| N62/3 | Parking system control unit | 14F |
| N62/4 | Driver assistance systems control unit | 14H |
| N73/3 | Electronic ignition switch control unit | 14K |
