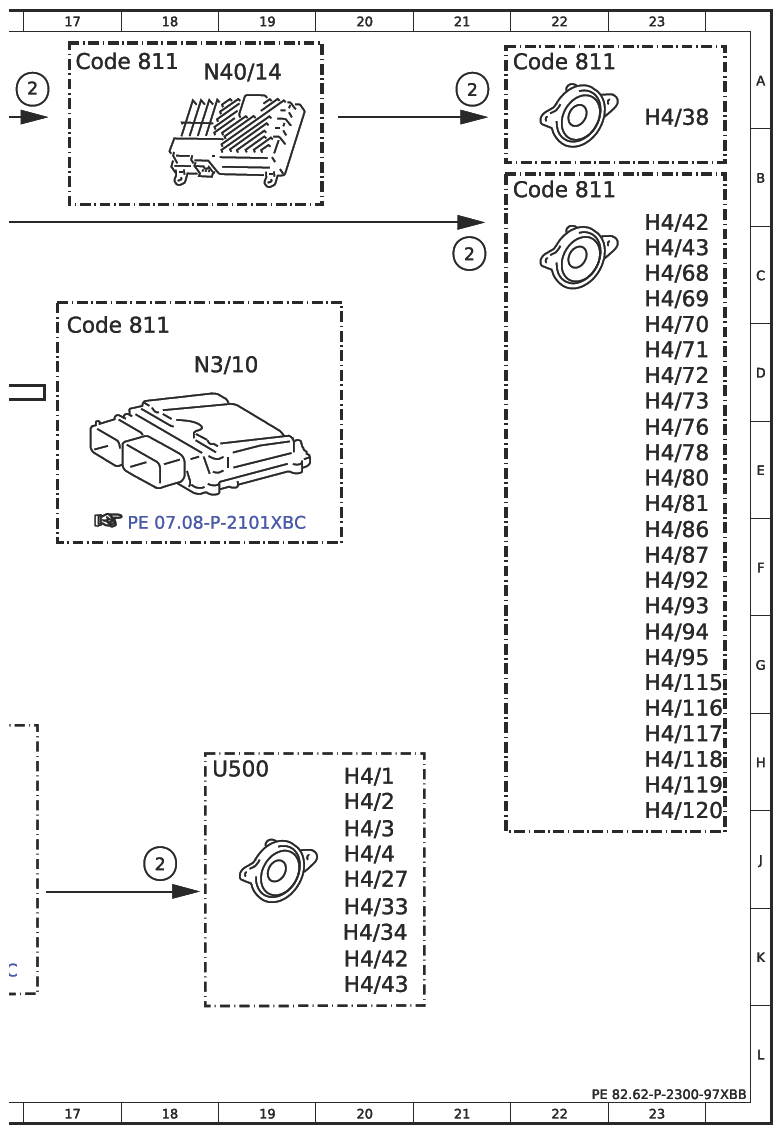

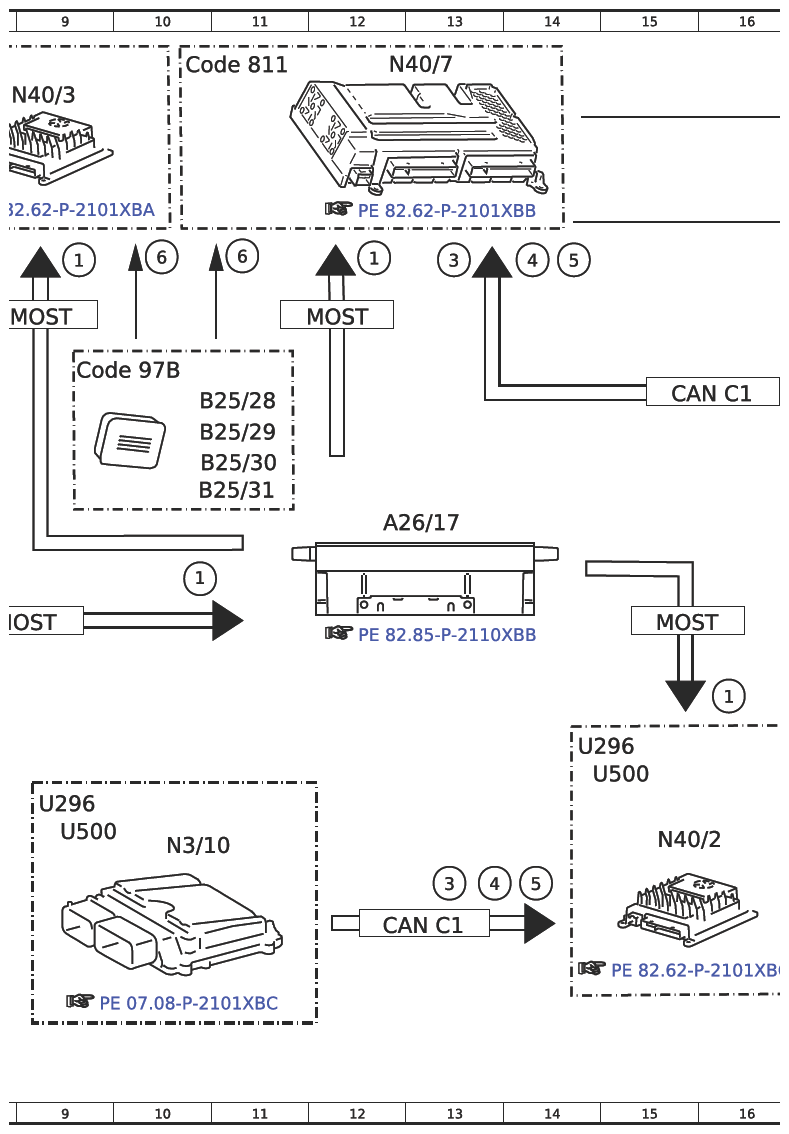

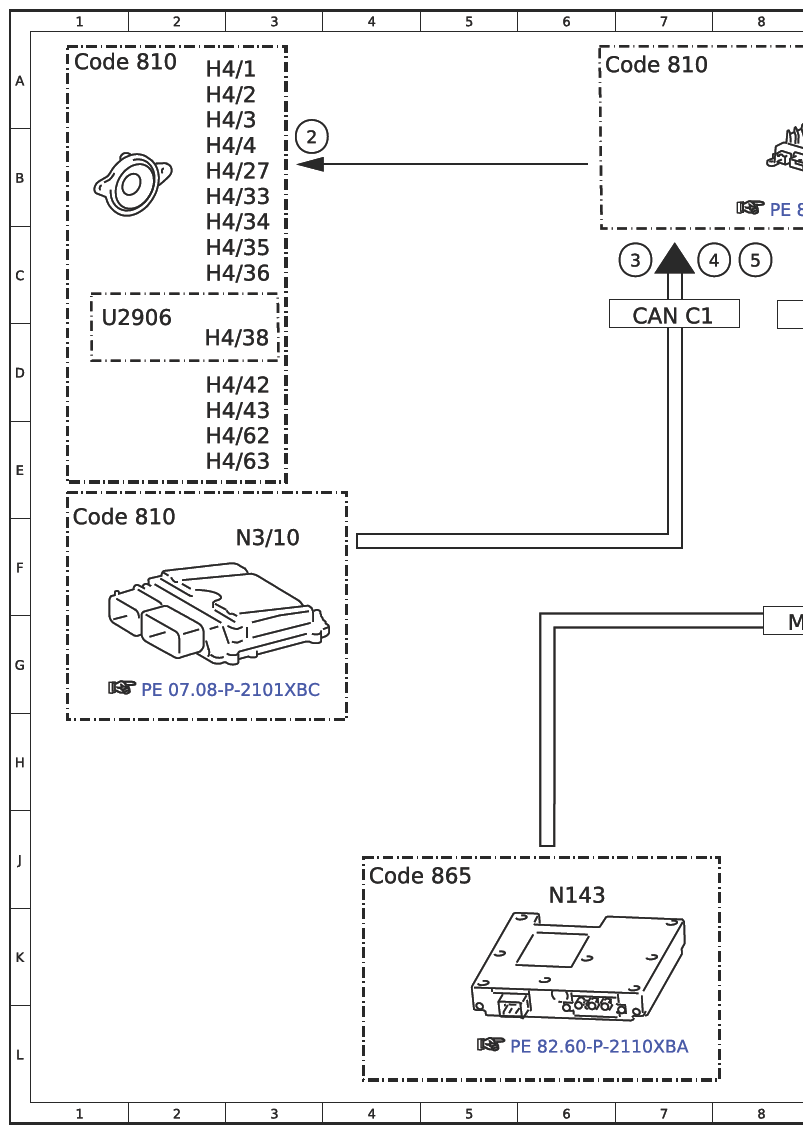

Electrical Function Schematic For Speaker System Function - PE82.62-P-2300-97XBB
Model 290 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Audio, signal | 9C |
| 1 | Audio, signal | 10F |
| 1 | Audio, signal | 16G |
| 1 | Audio, signal | 9C |
| 2 | Speaker, actuation | 3B |
| 2 | Speaker, actuation | 18J |
| 2 | Speaker, actuation | 21C |
| 2 | Speaker, actuation | 21A |
| 2 | Speaker, actuation | 17A |
| 3 | Vehicle speed, signal | 13C |
| 3 | Vehicle speed, signal | 7C |
| 3 | Vehicle speed, signal | 13K |
| 4 | Engine load, signal | 14C |
| 4 | Engine load, signal | 8C |
| 4 | Engine load, signal | 14J |
| 5 | Engine speed, signal | 14C |
| 5 | Engine speed, signal | 8C |
| 5 | Engine speed, signal | 14J |
| 6 | Microphone, signal | 10C |
| 6 | Microphone, signal | 11C |
| A26/17 | Head unit | 13F |
| B25/28 | Left front active engine noise compensation microphone | 11D |
| B25/29 | Right front active engine noise compensation microphone | 11E |
| B25/30 | Left rear active engine noise compensation microphone | 11E |
| B25/31 | Right rear active engine noise compensation microphone | 11E |
| CAN C1 | Drive train CAN | 7C |
| CAN C1 | Drive train CAN | 15D |
| CAN C1 | Drive train CAN | 13K |
| Code 810 | Sound system | 1A |
| Code 810 | Sound system | 6A |
| Code 810 | Sound system | 1F |
| Code 811 | Advanced sound system | 10A |
| Code 811 | Advanced sound system | 22B |
| Code 811 | Advanced sound system | 22A |
| Code 811 | Advanced sound system | 17A |
| Code 811 | Advanced sound system | 17D |
| Code 865 | TV tuner | 4J |
| Code 97B | Engine noise reduction via speaker | 9D |
| H4/1 | Left front door midrange speaker | 20H |
| H4/1 | Left front door midrange speaker | 2A |
| H4/115 | Left front center overhead control panel midrange speaker (3D sound) | 23G |
| H4/116 | Right front center overhead control panel midrange speaker (3D sound) | 23H |
| H4/117 | Left center rear center midrange speaker (3D sound) | 23H |
| H4/118 | Right center rear center midrange speaker (3D sound) | 23H |
| H4/119 | Left center midrange speaker (3D sound) | 23H |
| H4/120 | Right center midrange speaker (3D sound) | 23J |
| H4/2 | Right front door midrange speaker | 20H |
| H4/2 | Right front door midrange speaker | 2A |
| H4/27 | Center instrument panel speaker | 20J |
| H4/27 | Center instrument panel speaker | 2B |
| H4/3 | Left rear door midrange speaker | 20J |
| H4/3 | Left rear door midrange speaker | 2A |
| H4/33 | Left front door tweeter | 20K |
| H4/33 | Left front door tweeter | 2B |
| H4/34 | Right front door tweeter | 2C |
| H4/34 | Right front door tweeter | 20K |
| H4/35 | Left rear door tweeter | 2C |
| H4/36 | Right rear door tweeter | 2C |
| H4/38 | Rear woofer | 23A |
| H4/38 | Rear woofer | 2D |
| H4/4 | Right rear door midrange speaker | 20J |
| H4/4 | Right rear door midrange speaker | 2B |
| H4/42 | Left front footwell woofer | 20K |
| H4/42 | Left front footwell woofer | 2D |
| H4/42 | Left front footwell woofer | 23C |
| H4/43 | Right front footwell woofer | 20K |
| H4/43 | Right front footwell woofer | 2D |
| H4/43 | Right front footwell woofer | 23C |
| H4/62 | Left rear surround sound system midrange speaker | 2E |
| H4/63 | Right rear surround sound system midrange speaker | 2E |
| H4/68 | Left front door sound system tweeter | 23C |
| H4/69 | Right front door sound system tweeter | 23C |
| H4/70 | Left rear door sound system tweeter | 23D |
| H4/71 | Right rear door sound system tweeter | 23D |
| H4/72 | Left front door sound system woofer/midrange speaker | 23D |
| H4/73 | Right front door sound system woofer/midrange speaker | 23D |
| H4/76 | Center instrument panel tweeter | 23E |
| H4/78 | Center instrument panel midrange speaker | 23E |
| H4/80 | Left rear door sound system midrange speaker | 23E |
| H4/81 | Right rear door sound system midrange speaker | 23E |
| H4/86 | Left front door midrange speaker | 23F |
| H4/87 | Right front door midrange speaker | 23F |
| H4/92 | Left rear surround sound system tweeter | 23F |
| H4/93 | Left rear surround sound system midrange speaker | 23F |
| H4/94 | Right rear surround sound system tweeter | 23G |
| H4/95 | Right rear surround sound system midrange speaker | 23G |
| MOST | Media Oriented System Transport | 9D |
| MOST | Media Oriented System Transport | 12D |
| MOST | Media Oriented System Transport | 8G |
| MOST | Media Oriented System Transport | 15G |
| N143 | TV tuner control unit | 6J |
| N3/10 | ME-SFI [ME] control unit | 3F |
| N3/10 | ME-SFI [ME] control unit | 10J |
| N3/10 | ME-SFI [ME] control unit | 18D |
| N40/14 | Rear woofer amplifier | 19A |
| N40/2 | Sound system midline amplifier control unit | 15J |
| N40/3 | Sound system amplifier control unit | 9A |
| N40/7 | Advanced sound system amplifier control unit | 13A |
| U2906 | Valid for model 290.6 | 1D |
| U296 | Not valid for expanded sound system | 9J |
| U296 | Not valid for expanded sound system | 14H |
| U500 | Not valid for sound system | 18H |
| U500 | Not valid for sound system | 9J |
| U500 | Not valid for sound system | 14H |
