Side Damage Seam Sealing Following Repair - Ar97.10-P-4000-03FRX
Model 290
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | Seam seal 300 ml in black or white | A 005 989 63 20 |
When sealing seams we differentiate between:
- smoothing/wiping (A)
- sealing/spreading (B)
Area of front end and A-pillar

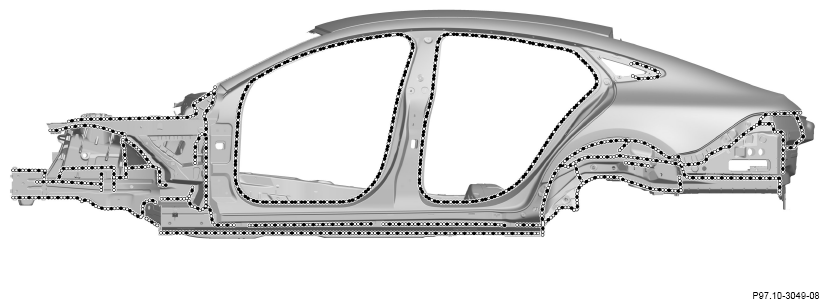

Area of B-pillar, rear fender and longitudinal member

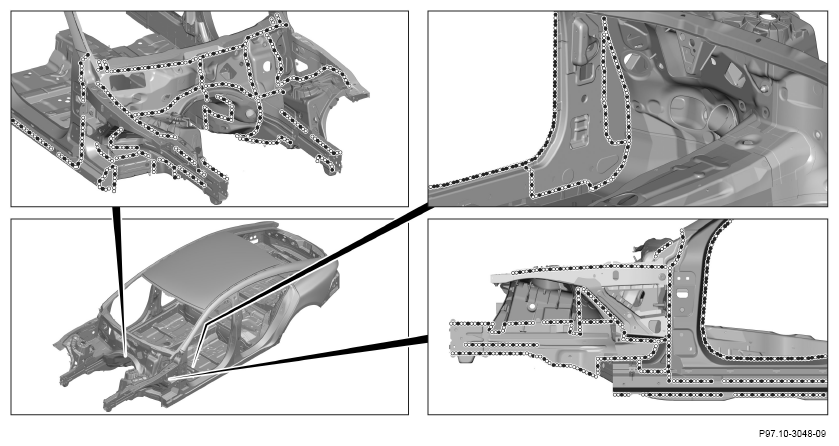

Area of underfloor and wheel well
- Seal connecting flange, spot welds and riveted joints of repaired area with seam sealing material.
Observe standard sealing.
Seal only primed body parts.
Ensure that the threads on the weld nuts and threaded pins as well as the drain openings in the contact surfaces for the axle attachments, pulleys or detachable parts are kept free of seam sealing material.
It is necessary to seal accessible spot weld flanges on both sides.
- Insert stop plugs and grommets with seam sealant material.
