Roof Sealing Seam After Repairing - Ar97.10-P-4000-05FRX
Model 290
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | Seam seal 300 ml in black or white | A 005 989 63 20 |
When sealing seams we differentiate between:
- smoothing/wiping (A)
- sealing/spreading (B)

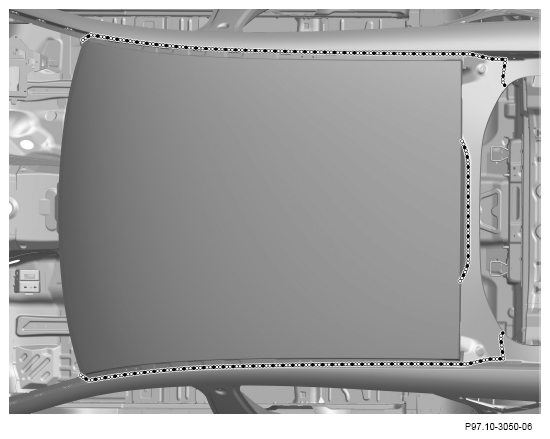

Center roof paneling area shown except code 414 (sliding roof)
- Seal connecting flange, spot welds and riveted joints of repaired area with seam sealing material.
Observe standard sealing.
Seal only primed body parts.
Keep seam sealant material away from windows or detachable parts.
It is necessary to seal accessible spot weld flanges on both sides.
