Rear Diagonal Struts Removal And Installation - Ar61.10-P-5142FRX

Model 290

Courtesy of MERCEDES-BENZ USA

Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Remove/install
1	Remove rear underfloor paneling.		AR61.30-P-1001FR

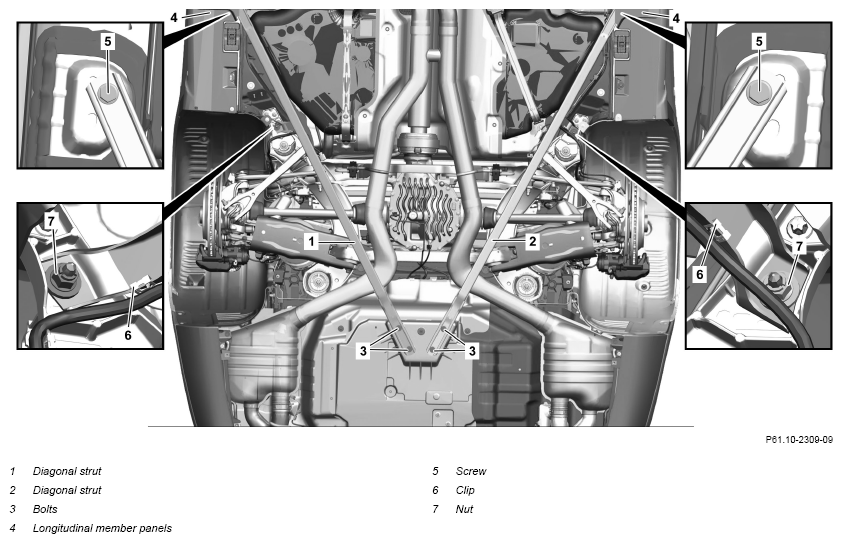

2	Release longitudinal member panels (4) in the area of the diagonal struts (1, 2).		AR88.80-P-6000FR
3	Remove clamp (6) with electrical wiring harness.	If installed.
4	Unscrew nuts (7).	Nut, rear diagonal strut bracket to stop plate	*BA61.10-P-1009-01L
5	Remove screws (3, 5) and remove diagonal struts (1, 2).	Do not use an impact wrench. Otherwise the threads can be damaged. Bolt, rear diagonal strut to spare wheel well/body	*BA61.10-P-1008-01L
6	Install in the reverse order

FRAME FLOOR ASSEMBLY

Number	Designation		Model 290
BA61.10-P-1008-01L	Bolt, rear diagonal strut to spare wheel well/body	Nm	50

FRAME FLOOR ASSEMBLY

Number	Designation			Model 290
BA61.10-P-1009-01L	Nut, rear diagonal strut bracket to stop plate	M10	Nm	50
