B-Pillar Install And Weld In - Ar63.20-P-1350-06FRY

Model 290 with code 397 (Carbon roof)

Model 290 with code 416 (Panoramic sunroof)

Fig 1: Side Portal Frame (210 589 17 23 00)

Courtesy of MERCEDES-BENZ USA

The following operation steps are shown on the left side of the vehicle on model 290 with code 416 (Panoramic roof). In case of damage on the right side of the vehicle, these steps must be performed analogously.

Additional information can be found in the superordinate service document.

The safety information in the superordinate service document must be observed.

1. Install B-pillar reinforcement (2) with the side portal frame and portal straightener and fit.

   Use spacers.

2. Remove B-pillar reinforcement (2) and portal straightener.

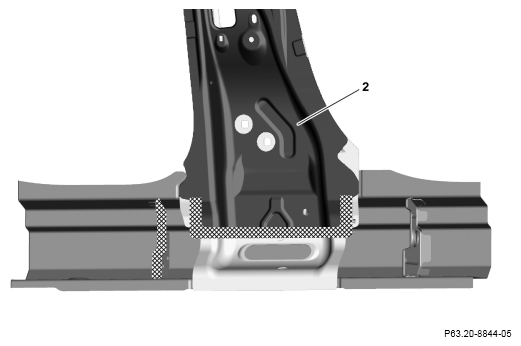

3. Apply sealant to foam parts in crosshatched areas.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

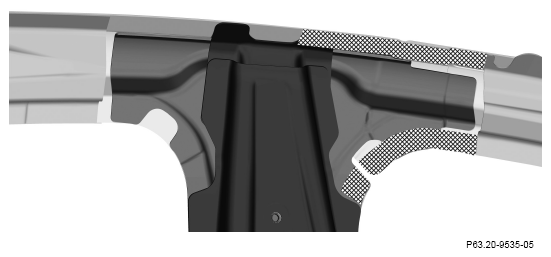

4. Apply 2-component adhesive to body in crosshatched areas.

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

5. Install B-pillar reinforcement (2) with the side portal frame and portal straightener and fix in place.

   Use spacers.

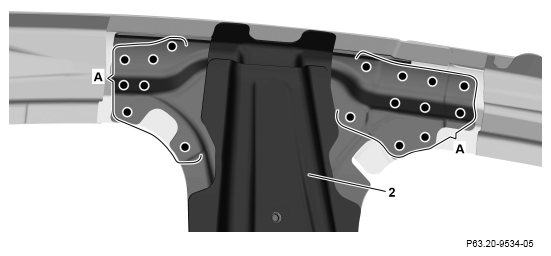

6. B-pillar reinforcement (2) (areas A).

   Courtesy of MERCEDES-BENZ USA

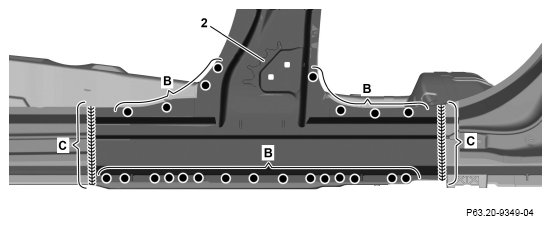

7. B-pillar reinforcement (2) (areas B).
8. Remove side portal frame and portal straightener.
9. B-pillar reinforcement (2) (areas C).

   Inert gas weld in intervals and allow welding area to cool down in between. Reduces heat distortion.

10. Face grind inert gas welds on B Pillar reinforcement (2) (areas C).

    Grind down flat on contact surfaces on B-pillar paneling and beaded area only.

11. Clean weld joints no longer accessible after installing A-pillar reinforcement and coat with zinc dust paint.

    Courtesy of MERCEDES-BENZ USA

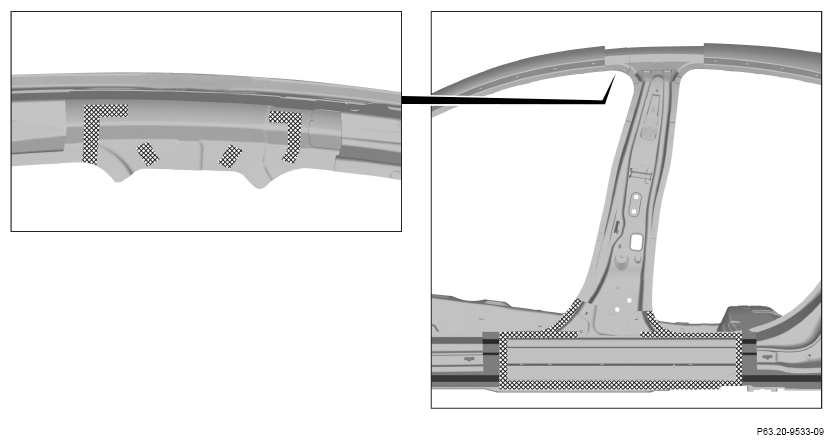

12. Apply 2-component adhesive to body in crosshatched areas.

    Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

    Courtesy of MERCEDES-BENZ USA

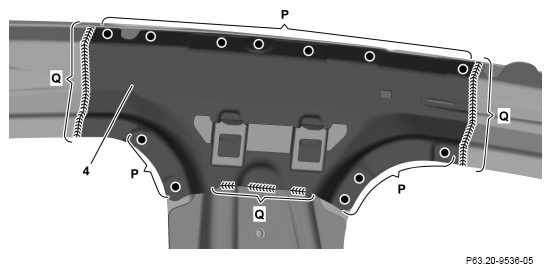

13. Install inner roof frame (4), fit, and fix in place.
14. Inner roof frame (4) (areas P).
15. Inner roof frame (4) (areas Q).

    Inert gas weld in intervals and allow welding area to cool down in between. Reduces heat distortion.

16. Face grind inert gas welds on inner roof frame (4) in the beaded areas (areas Q).

    Courtesy of MERCEDES-BENZ USA

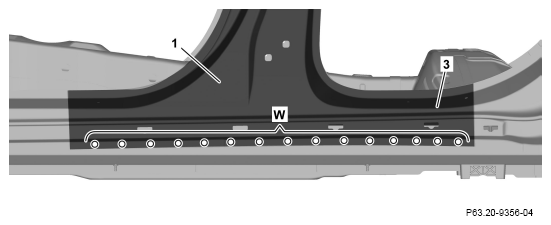

17. Install B-pillar paneling (1) and longitudinal member paneling (3), fit and fix in place.
18. Drill rivet holes on B-pillar paneling (1) and longitudinal member paneling (3) with 6.7 mm bit (area W).
19. Remove B-pillar paneling (1) and longitudinal member paneling (3).
20. Deburr rivet holes on B-pillar paneling (1), longitudinal member paneling (3) and body on both sides.
21. Remove drilling chips.
22. Coat insides of riveted joints with zinc dust paint.

    Courtesy of MERCEDES-BENZ USA

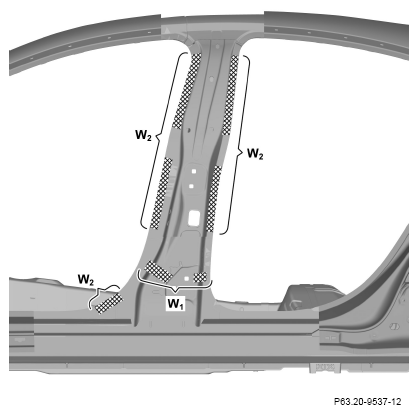

23. Apply sealant to the foam parts in the cross-hatched areas (area W₁ ).
24. Apply 2-component adhesive to the body in the cross-hatched areas (areas W₂ ).

    Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

    Courtesy of MERCEDES-BENZ USA

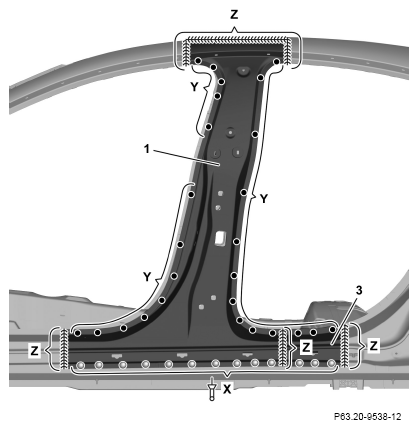

25. Install B-pillar paneling (1) and longitudinal member paneling (3) and fix in place.
26. Rivet B-pillar trim (1) and longitudinal member paneling (3) with rivets ø 6.4x12 (area X).
27. B-pillar paneling (1) and longitudinal member paneling (3) (areas Y).
28. B-pillar paneling (1) and longitudinal member paneling (3) (areas Z).

    Inert gas weld in intervals and allow welding area to cool down in between. Reduces heat distortion.

29. Sand inert gas welds down flat (areas Z).
30. Solder surfaces on B-pillar paneling (1) and longitudinal member paneling (3) with body solder and smooth (areas Z).

    A basic body filler can also be used as an alternative to the restoration of the surfaces with body solder.

    Courtesy of MERCEDES-BENZ USA
